Article number Select a color, please

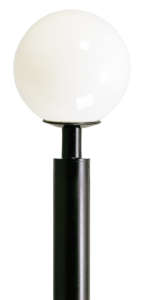

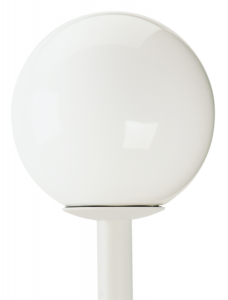

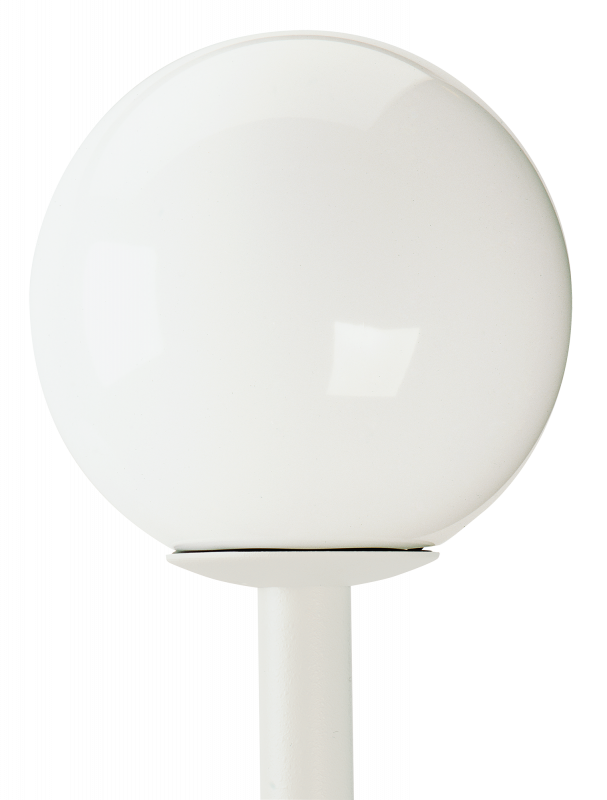

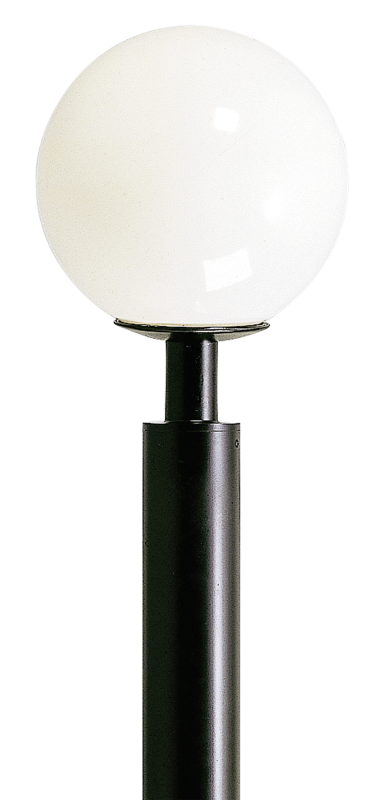

Spherical top light

type ..0854

332,30335,60

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
1 - 150 W
Material cover
Plastic, opal
Suitable for spigot size
60 mm
Recommendations

This product is suitable for light poles with a pole top end diameter of 60mm.

Documents and files
Assembly instruction

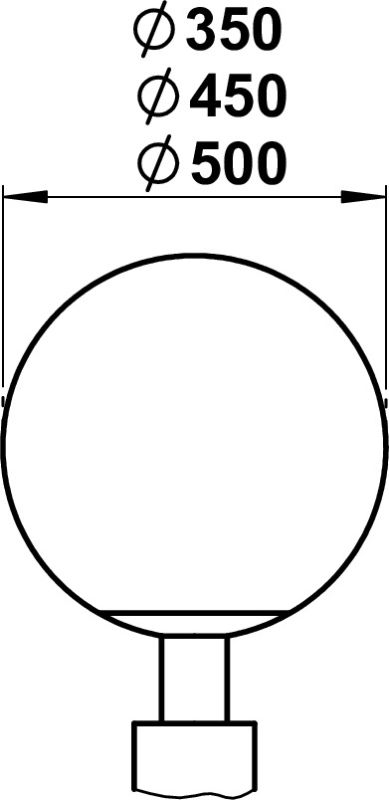

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 660854
Offertext
For: 680854
Full catalog 21 / 22
Spare parts
90260075 - G 75, sphere, opal, d = 450 mm PE show
Accessories
661015 - Pole attachment 2-fold type ..1015
Für: 660854
show
661016 - Pole attachment 3-fold type ..1016
Für: 660854
show
661017 - Pole attachment 4-fold type ..1017
Für: 660854
show
681015 - Pole attachment 2-fold type ..1015
Für: 680854
show
681016 - Pole attachment 3-fold type ..1016
Für: 680854
show
681017 - Pole attachment 4-fold type ..1017
Für: 680854
show
690012 - Aluminium mast type ..0012 show
690013 - Aluminium mast type ..0013 show
690014 - Aluminium mast type ..0014 show
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Mounting Type

Post top

Dimming phase cut-off

Yes

Voltage type

AC

Material cover

Plastic, opal

Colour housing

Black, White

Surface protection

Lacquered

Material housing

Aluminium

Lamp holder

E27

Nominal voltage

230 V

Lamp type

HV halogen lamp

Dimming phase cut-on

Yes

Suitable for number of lamps

1

Height/depth

450 mm

Type of control gear

Not required

Connection type

Screwed terminal

Shape

Eckig

Light type

Mastaufsatzleuchte

Cable length

0 m

Suitable for lamp power

1 – 150 W

Max. system power

150 W

Power factor

1

Degree of protection (IP)

IP44

Diameter

450 mm

Protection class

I

Number of poles

3

Type of wiring

Suitable for through wiring

Conductor cross section

2.5 mm²

Highest energy efficiency class of the exchangeable lamp

A++

No dim function

Yes

Lowest energy efficiency class of the exchangeable lamp

E

Height

< 700 mm

Suitable for spigot size

60 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
