Data sheet

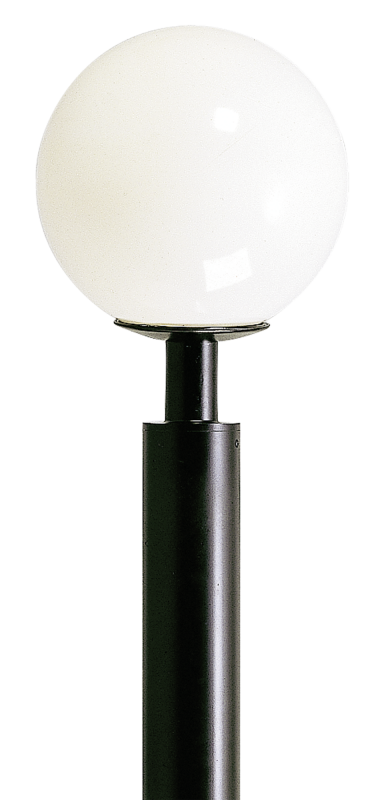

Spherical top light Black Product Image Article 660858
Article number Select a color, please

Spherical top light

type ..0858

€453,60 – €458,00

Manufacturer's Suggested Retail Price excl. VAT

Find Retailer

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
1 - 150 W
Material cover
Plastic, opal
Pole included
Nein, No
Suitable for spigot size
60 mm
Recommendations

This product is suitable for light poles with a pole top end diameter of 60mm.

Find suitable light poles now
Spare parts
90260076 - G76, sphere, opal, d = 500 mm PE show
Accessories
661015 - Pole attachment 2-fold type ..1015
Für: 660858
show
661016 - Pole attachment 3-fold type ..1016
Für: 660858
show
681015 - Pole attachment 2-fold type ..1015
Für: 680858
show
681016 - Pole attachment 3-fold type ..1016
Für: 680858
show
690012 - Aluminium mast type ..0012 show
690013 - Aluminium mast type ..0013 show
690014 - Aluminium mast type ..0014 show
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Mounting Type

Post top
Dimming phase cut-off

Yes
Voltage type

AC
Material cover

Plastic, opal
Colour housing

Black, White
Surface protection

Lacquered
Material housing

Aluminium
Lamp holder

E27
Nominal voltage

230 V
Lamp type

HV halogen lamp
Dimming phase cut-on

Yes
Suitable for number of lamps

1
Height/depth

500 mm
Type of control gear

Not required
Connection type

Screwed terminal
Shape

Angular, Eckig
Light type

Mastaufsatzleuchte
Cable length

0 m
Suitable for lamp power

1 – 150 W
Max. system power

150 W
Power factor

1
Degree of protection (IP)

IP44

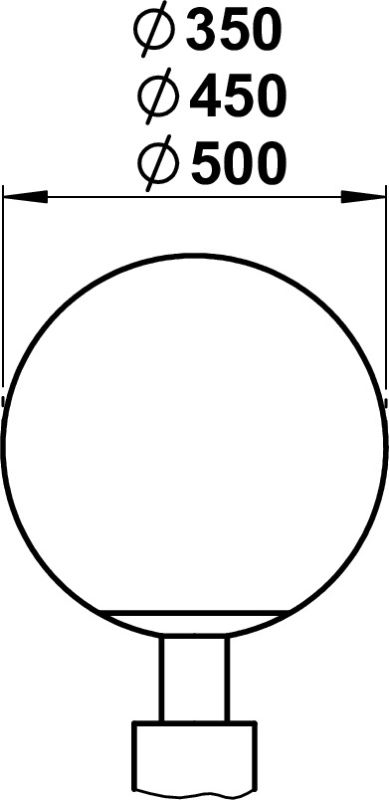

Diameter

500 mm
Protection class

I
Number of poles

3
Type of wiring

Suitable for through wiring
Conductor cross section

2.5 mm²
Highest energy efficiency class of the exchangeable lamp

A++
No dim function

Yes
Lowest energy efficiency class of the exchangeable lamp

E
Height

< 700 mm
Suitable for spigot size

60 mm
Pole included

Nein, No
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
