Data sheet
Article number Select a color, please

Spit lamp

type ..2123

€134,00

Manufacturer's Suggested Retail Price excl. VAT

Find Retailer

Clear
Features
Rotatable lamp Product-Icon The luminaire body can be rotated.
The luminaire body can be rotated.
Reflector lamp replaceable Product-Icon The reflector lamp is replaceable.
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
120 W
Material cover
Glass transparent
Documents and files
Assembly instruction
download PDF 73.03 KB

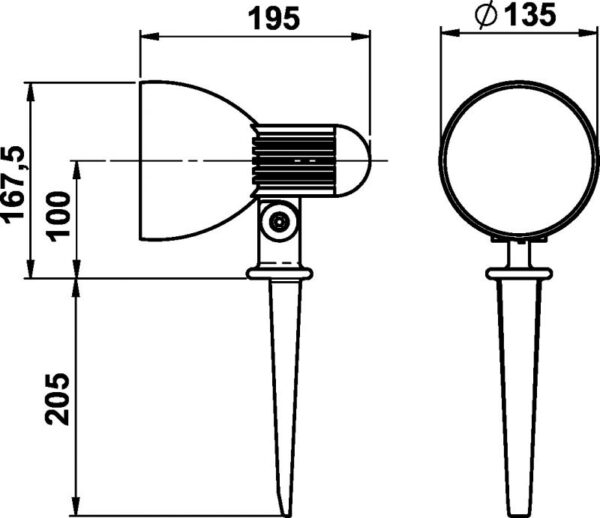

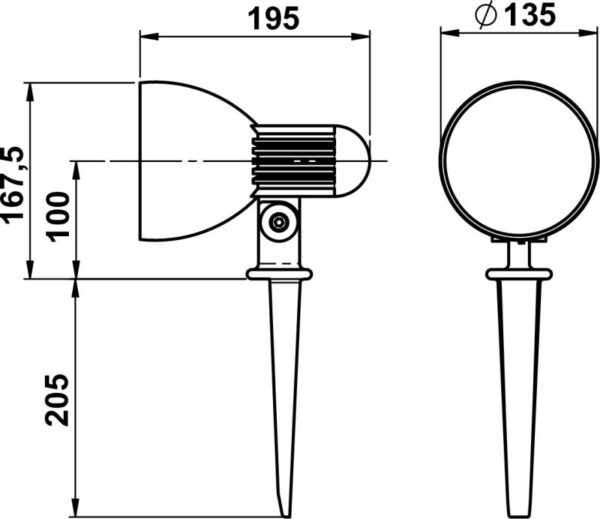

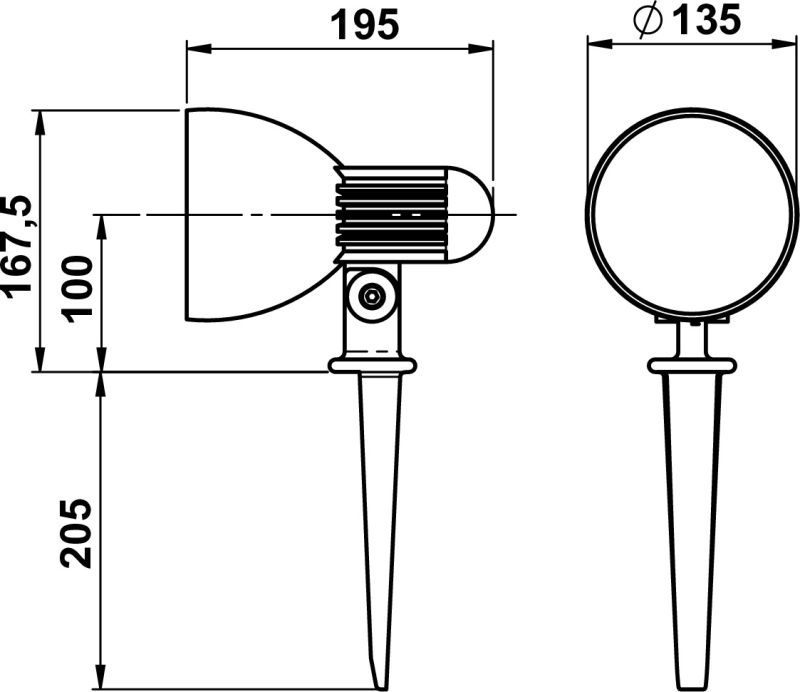

Dimensioned drawing
download PDF 95.01 KB
Light distribution curve
download LDT 2.18 KB
Offertext
For: 662123
download TXT 320 B
Offertext
For: 682123
download TXT 285 B
Full catalog 21 / 22
download PDF 38.74 MB
Accessories
90750107 - LED PAR 38 show

Additional information

Weight N/A
Height/depth

167.5 mm
Adjustability

Rotating and swivelling
Colour housing

Black, White
Material housing

Aluminium
Suitable for number of lamps

1
Suitable for pedestal/floor mounting

Yes
Surface protection

Lacquered
Beam angle

Medium beam 21-40°
Light output

Direct
Voltage type

AC
Dimming depending on control gear

Yes
Material cover

Glass transparent
Lamp type

HV halogen lamp
Type of control gear

Not required
Lamp holder

E27
Dimming phase cut-off

Yes
Power factor

1
Nominal voltage

230 V
Protection class

I
Outer diameter

135 mm
Suitable for lamp power

120 W
Type of wiring

Ending
Light sharing

Symmetric
Degree of protection (IP)

IP54
Length

195 mm
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Max. system power

120 W
Conductor cross section

0 mm²
Number of poles

3
Connectable conductor cross section

0 mm²
No dim function

Yes
Luminous flux

0 – 3000 lm
Shape

Angular, Eckig
Mounting Type

Spieß
Light output

1-seitig
Height

< 700 mm
Beam angle adjustable

Continuously variable
Unified Glare Ratio (UGR)

1
