Data sheet
Article number 690205
Wall light
type ..0205
€234,80
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

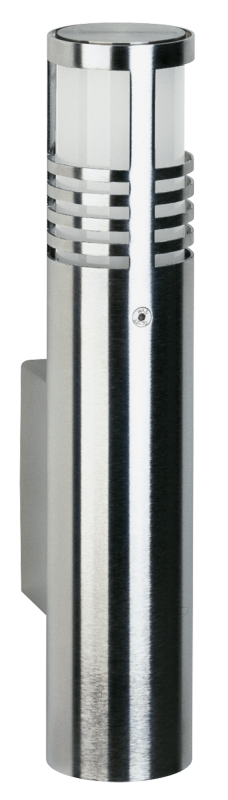

Albert wall lamp 690205
made of stainless steel, with borosilicate glass and mounting plate for 1 mains voltage halogen lamp QT 14 40 Watt, socket G9.protection class IP 44 – protection class : d 60 x 300 x 90 mm
Features
Luminaire has IP 44 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
HV halogen lamp
Lamp holder
G9
Suitable for lamp power
1 - 40 W
Material cover
Glass structured
Documents and files
Assembly instruction

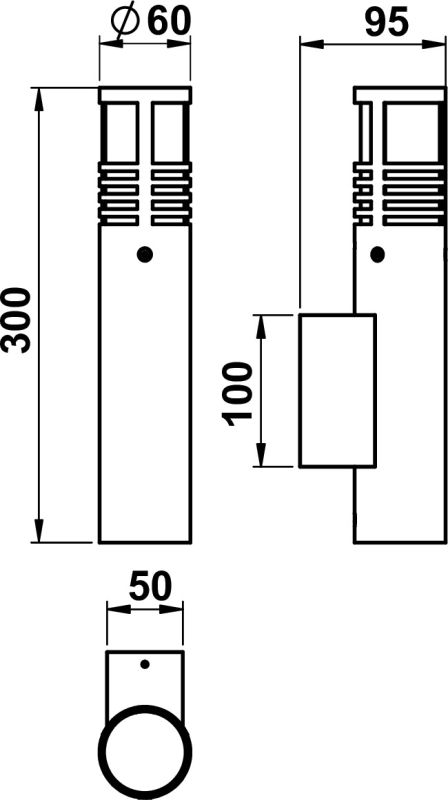

Dimensioned drawing
Full catalog 21 / 22
Additional information
| Weight | 1,20 kg |
|---|---|
| Max. system power | 40 W |
| Lamp type | HV halogen lamp |
| Lamp holder | G9 |
| Material housing | Stainless steel |
| Colour housing | Stainless steel |
| Material cover | Glass structured |
| Voltage type | AC |
| Type of control gear | Not required |
| Protection class | I |
| Suitable for number of lamps | 1 |
| Width | 60 mm |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Suitable for surface mounting | Yes |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Height/depth | 300 mm |
| Light sharing | Symmetric |
| Nominal voltage | 230 V |
| Type of wiring | Ending |
| Style | Edelstahl, Modern |
| Mounting Type | Wand |
| Length | 95 mm |
| Light type | Wandleuchte |
| Outer diameter | 60 mm |
| Suitable for wall mounting | Yes |
| Connection type | Screwed terminal |
| Dimming depending on control gear | Yes |
| No dim function | Yes |
| Unified Glare Ratio (UGR) | 1 |
| Surface protection housing | Untreated |
| Suitable for lamp power | 1 – 40 W |
| Beam angle | Open beam/diffuse |
| Conductor cross section | 2.5 mm² |
| Number of poles | 3 |
| Light output | Direct |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Degree of protection (IP) | IP44 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Power factor | 1 |
| Height | < 700 mm |
| Light output | 1-seitig |
| Photobiological safety according to EN 62471 | RG1 |
| Shape | Eckig |
