Data sheet
Article number
Select a color, please

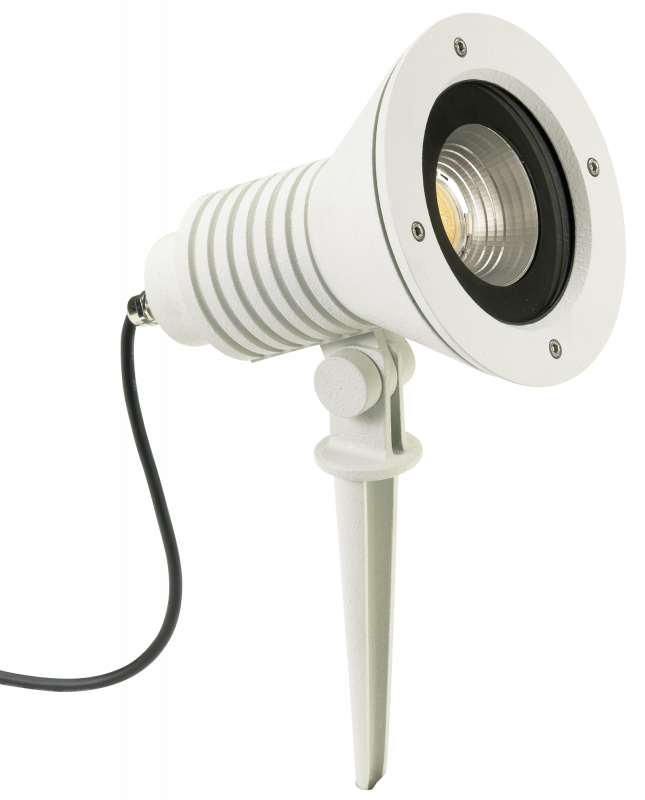

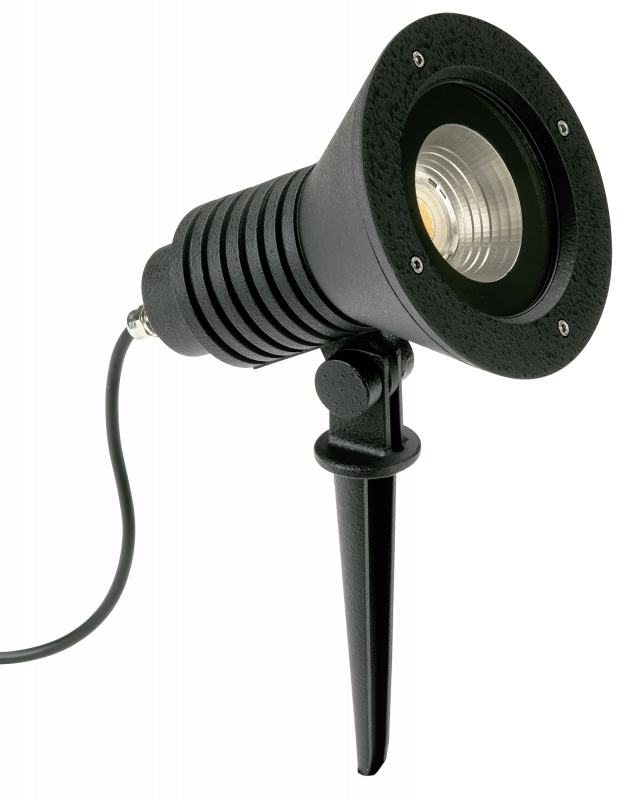

Spit lamp
type ..2383
€408,30 – €469,30
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
The luminaire body can be rotated.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
32 W
Rated luminous flux according to IEC 62722-2-1
4480 lm
Colour temperature
3000 K
Material cover
Glass transparent
| Weight | N/A |
|---|---|
| Number of poles | 3 |
| Light distributor | Reflector |
| Colour of light | White |
| Type of wiring | Ending |

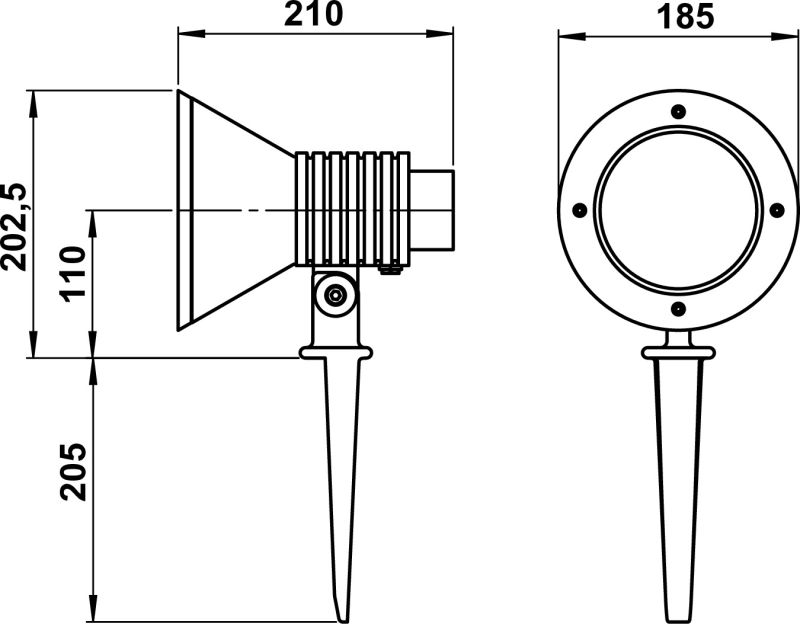

| Height/depth | 202.5 mm |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Luminous flux | 4480 lm |
| Light outlet | Direct |
| Max. system power | 32 W |
| Colour rendering index CRI | 80-89 |
| Length | 210 mm |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Conductor cross section | 0 mm² |
| Connectable conductor cross section | 0 mm² |
| Unified Glare Ratio (UGR) | 1 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Stroboscope effect value SVM | 0.4 |
| Beam angle adjustable | Continuously variable |
| Power factor | 0.9 |
| Flickering value Pst LM | 1 |
| Exchangeable control gear | Yes |
| Height | < 700 mm |
| Light outlet | 1-seitig |
| Mounting method | Spieß |
| Shape | Eckig |
| No dim function | Yes |
| Surface protection | Lacquered |
| Adjustability | Rotating and swivelling |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Suitable for number of lamps | 1 |
| Degree of protection (IP) | IP54 |
| With control gear | Yes |
| Suitable for pedestal/floor mounting | Yes |
| Voltage type | AC |
| Beam angle | Medium beam 21-40° |
| Light sharing | Symmetric |
| Outer diameter | 185 mm |
| Protection class | I |
| Dimming phase cut-off | Yes |
| Type of control gear | LED operating device voltage-controlled |
| Nominal voltage | 230 V |
| Style | Landhaus |
Documents and files
Spare parts
| 90220338 - G 338, single-pane safety glass | show |
Additional information
| Weight | N/A |
|---|---|
| Number of poles | 3 |
| Light distributor | Reflector |
| Colour of light | White |
| Type of wiring | Ending |
| Height/depth | 202.5 mm |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Luminous flux | 4480 lm |
| Light outlet | Direct |
| Max. system power | 32 W |
| Colour rendering index CRI | 80-89 |
| Length | 210 mm |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Conductor cross section | 0 mm² |
| Connectable conductor cross section | 0 mm² |
| Unified Glare Ratio (UGR) | 1 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Stroboscope effect value SVM | 0.4 |
| Beam angle adjustable | Continuously variable |
| Power factor | 0.9 |
| Flickering value Pst LM | 1 |
| Exchangeable control gear | Yes |
| Height | < 700 mm |
| Light outlet | 1-seitig |
| Mounting method | Spieß |
| Shape | Eckig |
| No dim function | Yes |
| Surface protection | Lacquered |
| Adjustability | Rotating and swivelling |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Suitable for number of lamps | 1 |
| Degree of protection (IP) | IP54 |
| With control gear | Yes |
| Suitable for pedestal/floor mounting | Yes |
| Voltage type | AC |
| Beam angle | Medium beam 21-40° |
| Light sharing | Symmetric |
| Outer diameter | 185 mm |
| Protection class | I |
| Dimming phase cut-off | Yes |
| Type of control gear | LED operating device voltage-controlled |
| Nominal voltage | 230 V |
| Style | Landhaus |
