Article number Select a color, please

Wall lamp

type ..6144

242,70269,50

Clear
Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium, Stainless steel
Colour housing
Anthracite, Stainless steel
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Length

95 mm

Type of wiring

Ending

Dimming phase cut-off

Yes

Power factor

1

Width

200 mm

Suitable for number of lamps

1

Dimming manufacturer's proprietary system

Yes

Voltage type

AC

Type of control gear

Not required

Dimming phase cut-on

Yes

Nominal voltage

230 V

Dimming depending on control gear

Yes

Suitable for surface mounting

Yes

Beam angle

Open beam/diffuse

Light output

Direct

Height/depth

355 mm

Light type

Wandleuchte

Style

Bicolor, Edelstahl, Modern

Surface protection housing

Untreated

Protection class

I

No dim function

Yes

Light sharing

Symmetric

Number of poles

3

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Connection type

Screwed terminal

Coverage

360 °

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Height

< 700 mm

Highest energy efficiency class of the exchangeable lamp

A++

Light output

1-seitig

Conductor cross section

2.5 mm²

Mounting Type

Wand

Unified Glare Ratio (UGR)

1

Shape

Eckig

Max. system power

75 W

Photobiological safety according to EN 62471

RG1

Documents and files
Data sheet
Assembly instruction
PDF | 32 KB

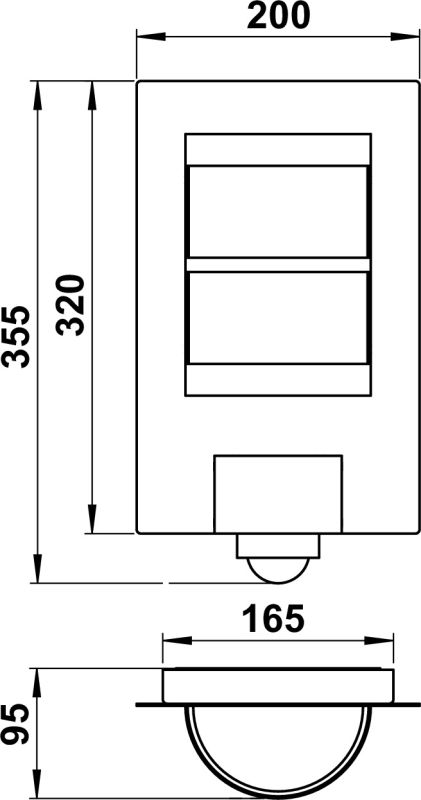

Dimensioned drawing
PDF | 92 KB
Instruction manual
PDF | 210 KB
Light distribution curve - Eulumdat/LDT
LDT | 3 KB
Offertext
For: 626144
TXT | 300 B
Offertext
For: 696144
TXT | 242 B
Full catalog 21 / 22
For: 626144
PDF | 39 MB
Full catalog 21 / 22
For: 696144
PDF | 39 MB
Spare parts
90210107 - G 107, opal glass show
Accessories
90750100 - LED Retrofit Classic show
