Article number Select a color, please

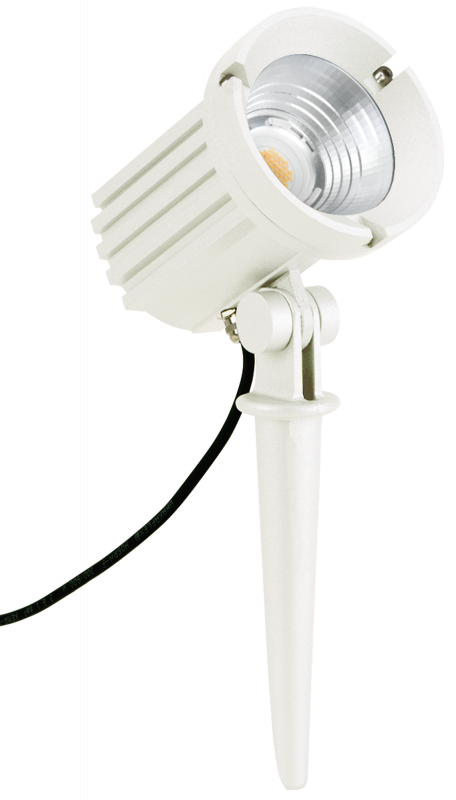

Spit lamp

type ..2421

This product is no longer in our assortment.

Nicht lieferbar

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Rotatable lamp Product-Icon The luminaire body can be rotated.
The luminaire body can be rotated.
Material housing
Aluminium
Colour housing

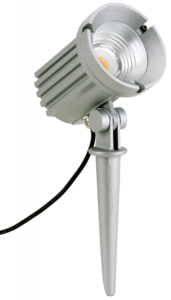

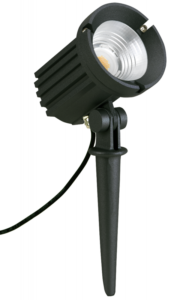

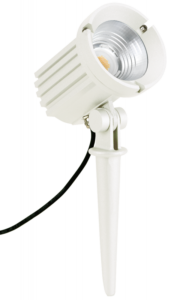

Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
12 W, 16 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

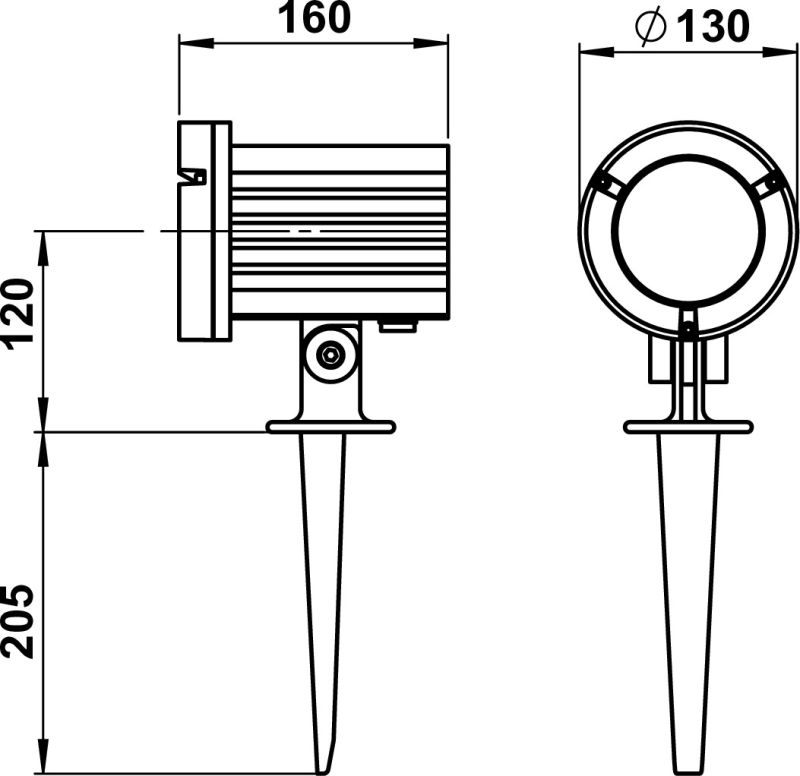

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
For: 662421
Light distribution curve - Eulumdat/LDT
For: 682421, 692421
Offertext
For: 662421
Offertext
For: 682421
Offertext
For: 692421
Full catalog 21 / 22
Spare parts
90220111 - G 111, ESG glass show

Additional information

Weight N/A
Lamp type

LED exchangeable

Type of control gear

LED operating device voltage-controlled

Suitable for lamp power

12 W, 16 W

Reflector

High-gloss

Material cover

Glass transparent

Adjustability

Rotating and swivelling

Light distributor

Reflector

With control gear

Yes

Colour rendering index CRI

80-89

Outer diameter

130 mm

Material housing

Aluminium

Surface protection

Lacquered

Nominal voltage

230 V

Colour housing

Black, Silver, White

Dimming phase cut-off

Yes

Suitable for pedestal/floor mounting

Yes

Degree of protection (IP)

IP54

Max. system power

12 W, 16 W

Light sharing

Symmetric

No dim function

Yes

Voltage type

AC

With light source

Yes

Suitable for number of lamps

1

Number of poles

3

Light output

Direct

Protection class

I

Rated luminous flux according to IEC 62722-2-1

1200 lm

Length

160 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Colour consistency (McAdam ellipse)

SDCM3

Power factor

0.9

Conductor cross section

0 mm²

Connectable conductor cross section

0 mm²

Height/depth

120 mm

Luminous flux

1200 lm

Type of wiring

Ending

Colour of light

White

Beam angle

Medium beam 21-40°

Energy efficiency class of the provided exchangeable built-in lamp

E

Mounting Type

Spieß

Light output

1-seitig

Height

< 700 mm

Exchangeable control gear

Yes

Flickering value Pst LM

1

Colour temperature

3000 K

Beam angle adjustable

Continuously variable

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Unified Glare Ratio (UGR)

1

Shape

Eckig
