Data sheet

Article number

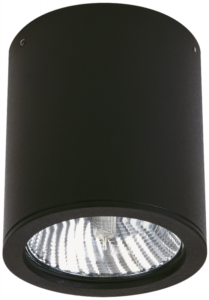

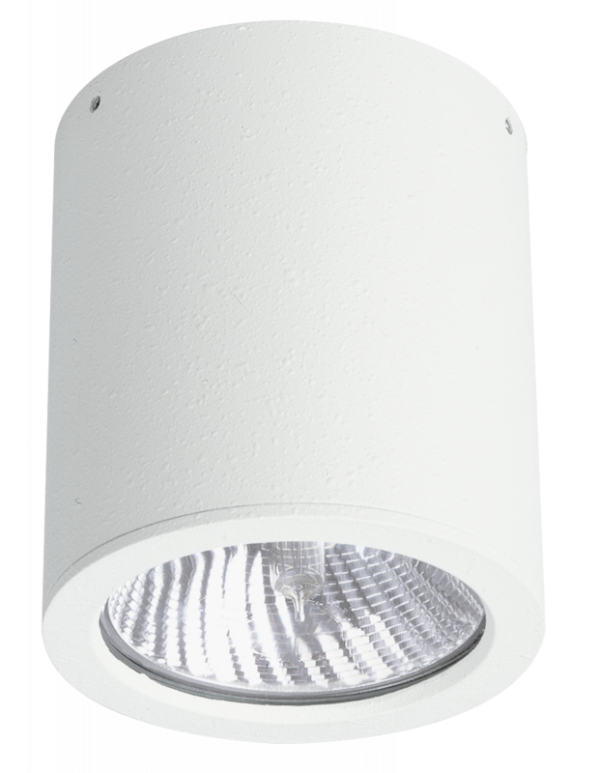

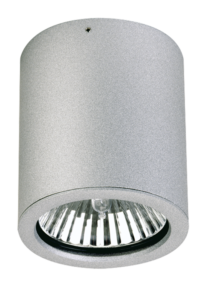

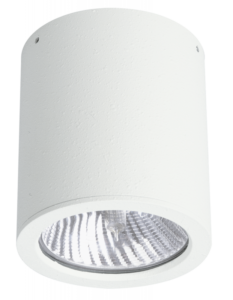

Surface mounted ceiling spotlight

Name: Surface mounted ceiling spotlight type ..2130
SKU: TYPE-2130-6-2-2130
Availability: InStock

type ..2130

€119,50 – €137,60

Manufacturer's Suggested Retail Price excl. VAT

Colour housing	Clear

Features

Luminaire has IP 44 protection.

The reflector lamp is replaceable.

Material housing

Aluminium

Colour housing

Black, Silver, White

Lamp type

HV halogen lamp

Lamp holder

E27

Suitable for lamp power

75 W

Material cover

Glass transparent

Documents and files

Assembly instruction

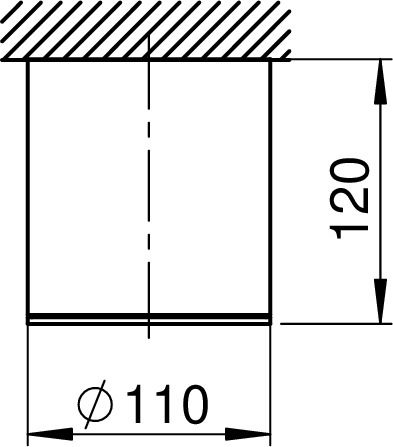

Dimensioned drawing

Light distribution curve

Offertext

For: 662130

Offertext

For: 682130

Offertext

For: 692130

Full catalog 21 / 22

Accessories

90750106 - LED PAR 30 show

Weight	N/A
Suitable for surface mounting	Yes
Type of control gear	Not required
Material cover	Glass transparent
Colour housing	Black, Silver, White
Material housing	Aluminium
Adjustability	Not adjustable
Luminous flux	0 – 3000 lm
Nominal voltage	230 V
Lamp type	HV halogen lamp
Lamp holder	E27
Suitable for pedestal/floor mounting	Yes
Voltage type	AC
Height/depth	125 mm
Suitable for lamp power	75 W
Surface protection	Lacquered
Suitable for number of lamps	1
Dimming depending on control gear	Yes
Dimming phase cut-off	Yes
Suitable for ceiling mounting	Yes
Light output	1-seitig
Shape	Angular, Eckig
Rated ambient temperature according to IEC62722-2-1	15 – 25 °C
Light output	Direct
Degree of protection (IP)	IP44
Beam angle	Medium beam 21-40°
Connection type	Screwed terminal
Outer diameter	110 mm
Max. system power	75 W
No dim function	Yes
Conductor cross section	2.5 mm²
Light sharing	Symmetric
Connectable conductor cross section	0.75 – 2.5 mm²
Number of poles	3
Mounting Type	Decke
Type of wiring	Ending
Power factor	1
Height	< 700 mm
Protection class	I
Unified Glare Ratio (UGR)	1
Style	Country House
