Article number Select a color, please

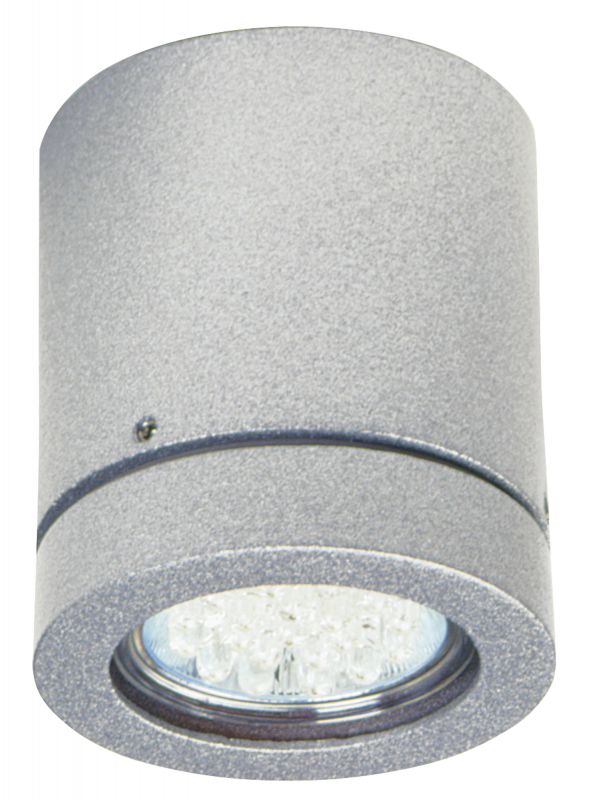

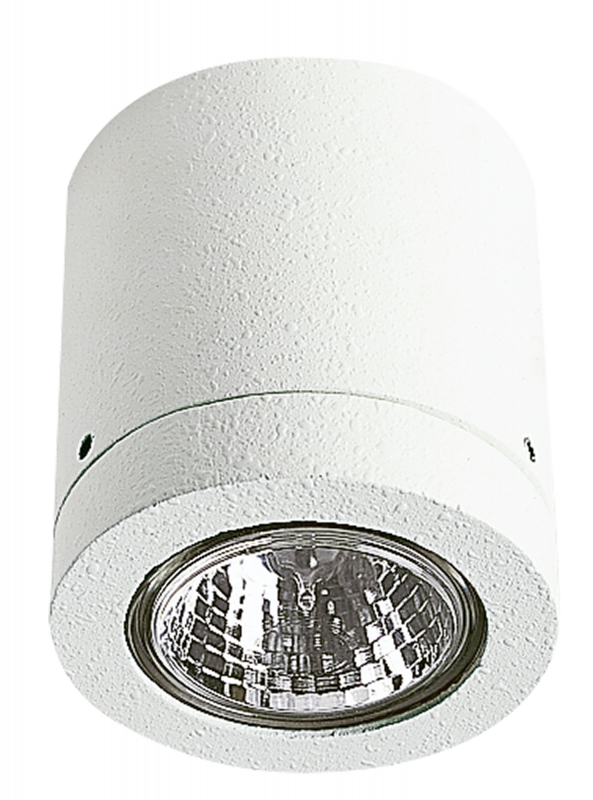

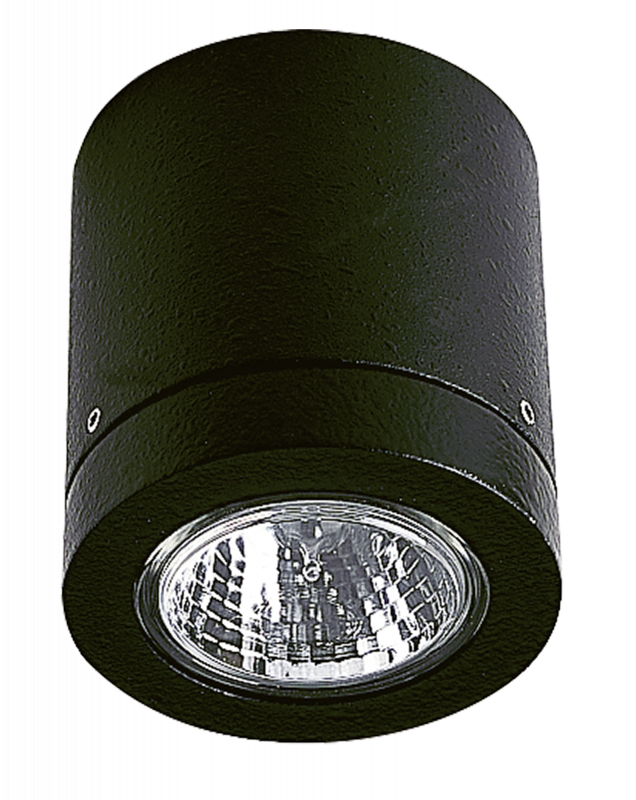

Surface mounted ceiling spotlight

type ..2140

119,80137,80

Clear
Features
IP23 Product-Icon Luminaire has IP 23 protection.
Luminaire has IP 23 protection.
Reflector lamp replaceable Product-Icon The reflector lamp is replaceable.
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
HV halogen lamp
Lamp holder
GU10
Suitable for lamp power
50 W
Material cover
Glass transparent
Weight N/A
Suitable for surface mounting

Yes

No dim function

Yes

Height/depth

80 mm

Suitable for ceiling mounting

Yes

Suitable for pedestal/floor mounting

Yes

Dimming depending on control gear

Yes

Adjustability

Not adjustable

Suitable for number of lamps

1

Dimming phase cut-off

Yes

Surface protection

Lacquered

Voltage type

AC

Nominal voltage

230 V

Type of control gear

Not required

Connection type

Screwed terminal

Number of poles

3

Outer diameter

70 mm

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Light output

Direct

Beam angle

Medium beam 21-40°

Luminous flux

0 – 3000 lm

Mounting Type

Decke

Light output

1-seitig

Max. system power

50 W

Light sharing

Symmetric

Conductor cross section

2.5 mm²

Degree of protection (IP)

IP23

Type of wiring

Ending

Power factor

1

Height

< 700 mm

Connectable conductor cross section

0.75 – 2.5 mm²

Unified Glare Ratio (UGR)

1

Shape

Eckig

Style

Landhaus

Documents and files
Data sheet
Assembly instruction
PDF | 28 KB

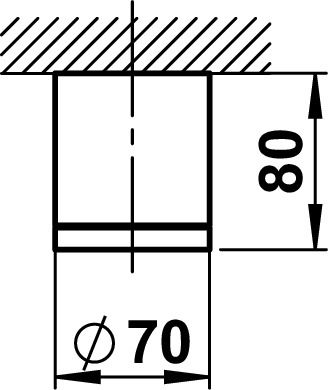

Dimensioned drawing
PDF | 34 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Offertext
For: 662140
TXT | 212 B
Offertext
For: 682140
TXT | 212 B
Offertext
For: 692140
TXT | 221 B
Full catalog 21 / 22
PDF | 39 MB
