Data sheet
Article number
Select a color, please

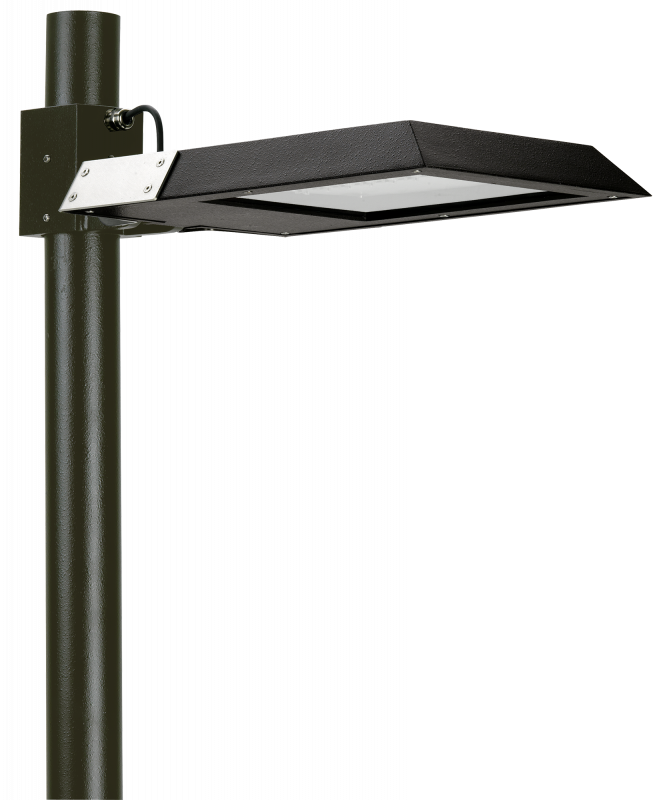

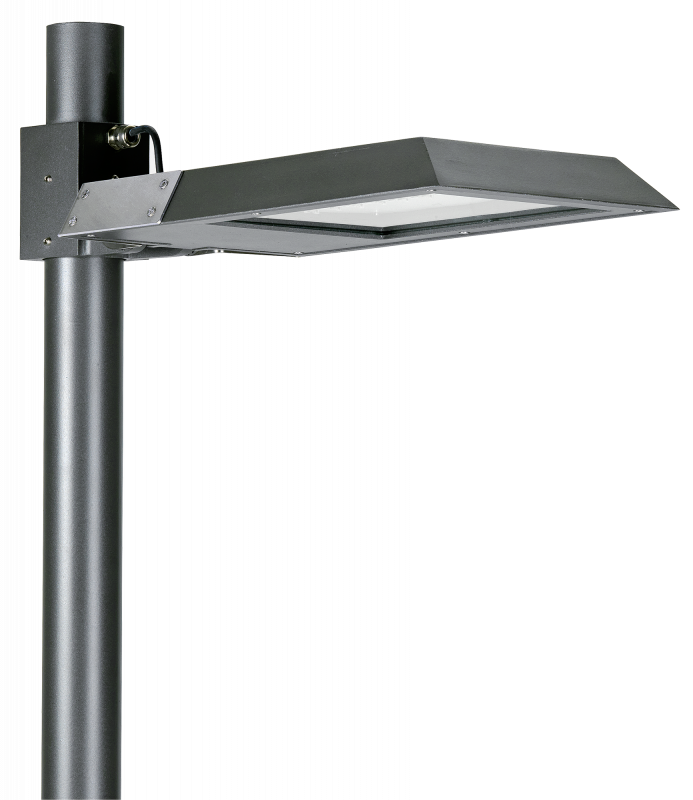

Vario post-top luminaire
type ..0880
€921,00
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 65 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
58 W
Rated luminous flux according to IEC 62722-2-1
3800 lm
Colour temperature
3000 K
Material cover
Glass transparent
Suitable for spigot size
76 mm
| Weight | N/A |
|---|---|
| Colour of light | White |
| Protection class | I |
| Adjustable optics | Yes |
| Connection type | Screwed terminal |
| Mounting method | Post top |
| Colour rendering index CRI | 80-89 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Light type | Mastaufsatzleuchte |
| Power factor | 0.9 |
| Cable length | 0 m |

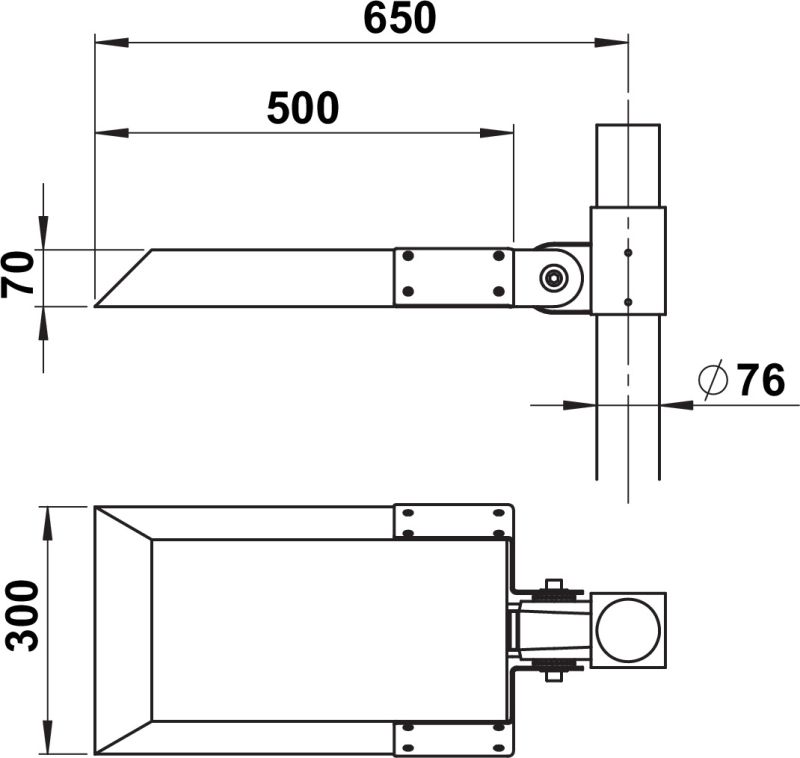

| Length | 650 mm |
| Type of wiring | Suitable for through wiring |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Exchangeable control gear | Yes |
| Height | < 700 mm |
| Max. system power | 58 W |
| Height/depth | 70 mm |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Nominal voltage | 230 V |
| Suitable for number of lamps | 1 |
| Surface protection | Lacquered |
| Width | 300 mm |
| With control gear | Yes |
| No dim function | Yes |
| Type of control gear | LED operating device current-controlled |
| Degree of protection (IP) | IP65 |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Voltage type | AC/DC |
| Light distributor | Refractor lens |
| Shape | Eckig |
Recommendations
This product is suitable for light poles with a pole top end diameter of 76mm.
