Data sheet
Article number 690200
Wall and ceiling light
type ..0200
This product is no longer in our assortment.
Nicht lieferbar
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

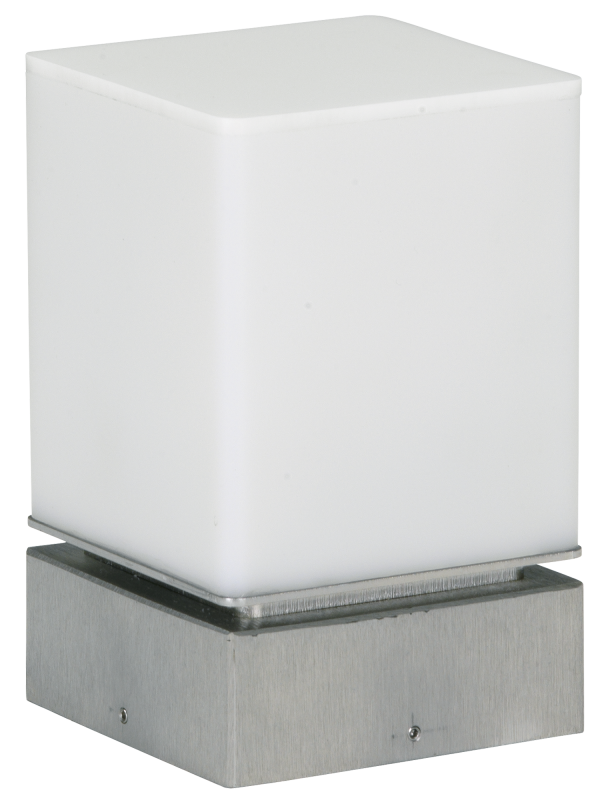

Albert wall and ceiling light 690200
made of stainless steel with opal acrylic glassInstalled for 1 x ESL or LED Retrofit max. 15 Watt socket E27Protection class IP 44 – protection class I Dimensions: L 100 x W 100 x H 160 mm
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
15 W
Colour temperature
3000 K
Material cover
Plastic, opal
Documents and files
Assembly instruction

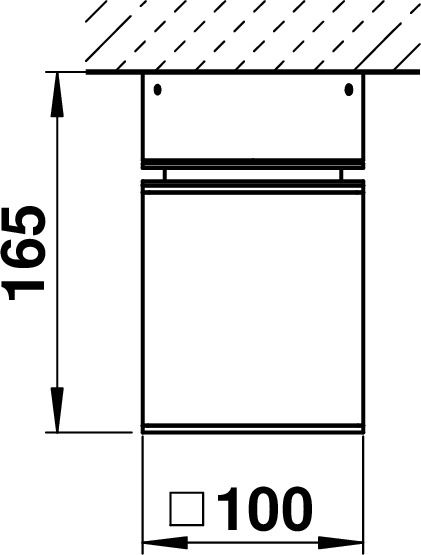

Dimensioned drawing
Full catalog 21 / 22
Spare parts
| 90260088 - G 88, PMMA square tube opal L = 112 mm | show |
Additional information
| Weight | 1,20 kg |
|---|---|
| Lamp holder | E27 |
| Type of control gear | Not required |
| Degree of protection (IP) | IP44 |
| Nominal voltage | 230 V |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | Yes |
| Suitable for number of lamps | 1 |
| Colour housing | Stainless steel |
| Material cover | Plastic, opal |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Voltage type | AC |
| Lamp type | LED exchangeable |
| Dimming phase cut-on | Yes |
| Material housing | Stainless steel |
| Dimming phase cut-off | Yes |
| Dimming manufacturer's proprietary system | Yes |
| With control gear | Yes |
| No dim function | Yes |
| Light sharing | Symmetric |
| Beam angle | Open beam/diffuse |
| Light output | Direct |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Length | 100 mm |
| Unified Glare Ratio (UGR) | 1 |
| Power factor | 1 |
| Width | 100 mm |
| Light output | 1-seitig |
| Photobiological safety according to EN 62471 | RG1 |
| Colour temperature | 3000 K |
| Number of poles | 3 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Conductor cross section | 2.5 mm² |
| Dimming depending on control gear | Yes |
| Protection class | I |
| Mounting Type | Decke, Wand |
| Suitable for wall mounting | Yes |
| Suitable for lamp power | 15 W |
| Max. system power | 15 W |
| Height | < 700 mm |
| Surface protection housing | Untreated |
| Exchangeable control gear | Yes |
| Connection type | Screwed terminal |
| Height/depth | 165 mm |
| Type of wiring | Ending |
| Shape | Eckig |
