Article number Select a color, please

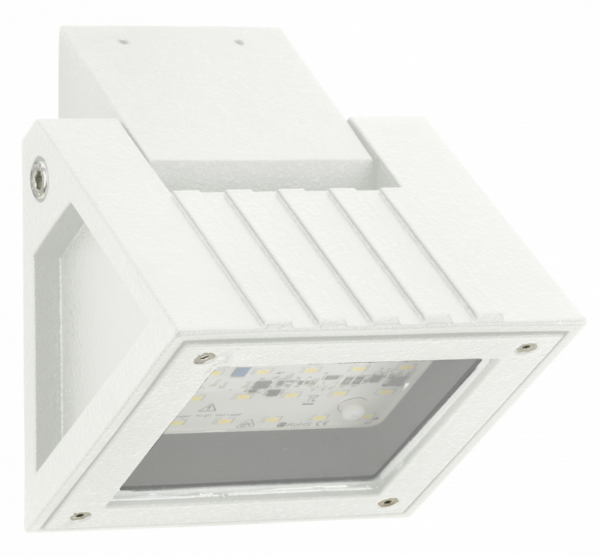

Wall floodlight

type ..2410

281,40314,50

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

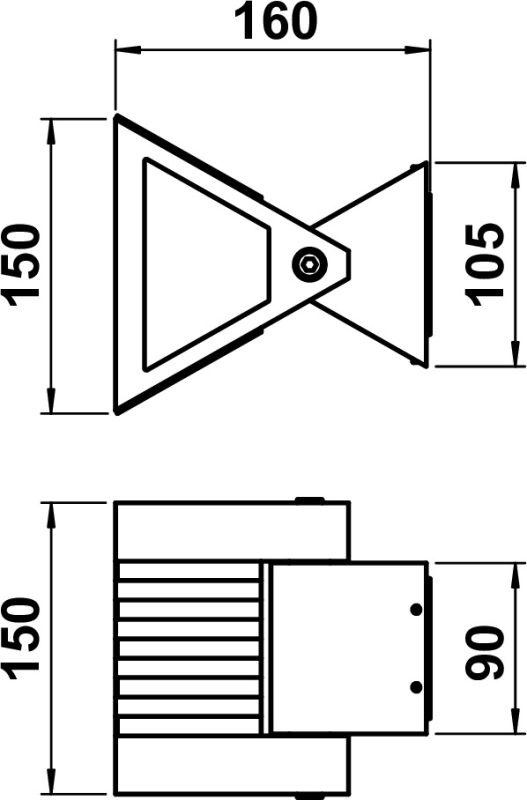

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext

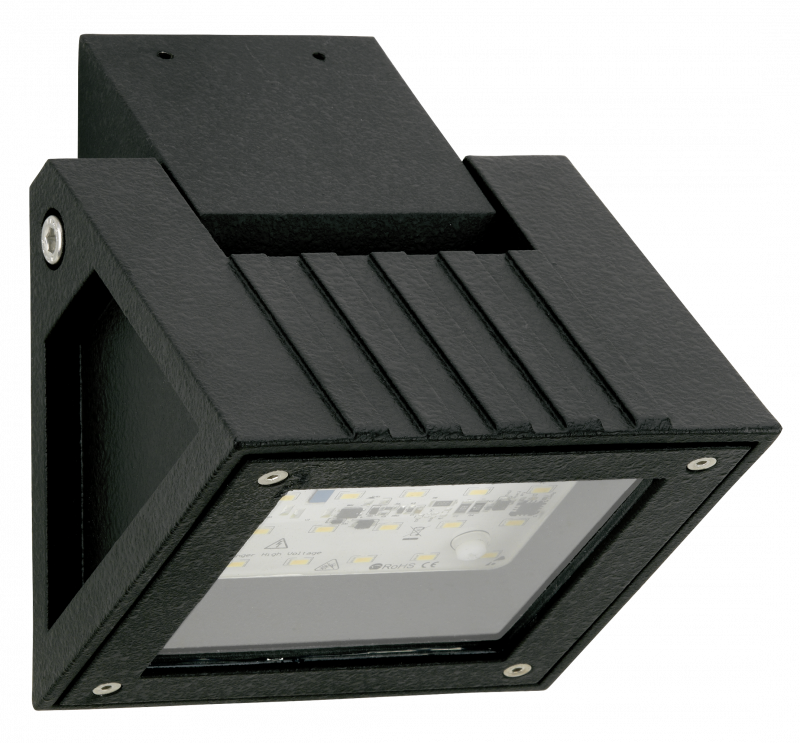

For: 662410
Offertext

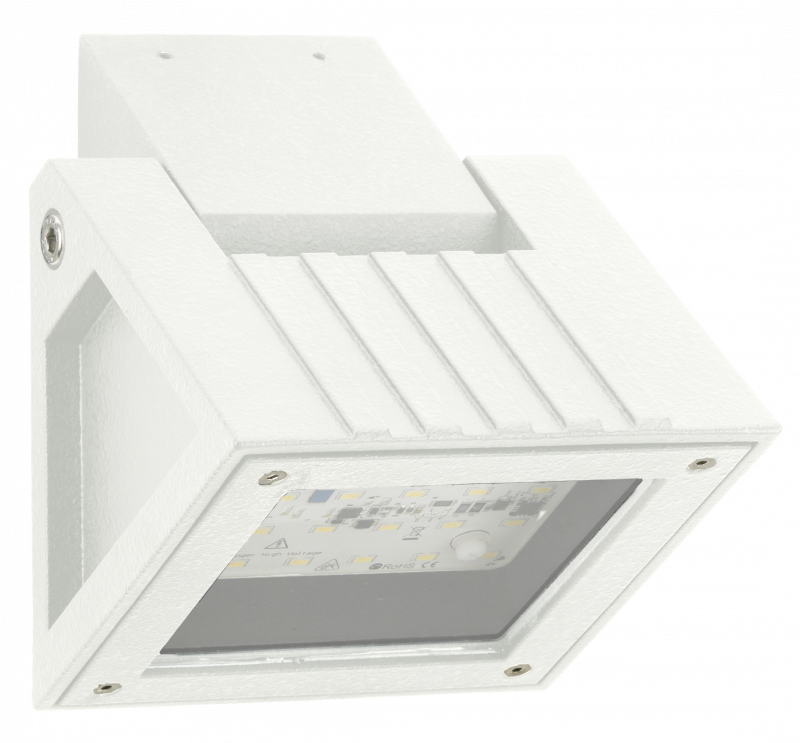

For: 682410
Offertext

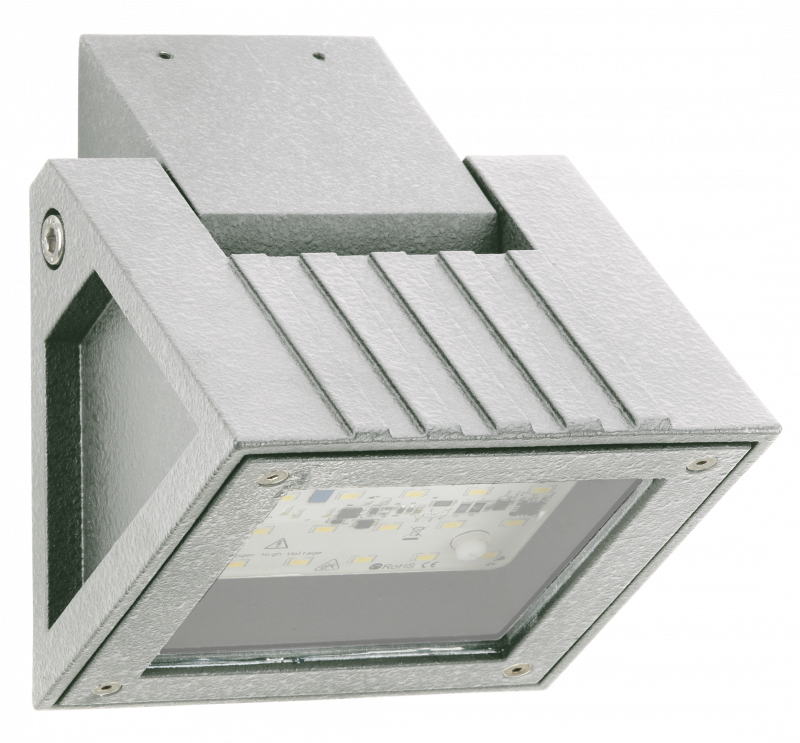

For: 692410
Full catalog 21 / 22
Spare parts
90220321 - G 321, borosilicate glass show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Suitable for lamp power

16 W

Reflector

High-gloss

Material cover

Glass transparent

Adjustability

Swivelling

Lamp type

LED exchangeable

With light source

Yes

Length

160 mm

With control gear

Yes

Colour rendering index CRI

80-89

Voltage type

AC

Material housing

Aluminium

Surface protection

Lacquered

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Colour housing

Black, Silver, White

Dimming phase cut-off

Yes

Suitable for pedestal/floor mounting

Yes

Degree of protection (IP)

IP54

Beam angle

Medium beam 21-40°

Suitable for ceiling mounting

Yes

Type of wiring

Ending

Energy efficiency class of the provided exchangeable built-in lamp

E

Max. system power

16 W

Number of poles

3

Light outlet

Direct

Protection class

I

Rated luminous flux according to IEC 62722-2-1

1600 lm

Height/depth

150 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Flickering value Pst LM

1

Colour temperature

3000 K

Luminous flux

1600 lm

Power factor

0.9

Conductor cross section

2.5 mm²

Connectable conductor cross section

0.75 – 2.5 mm²

Connection type

Screwed terminal

Width

150 mm

Colour of light

White

Colour consistency (McAdam ellipse)

SDCM3

Light sharing

Symmetric

Shape

Eckig

Mounting method

Decke

Light outlet

1-seitig

Height

< 700 mm

Suitable for wall mounting

Yes

Exchangeable control gear

Yes

Suitable for number of lamps

1

Beam angle adjustable

Continuously variable

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Unified Glare Ratio (UGR)

1
