Article number 696205

Wall and ceiling light

type ..6205

171,30

Description

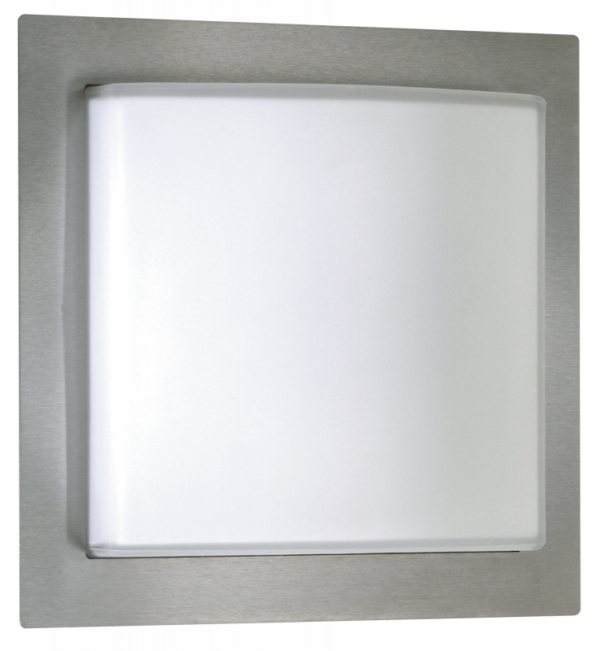

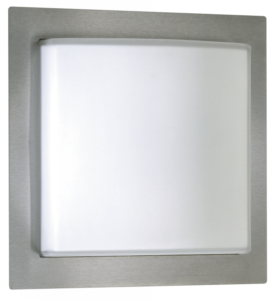

Albert wall and ceiling light 696205
in stainless steel with opal glass, with separate mounting plate in cast aluminium. Equipped for 1 x incandescent lamps A60 75 W, socket E27.protection class IP 44 – protection class : 260 x 260 x 85 mm

Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

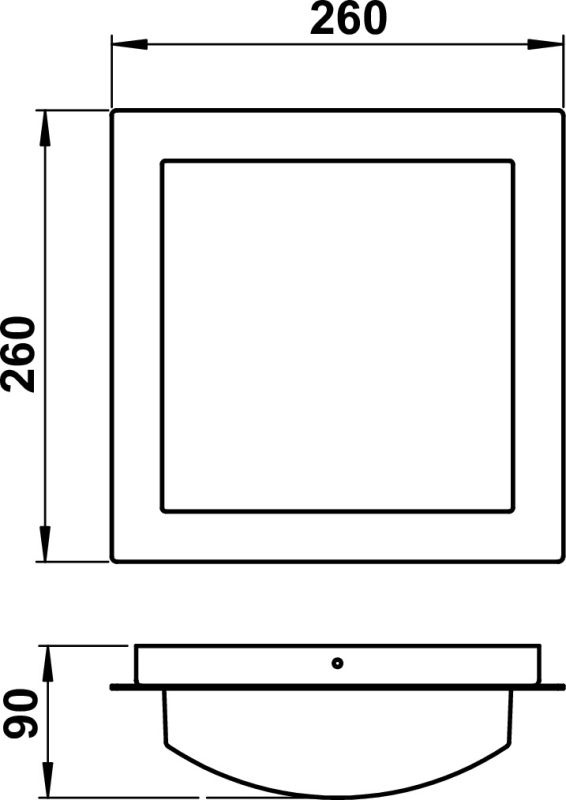

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90210348 - G 348, opal glass show
Accessories
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show

Additional information

Weight 2.60 kg
Suitable for wall mounting

Yes

Conductor cross section

2.5 mm²

Protection class

I

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Suitable for number of lamps

1

Material cover

Glass opal

Suitable for surface mounting

Yes

Lamp holder

E27

Number of poles

3

Dimming phase cut-on

Yes

Material housing

Stainless steel

Type of control gear

Not required

Nominal voltage

230 V

Voltage type

AC

Colour housing

Stainless steel

Light sharing

Symmetric

Light outlet

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Height/depth

260 mm

Length

90 mm

Type of wiring

Ending

Suitable for ceiling mounting

Yes

Connection type

Screwed terminal

Mounting method

Decke, Wand

Dimming depending on control gear

Yes

No dim function

Yes

Power factor

1

Unified Glare Ratio (UGR)

1

Light outlet

1-seitig

Width

260 mm

Degree of protection (IP)

IP44

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Max. system power

75 W

Suitable for lamp power

1 – 75 W

Lowest energy efficiency class of the exchangeable lamp

E

Height

< 700 mm

Surface protection housing

Untreated

Beam angle

Open beam/diffuse

Style

Edelstahl, Modern

Photobiological safety according to EN 62471

RG1

Shape

Eckig
