Data sheet
Article number 696151
Wall and ceiling light
type ..6151
€157,80
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

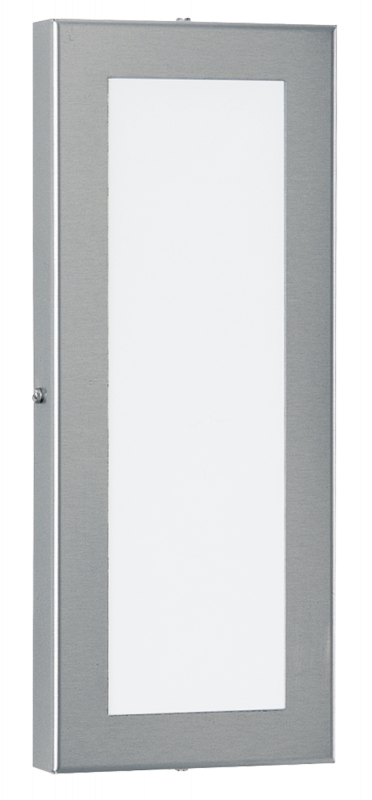

Albert wall and ceiling light 696151
made of stainless steel with opal pane glass. Equipped for 1 x fluorescent lamp TC-SEL 11W, socket 2G7.protection class IP 44 – protection class : 130 x 320 x 65 mm
Features
Luminaire has IP 54 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Compact fluorescent lamp
Lamp holder
G23
Suitable for lamp power
10 W
Material cover
Glass structured
Documents and files
Assembly instruction

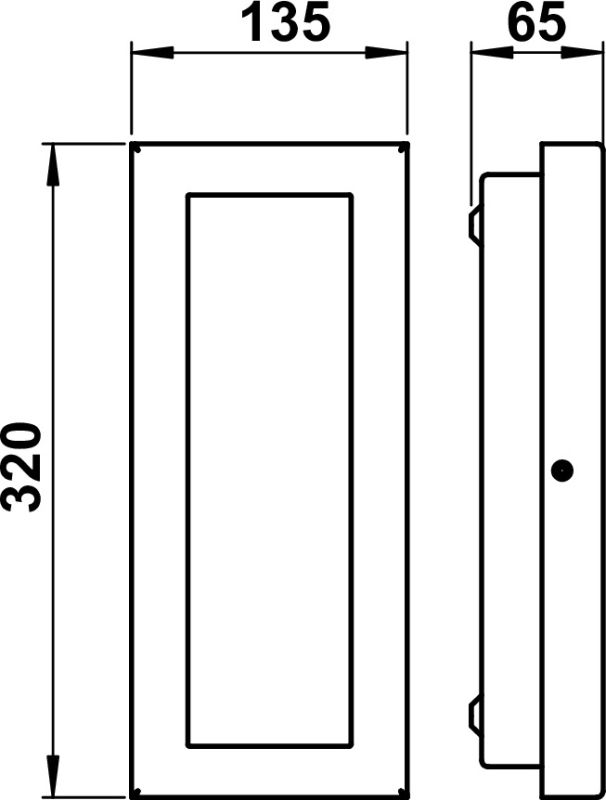

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
| 90220335 - G 335, milk flashed glass | show |
Additional information
| Weight | 2,40 kg |
|---|---|
| Light output | 1-seitig |
| Lamp type | Compact fluorescent lamp |
| Suitable for number of lamps | 1 |
| Lamp holder | G23 |
| Material housing | Stainless steel |
| Colour housing | Stainless steel |
| Suitable for ceiling mounting | Yes |
| Nominal voltage | 230 V |
| With control gear | Yes |
| Voltage type | AC |
| Type of control gear | Low-loss ballast inductive |
| Suitable for surface mounting | Yes |
| Suitable for lamp power | 10 W |
| Max. system power | 11 W |
| Light sharing | Symmetric |
| Beam angle | Open beam/diffuse |
| Light output | Direct |
| Degree of protection (IP) | IP54 |
| Material cover | Glass structured |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Height | < 700 mm |
| Type of wiring | Ending |
| Dimming depending on control gear | Yes |
| No dim function | Yes |
| Width | 135 mm |
| Height/depth | 320 mm |
| Surface protection housing | Untreated |
| Unified Glare Ratio (UGR) | 1 |
| Connection type | Screwed terminal |
| Mounting Type | Decke, Wand |
| Suitable for wall mounting | Yes |
| Conductor cross section | 2.5 mm² |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Protection class | I |
| Power factor | 1 |
| Exchangeable control gear | Yes |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Photobiological safety according to EN 62471 | RG1 |
| Length | 65 mm |
| Number of poles | 3 |
| Shape | Eckig |
