Article number Select a color, please

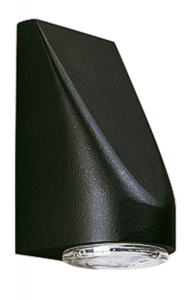

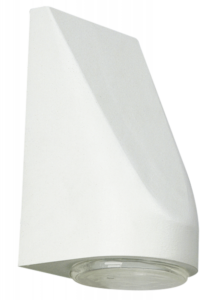

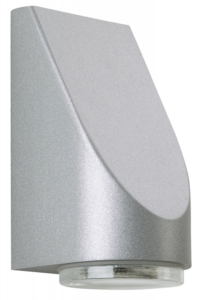

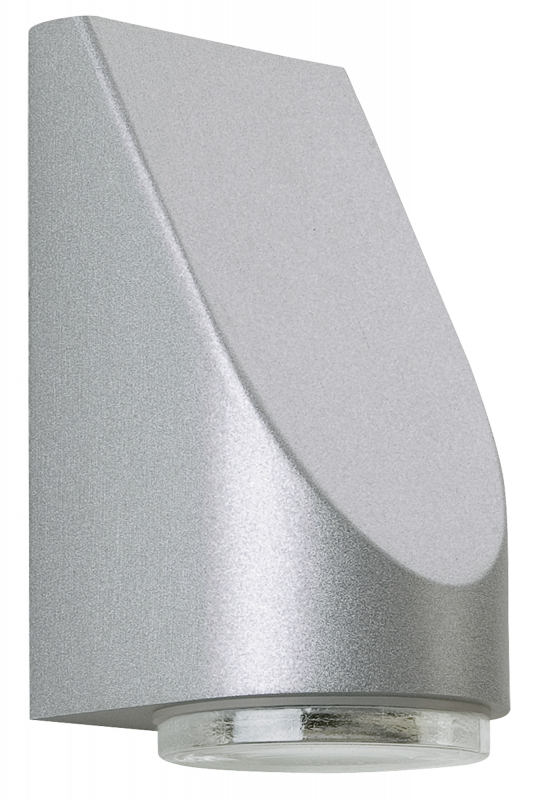

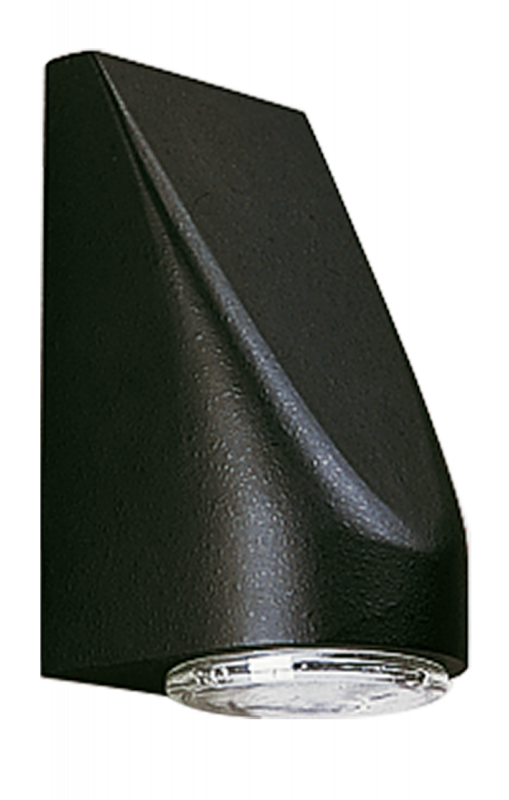

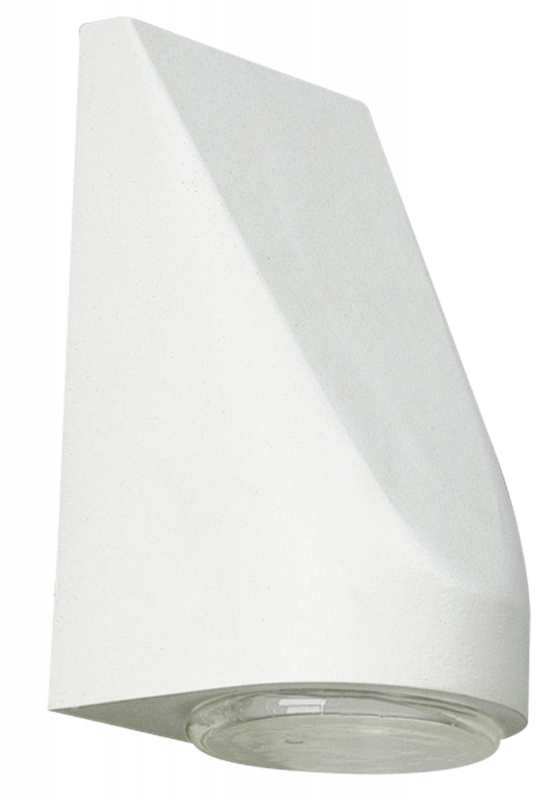

Wall light

type ..0677

169,10194,40

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
Reflector lamp replaceable Product-Icon The reflector lamp is replaceable.
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
HV halogen lamp
Lamp holder
GU10
Suitable for lamp power
50 W
Material cover
Glass transparent
Weight N/A
Suitable for wall mounting

Yes

Dimming phase cut-off

Yes

Nominal voltage

230 V

Suitable for surface mounting

Yes

Protection class

I

Suitable for number of lamps

1

Voltage type

AC/DC

Dimming phase cut-on

Yes

Number of poles

3

Type of control gear

Not required

Width

100 mm

Light type

Wandleuchte

Power factor

1

Height/depth

190 mm

Length

115 mm

Type of wiring

Ending

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Beam angle

Open beam/diffuse

Dimming depending on control gear

Yes

Shape

Eckig

Mounting Type

Wand

No dim function

Yes

Light output

1-seitig

Light sharing

Symmetric

Light output

Direct

Degree of protection (IP)

IP43

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Max. system power

50 W

Style

Bicolor, Modern

Surface protection housing

Lacquered

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Height

< 700 mm

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1

Documents and files
Data sheet
Assembly instruction
PDF | 71 KB

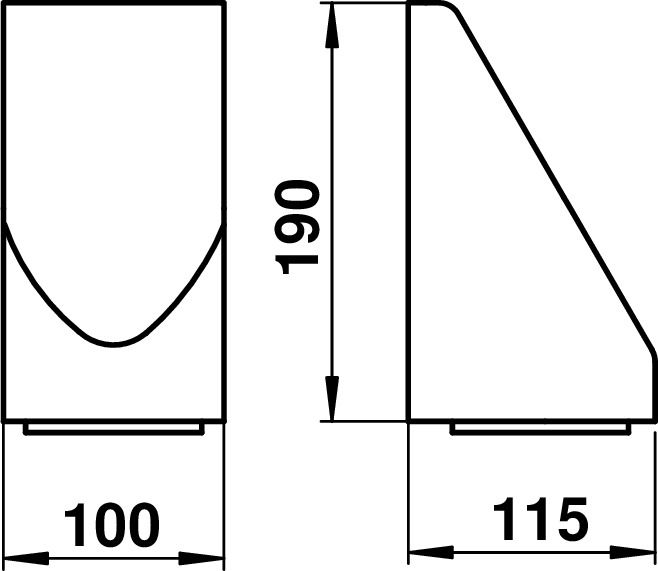

Dimensioned drawing
PDF | 23 KB
Light distribution curve - Eulumdat/LDT
LDT | 20 KB
Offertext
For: 660677
TXT | 227 B
Offertext
For: 680677
TXT | 227 B
Offertext
For: 690677
TXT | 212 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210048 - G 48, bubble glass insert clear show
Accessories
90750105 - LED PAR 16 show
