Article number Select a color, please

Bollard light

type ..2078

346,00386,30

Clear
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux acc. IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

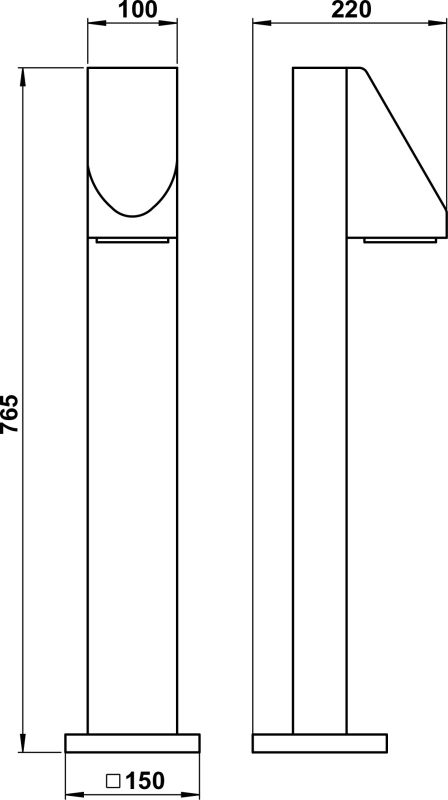

Dimensioned drawing
Light distribution curve
Offertext

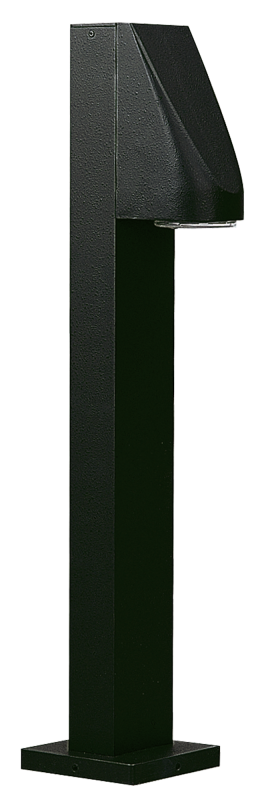

For: 662078
Offertext

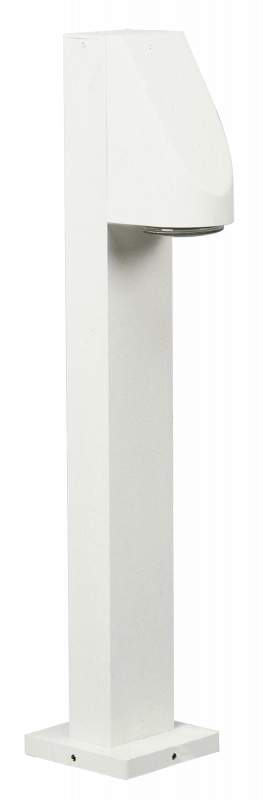

For: 682078
Offertext

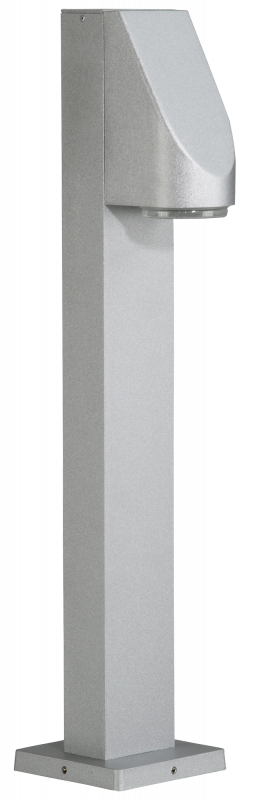

For: 692078
Full catalog 21 / 22
Spare parts
90210048 - G 48, bubble glass insert clear show
Accessories
690010 - Earth mounting base type ..0010 show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Number of poles

3

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

1

Type of control gear

Magnetic transformer

Material housing

Aluminium

Colour housing

Black, Silver, White

Surface protection

Lacquered

Colour rendering index CRI

80-89

Voltage type

AC/DC

Highest energy efficiency class of the exchangeable lamp

A+

Nominal voltage

230 V

Material cover

Glass transparent

Energy efficiency class of the provided exchangeable built-in lamp

A+

With base plate

Yes

Control gear included

Yes

Width

100 mm

Rated luminous flux acc. IEC 62722-2-1

900 lm

Colour of light

White

Shape

Eckig

Light type

Standleuchte

Degree of protection (IP)

IP43

Power factor

0.9

Lowest energy efficiency class of the exchangeable lamp

A+

Length

220 mm

Suitable for lamp power

10 W

Height/depth

765 mm

Conductor cross section

2.5 mm²

Type of wiring

Suitable for through wiring

Colour temperature

3000 K

Protection class

I

Connection type

Screwed terminal

Rated life time L80/B50 at 25 °C

50000 h

Max. system power

10 W

Height

700 – 1000 mm

Style

Modern
