Data sheet
Article number 696200

Wall and ceiling light

type ..6200

This product is no longer in our assortment.

Nicht lieferbar

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

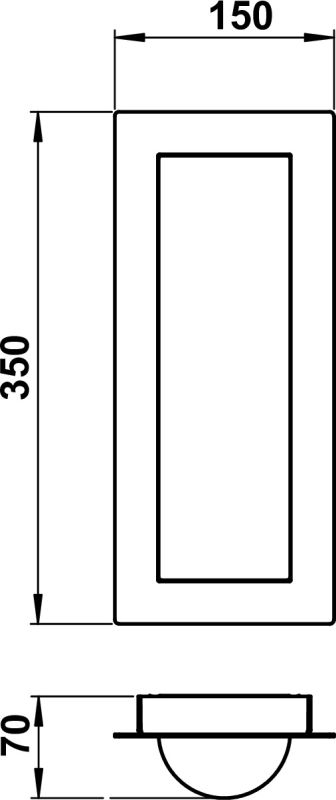

Albert wall and ceiling light 696200 in stainless steel with opal glass, with mounting plate in cast aluminium. Equipped for 1 x fluorescent lamp TC-SEL 11W, socket G 2G7.protection class IP 44 – protection class : 350 x 150 x 65 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Compact fluorescent lamp
Lamp holder
G23
Suitable for lamp power
10 W
Material cover
Glass opal
Spare parts
90210350 - G 350, glass opal matt show

Additional information

Weight 2,20 kg
Light output

1-seitig
Lamp type

Compact fluorescent lamp
Suitable for number of lamps

1
Lamp holder

G23
Material housing

Stainless steel
Colour housing

Stainless steel
Suitable for ceiling mounting

Yes
Nominal voltage

230 V
With control gear

Yes
Voltage type

AC
Suitable for surface mounting

Yes
Suitable for lamp power

10 W
Max. system power

11 W
Light sharing

Symmetric
Beam angle

Open beam/diffuse
Light output

Direct
Degree of protection (IP)

IP44
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Type of control gear

Low-loss ballast inductive
Material cover

Glass opal
Protection class

I
Height

< 700 mm
Dimming depending on control gear

Yes
No dim function

Yes
Width

150 mm
Height/depth

350 mm
Surface protection housing

Untreated
Unified Glare Ratio (UGR)

1
Power factor

1
Connection type

Screwed terminal
Mounting Type

Decke, Wand
Suitable for wall mounting

Yes
Conductor cross section

2.5 mm²
Highest energy efficiency class of the exchangeable lamp

A++
Type of wiring

Ending
Exchangeable control gear

Yes
Lowest energy efficiency class of the exchangeable lamp

E
Photobiological safety according to EN 62471

RG1
Length

70 mm
Number of poles

3
Shape

Angular, Eckig
