Article number 696187

Wall light

type ..6187

186,60

Specifications

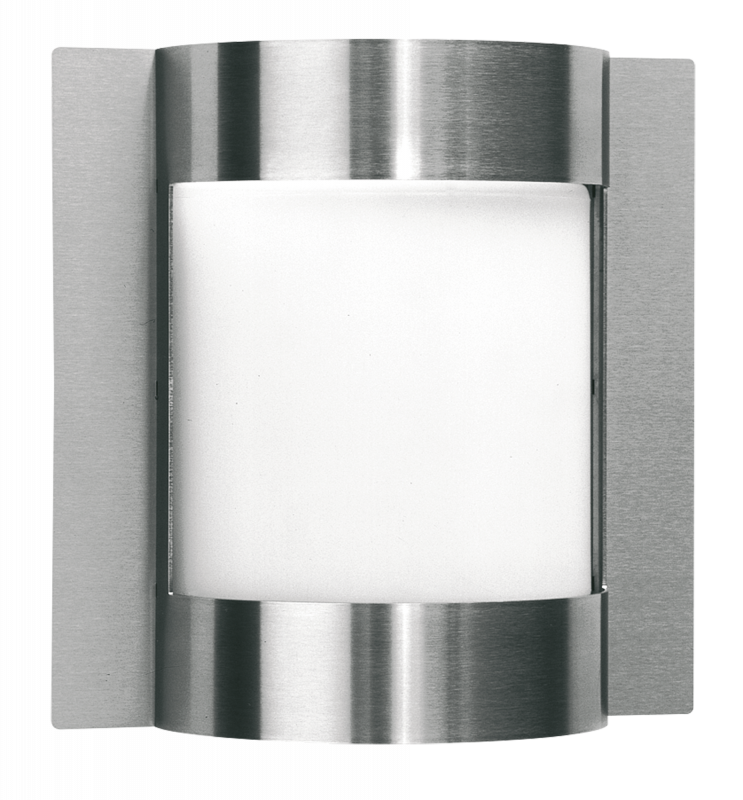

Albert wall lamp 696187
in stainless steel with opal glass, with separate mounting plate in cast aluminium. Suitable for 1 x incandescent lamp A60 75W,socket E27.protection class IP 44 – protection class : 250 x 250 x 110 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight 2,90 kg
Type of control gear

Not required

Protection class

I

Suitable for number of lamps

1

Light sharing

Symmetric

Nominal voltage

230 V

Voltage type

AC

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Dimming manufacturer's proprietary system

Yes

Light output

1-seitig

Width

250 mm

Power factor

1

Highest energy efficiency class of the exchangeable lamp

A++

Degree of protection (IP)

IP44

Connection type

Screwed terminal

Light type

Wandleuchte

Length

110 mm

Beam angle

Open beam/diffuse

Light output

Direct

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1

Height/depth

250 mm

No dim function

Yes

Max. system power

75 W

Type of wiring

Ending

Suitable for wall mounting

Yes

Conductor cross section

2.5 mm²

Dimming depending on control gear

Yes

Mounting Type

Wand

Lowest energy efficiency class of the exchangeable lamp

E

Height

< 700 mm

Surface protection housing

Untreated

Style

Edelstahl, Modern

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Number of poles

3

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 76 KB

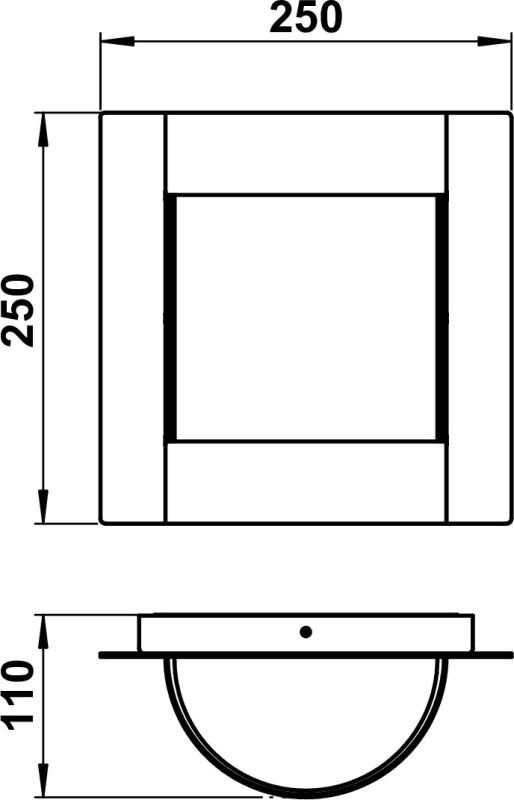

Dimensioned drawing
PDF | 22 KB
Light distribution curve - Eulumdat/LDT
LDT | 3 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210118 - G 118, opal glass matt show
Accessories
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
