Data sheet
Article number 696303
Wall and ceiling light
type ..6303
This product is no longer in our assortment.
Nicht lieferbar
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

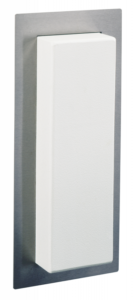

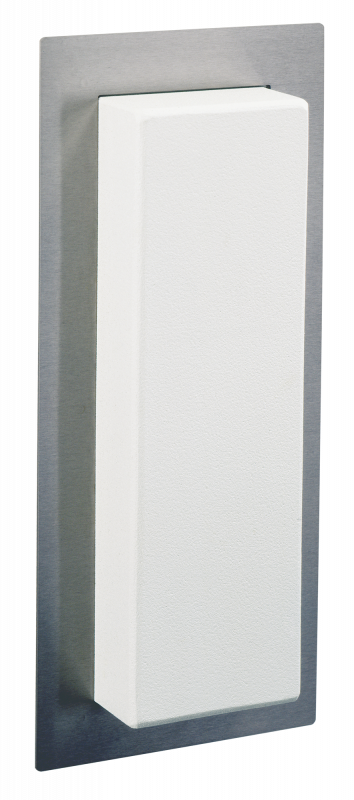

Albert wall and ceiling light 696303
made of stainless steel with opal glass, with mounting plate made of cast aluminium.1 x LED 16 W, warm white 3000 K, 1600 IP 44 – protection class : 350 x 150 x 65 mm
Features
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

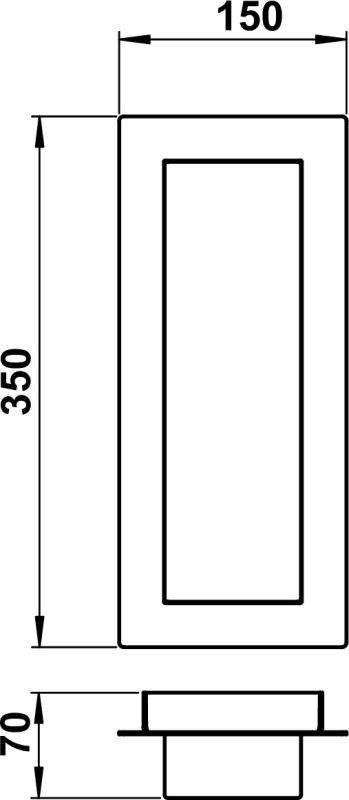

Dimensioned drawing
Full catalog 21 / 22
Spare parts
| 90210351 - G 351, glass opal matt | show |
Additional information
| Weight | 2,20 kg |
|---|---|
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Material housing | Stainless steel |
| With light source | Yes |
| Lamp type | LED exchangeable |
| Degree of protection (IP) | IP44 |
| Colour rendering index CRI | 80-89 |
| Suitable for surface mounting | Yes |
| Light sharing | Symmetric |
| Dimming phase cut-off | Yes |
| No dim function | Yes |
| Colour housing | Stainless steel |
| Type of control gear | LED operating device voltage-controlled |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Material cover | Glass opal |
| Dimming depending on control gear | Yes |
| Suitable for number of lamps | 1 |
| Width | 150 mm |
| Height/depth | 350 mm |
| Length | 70 mm |
| Type of wiring | Ending |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Suitable for ceiling mounting | Yes |
| Surface protection housing | Untreated |
| Rated luminous flux according to IEC 62722-2-1 | 1600 lm |
| Unified Glare Ratio (UGR) | 1 |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Light output | Direct |
| Light output | 1-seitig |
| Protection class | I |
| Photobiological safety according to EN 62471 | RG1 |
| Power factor | 0.9 |
| Beam angle | Open beam/diffuse |
| Max. system power | 16 W |
| Suitable for lamp power | 16 W |
| Colour temperature | 3000 K |
| Mounting Type | Decke, Wand |
| Suitable for wall mounting | Yes |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Flickering value Pst LM | 1 |
| Stroboscope effect value SVM | 0.4 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Height | < 700 mm |
| Connection type | Screwed terminal |
| Colour of light | White |
| Shape | Eckig |
