Article number Select a color, please

Wall and ceiling light

type ..6400

255,10293,30

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Energy efficiency class of the provided exchangeable built-in lamp

E

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Suitable for number of lamps

1

With control gear

No, Yes

Voltage type

AC

Type of control gear

LED operating device voltage-controlled

Protection class

I

Dimming phase cut-off

Yes

Beam angle

Open beam/diffuse

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Power factor

0.9

No dim function

Yes

Light output

Direct

Light sharing

Symmetric

Degree of protection (IP)

IP44

Nominal voltage

230 V

Length

90 mm

Width

195 mm

Colour rendering index CRI

80-89

Type of wiring

Ending

Dimming depending on control gear

Yes

Max. system power

10 W

Colour of light

White

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Number of poles

3

Height/depth

295 mm

Shape

Eckig

Mounting Type

Decke, Wand

Light output

1-seitig

Height

< 700 mm

Style

Modern

Surface protection housing

Lacquered

Exchangeable control gear

No, Yes

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Documents and files
Data sheet
Assembly instruction
PDF | 23 KB

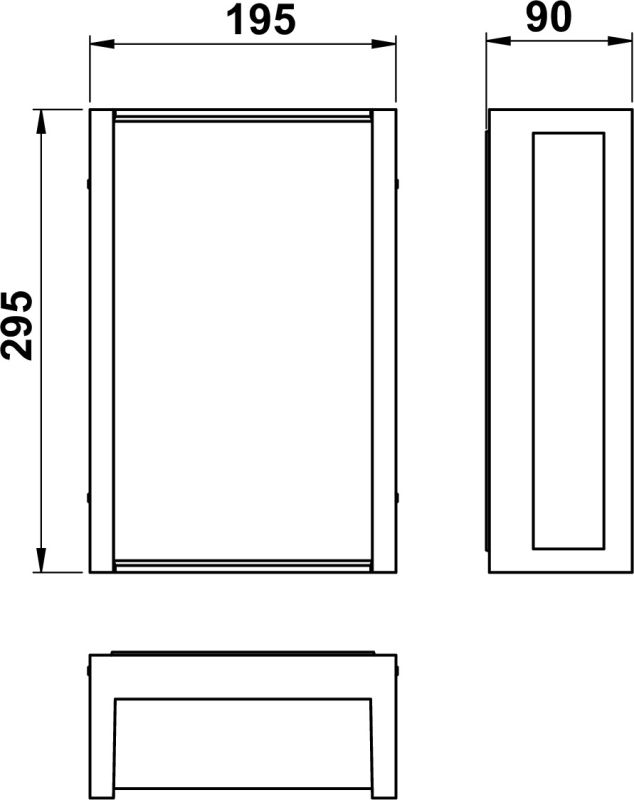

Dimensioned drawing
PDF | 138 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Offertext
For: 626400
TXT | 260 B
Offertext
For: 666400
TXT | 255 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210392 - G 392, glass opal matt show
