Data sheet
Article number
Select a color, please

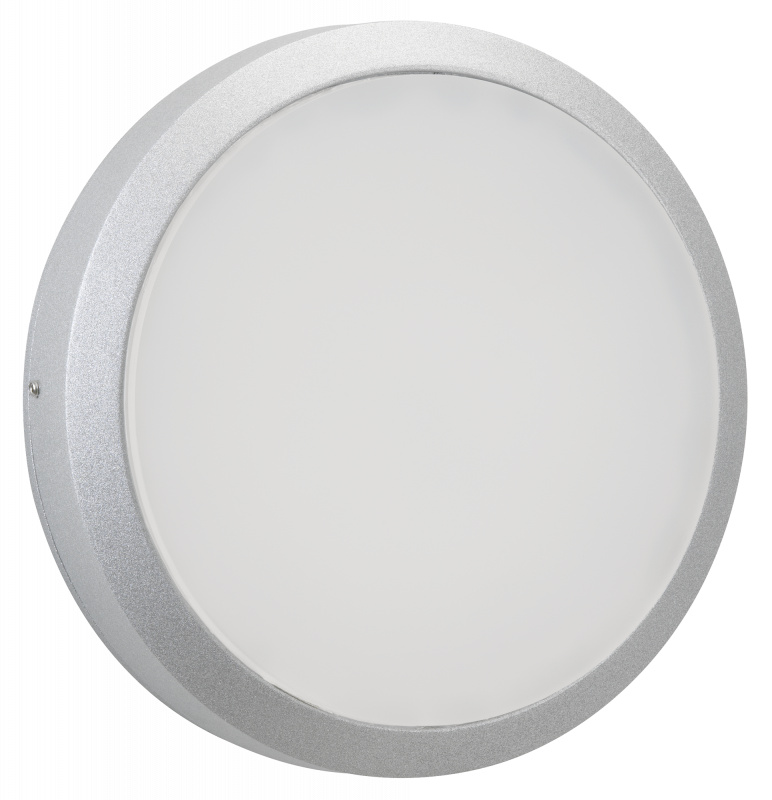

Wall and ceiling light
type ..6404
There is a successor for this product, which you will find listed below.
€240,20 – €276,20
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing

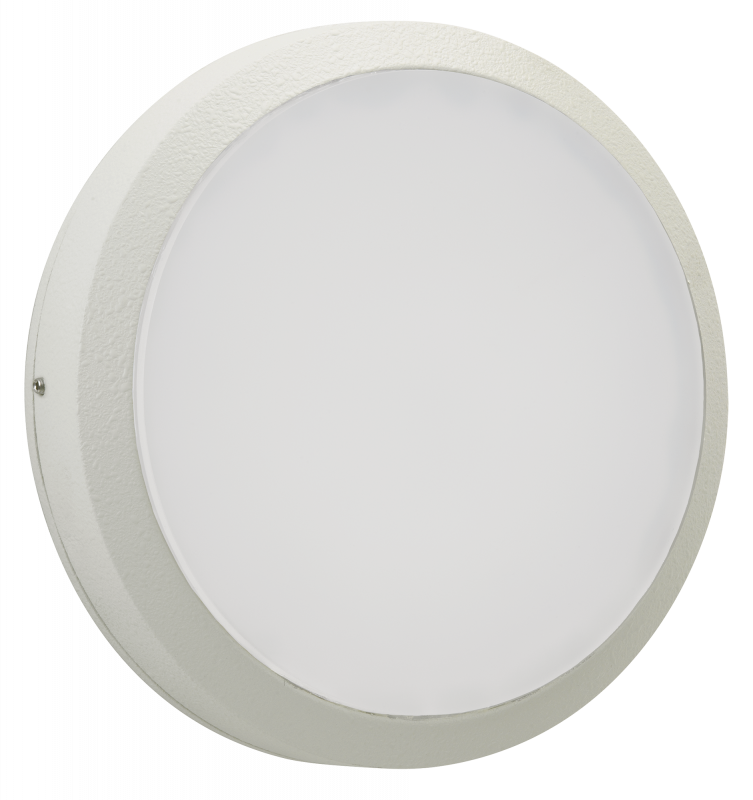

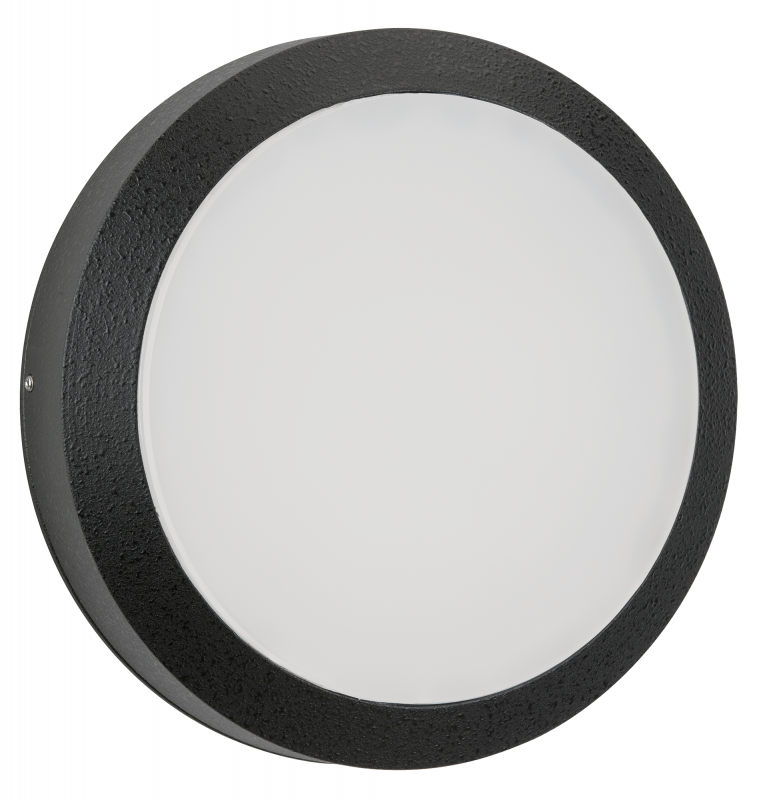

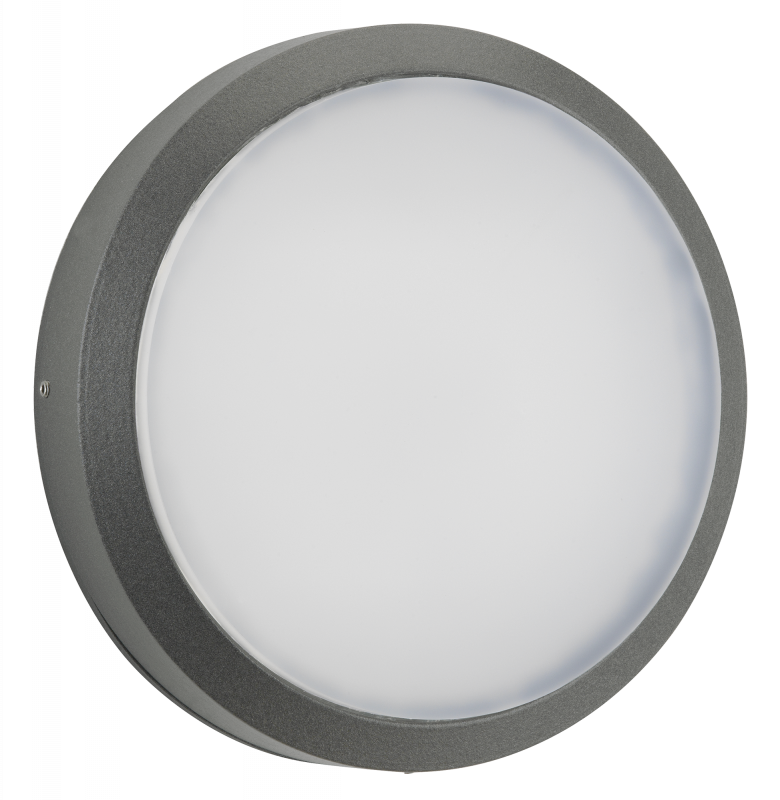

Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Plastic, structured
| Weight | N/A |
|---|---|
| Surface protection housing | Lacquered |
| Light outlet | 1-seitig |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Protection class | I |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Impact strength | IK08 |
| Power factor | 0.9 |
| Colour of light | White |
| Light sharing | Symmetric |
| Light outlet | Direct |
| No dim function | Yes |
| Dimming depending on control gear | Yes |

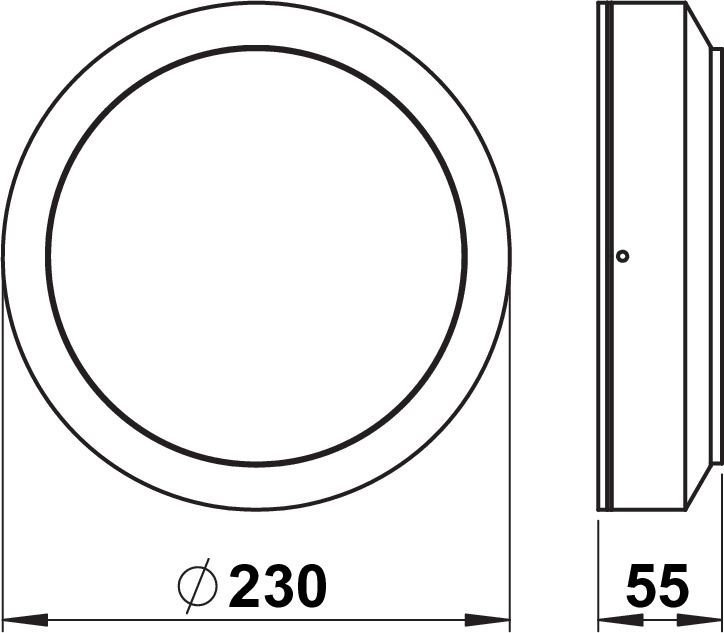

| Outer diameter | 230 mm |
| Dimming phase cut-off | Yes |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Mounting method | Decke, Wand |
| Degree of protection (IP) | IP54 |
| Exchangeable control gear | Yes |
| Colour rendering index CRI | 80-89 |
| Unified Glare Ratio (UGR) | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Stroboscope effect value SVM | 0.4 |
| Flickering value Pst LM | 1 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Suitable for wall mounting | Yes |
| Length | 55 mm |
| Suitable for ceiling mounting | Yes |
| Nominal voltage | 230 V |
| Type of control gear | LED operating device voltage-controlled |
| Suitable for surface mounting | Yes |
| Type of wiring | Ending |
| Connection type | Screwed terminal |
| Max. system power | 16 W |
| Conductor cross section | 2.5 mm² |
| Suitable for number of lamps | 1 |
| Number of poles | 3 |
| Beam angle | Open beam/diffuse |
| Voltage type | AC |
| With control gear | Yes |
| Shape | Eckig |
Documents and files
Successor
Spare parts
| 90270458 - G 458, acrylic disc | show |
Additional information
| Weight | N/A |
|---|---|
| Surface protection housing | Lacquered |
| Light outlet | 1-seitig |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Protection class | I |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Impact strength | IK08 |
| Power factor | 0.9 |
| Colour of light | White |
| Light sharing | Symmetric |
| Light outlet | Direct |
| No dim function | Yes |
| Dimming depending on control gear | Yes |
| Outer diameter | 230 mm |
| Dimming phase cut-off | Yes |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Mounting method | Decke, Wand |
| Degree of protection (IP) | IP54 |
| Exchangeable control gear | Yes |
| Colour rendering index CRI | 80-89 |
| Unified Glare Ratio (UGR) | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Stroboscope effect value SVM | 0.4 |
| Flickering value Pst LM | 1 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Suitable for wall mounting | Yes |
| Length | 55 mm |
| Suitable for ceiling mounting | Yes |
| Nominal voltage | 230 V |
| Type of control gear | LED operating device voltage-controlled |
| Suitable for surface mounting | Yes |
| Type of wiring | Ending |
| Connection type | Screwed terminal |
| Max. system power | 16 W |
| Conductor cross section | 2.5 mm² |
| Suitable for number of lamps | 1 |
| Number of poles | 3 |
| Beam angle | Open beam/diffuse |
| Voltage type | AC |
| With control gear | Yes |
| Shape | Eckig |
