Data sheet
Article number
Select a color, please

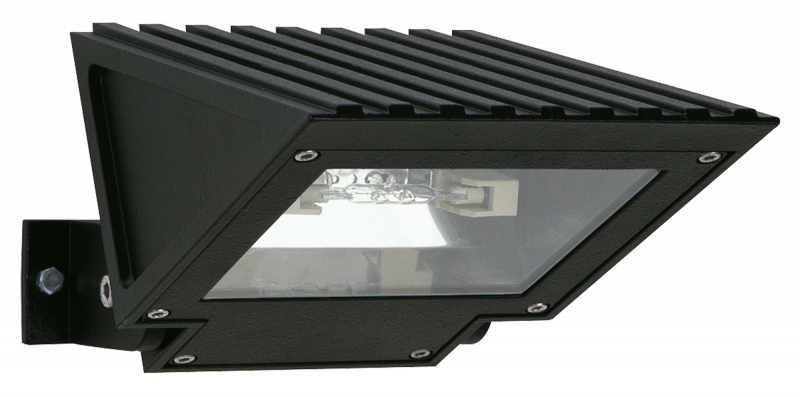

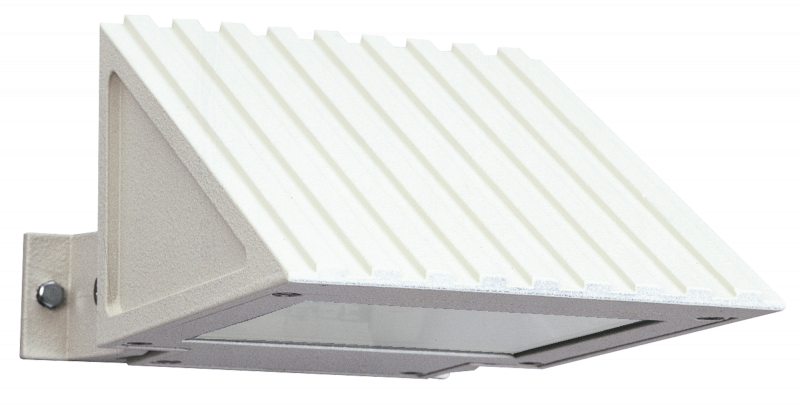

Wall floodlight
type ..2111
€260,80 – €300,20
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
HV halogen lamp
Lamp holder
R7s
Suitable for lamp power
300 W
Material cover
Glass transparent
| Weight | N/A |
|---|---|

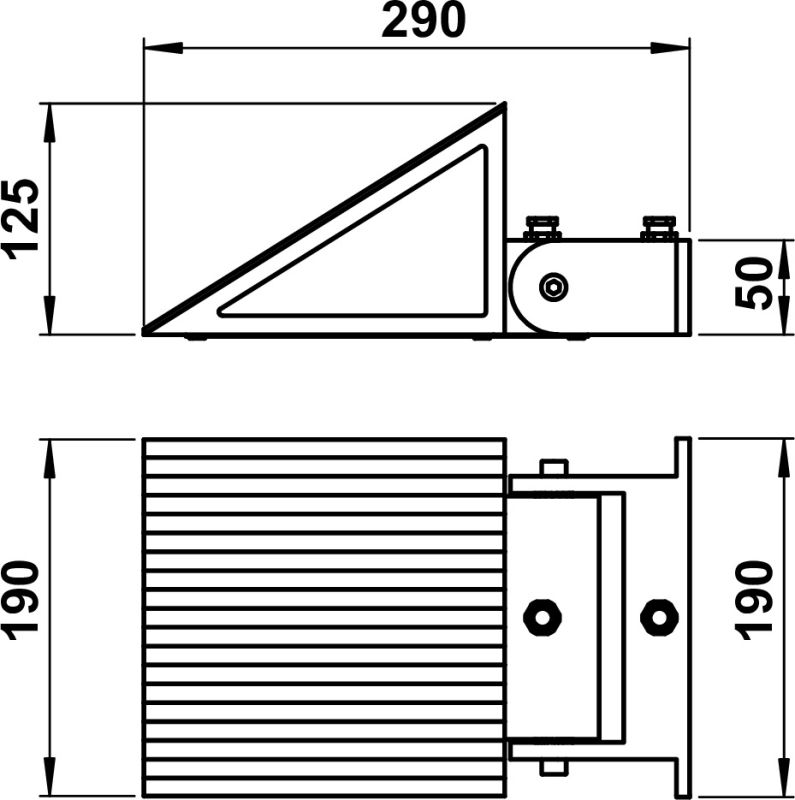

| Height/depth | 125 mm |
| Connection type | Screwed terminal |
| Number of poles | 3 |
| Max. system power | 300 W |
| Suitable for surface mounting | Yes |
| Degree of protection (IP) | IP54 |
| Light sharing | Symmetric |
| Type of wiring | Ending |
| Length | 290 mm |
| Connectable conductor cross section | 0.75 – 2.5 mm² |
| No dim function | Yes |
| Dimming phase cut-off | Yes |
| Unified Glare Ratio (UGR) | 1 |
| Beam angle adjustable | Continuously variable |
| Protection class | I |
| Reflector | High-gloss |
| Suitable for wall mounting | Yes |
| Height | < 700 mm |
| Mounting method | Decke |
| Luminous flux | 0 – 3000 lm |
| Light outlet | 1-seitig |
| Width | 190 mm |
| Suitable for pedestal/floor mounting | Yes |
| Beam angle | Medium beam 21-40° |
| Surface protection | Lacquered |
| Light distributor | Reflector |
| Nominal voltage | 230 V |
| Suitable for number of lamps | 1 |
| Adjustability | Swivelling |
| Dimming manufacturer's proprietary system | Yes |
| Light outlet | Direct |
| Type of control gear | Not required |
| Power factor | 1 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Conductor cross section | 2.5 mm² |
| Suitable for ceiling mounting | Yes |
| Voltage type | AC |
| Shape | Eckig |
Documents and files
Spare parts
| 90220320 - G 320, borosilicate glass, clear | show |
Additional information
| Weight | N/A |
|---|---|
| Height/depth | 125 mm |
| Connection type | Screwed terminal |
| Number of poles | 3 |
| Max. system power | 300 W |
| Suitable for surface mounting | Yes |
| Degree of protection (IP) | IP54 |
| Light sharing | Symmetric |
| Type of wiring | Ending |
| Length | 290 mm |
| Connectable conductor cross section | 0.75 – 2.5 mm² |
| No dim function | Yes |
| Dimming phase cut-off | Yes |
| Unified Glare Ratio (UGR) | 1 |
| Beam angle adjustable | Continuously variable |
| Protection class | I |
| Reflector | High-gloss |
| Suitable for wall mounting | Yes |
| Height | < 700 mm |
| Mounting method | Decke |
| Luminous flux | 0 – 3000 lm |
| Light outlet | 1-seitig |
| Width | 190 mm |
| Suitable for pedestal/floor mounting | Yes |
| Beam angle | Medium beam 21-40° |
| Surface protection | Lacquered |
| Light distributor | Reflector |
| Nominal voltage | 230 V |
| Suitable for number of lamps | 1 |
| Adjustability | Swivelling |
| Dimming manufacturer's proprietary system | Yes |
| Light outlet | Direct |
| Type of control gear | Not required |
| Power factor | 1 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Conductor cross section | 2.5 mm² |
| Suitable for ceiling mounting | Yes |
| Voltage type | AC |
| Shape | Eckig |
