Article number Select a color, please

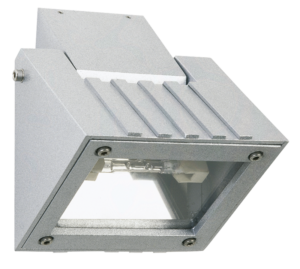

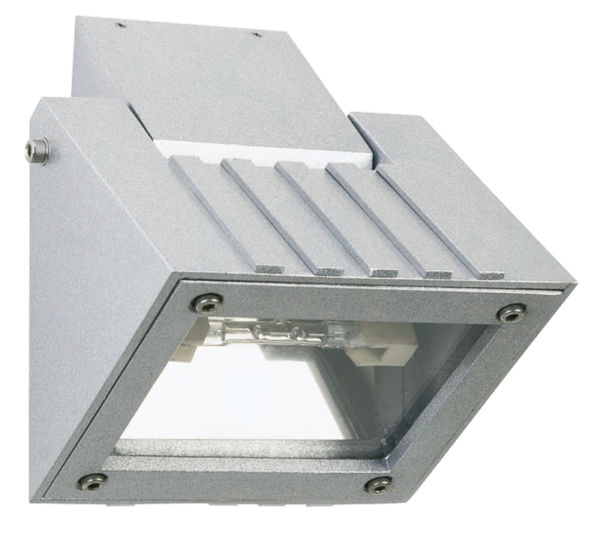

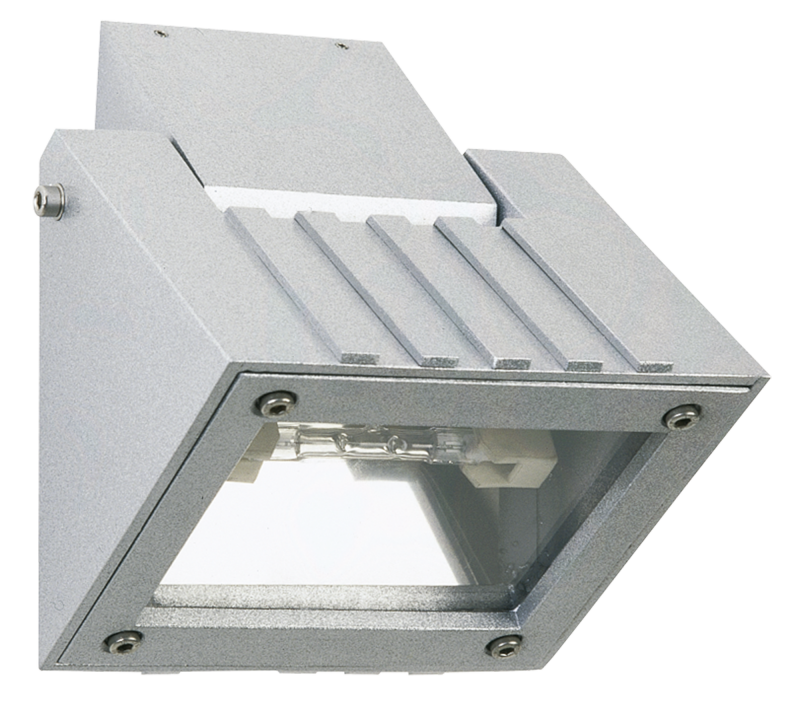

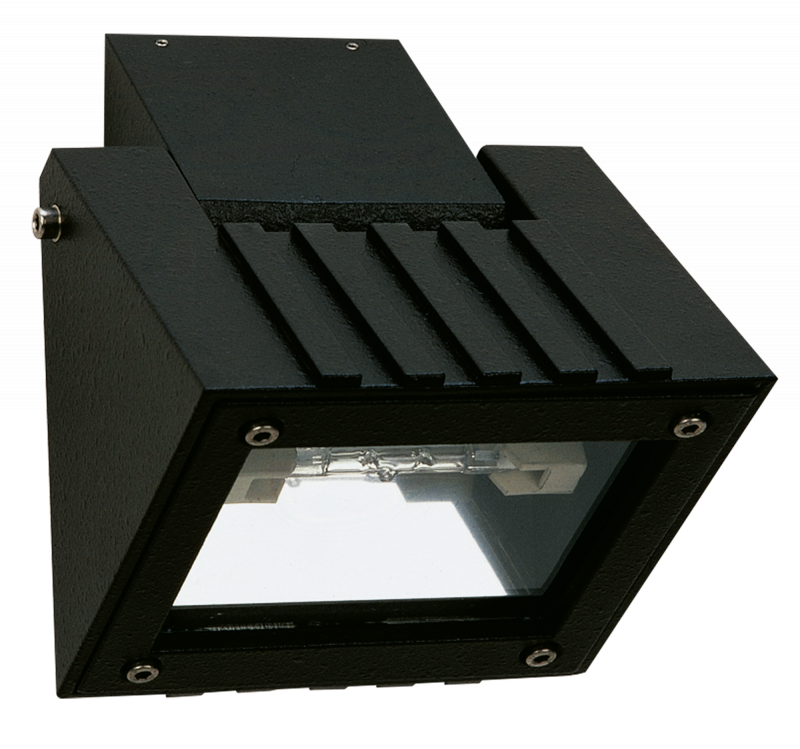

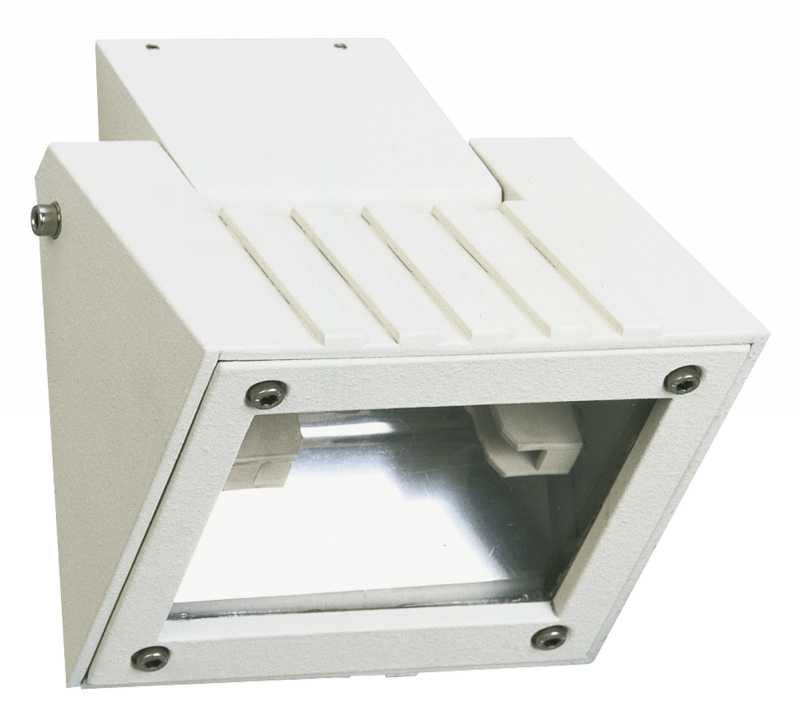

Wall floodlight

type ..2110

163,30187,70

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
HV halogen lamp
Lamp holder
R7s
Suitable for lamp power
150 W
Material cover
Glass transparent
Documents and files
Assembly instruction

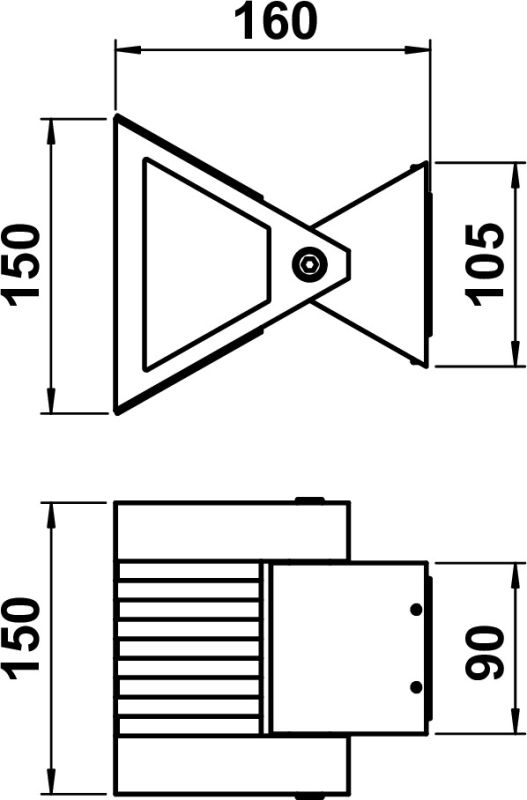

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 662110
Offertext
For: 682110
Offertext
For: 692110
Full catalog 21 / 22
Spare parts
90220321 - G 321, borosilicate glass show

Additional information

Weight N/A
Adjustability

Swivelling

Colour housing

Black, Silver, White

Material housing

Aluminium

Suitable for number of lamps

1

Lamp holder

R7s

Width

150 mm

Type of control gear

Not required

Suitable for pedestal/floor mounting

Yes

Surface protection

Lacquered

Beam angle

Medium beam 21-40°

Power factor

1

Dimming manufacturer's proprietary system

Yes

Material cover

Glass transparent

Lamp type

HV halogen lamp

Voltage type

AC

Light distributor

Reflector

Suitable for ceiling mounting

Yes

Conductor cross section

2.5 mm²

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Nominal voltage

230 V

Light outlet

Direct

Connectable conductor cross section

0.75 – 2.5 mm²

No dim function

Yes

Reflector

High-gloss

Length

160 mm

Type of wiring

Ending

Suitable for lamp power

150 W

Light sharing

Symmetric

Height/depth

150 mm

Suitable for surface mounting

Yes

Max. system power

150 W

Number of poles

3

Connection type

Screwed terminal

Degree of protection (IP)

IP54

Light outlet

1-seitig

Luminous flux

0 – 3000 lm

Mounting method

Decke

Height

< 700 mm

Suitable for wall mounting

Yes

Protection class

I

Beam angle adjustable

Continuously variable

Unified Glare Ratio (UGR)

1

Dimming phase cut-off

Yes

Shape

Eckig
