Data sheet

Article number

Wall floodlight

Name: Wall floodlight type ..2111
SKU: TYPE-2111-6-2-2111
Availability: InStock

type ..2111

€260,80 – €300,20

Manufacturer's Suggested Retail Price excl. VAT

Colour housing	Clear

Features

Luminaire has IP 54 protection.

Material housing

Aluminium

Colour housing

Black, Silver, White

Lamp type

HV halogen lamp

Lamp holder

R7s

Suitable for lamp power

300 W

Material cover

Glass transparent

Documents and files

Assembly instruction

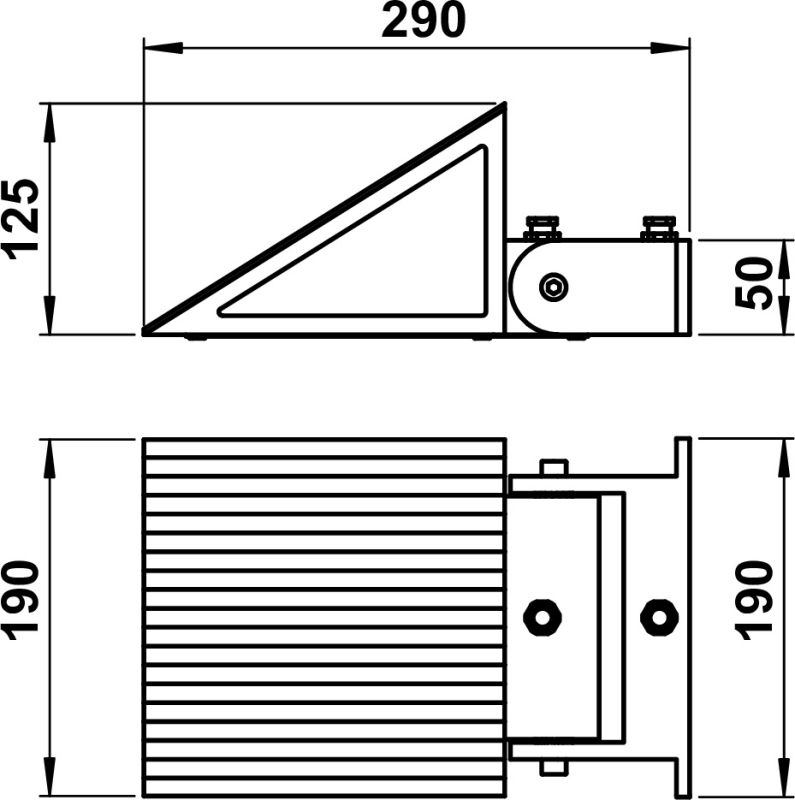

Dimensioned drawing

Offertext

For: 662111

Offertext

For: 682111

Offertext

For: 692111

Full catalog 21 / 22

Spare parts

90220320 - G 320, borosilicate glass, clear show

Weight	N/A
Material housing	Aluminium
Suitable for number of lamps	1
Lamp holder	R7s
Width	190 mm
Type of control gear	Not required
Suitable for pedestal/floor mounting	Yes
Light output	Direct
Dimming manufacturer's proprietary system	Yes
Beam angle	Medium beam 21-40°
Power factor	1
Nominal voltage	230 V
Colour housing	Black, Silver, White
Adjustability	Swivelling
Material cover	Glass transparent
Lamp type	HV halogen lamp
Voltage type	AC
Surface protection	Lacquered
Suitable for ceiling mounting	Yes
Conductor cross section	2.5 mm²
Rated ambient temperature according to IEC62722-2-1	15 – 25 °C
Light distributor	Reflector
Max. system power	300 W
Degree of protection (IP)	IP54
No dim function	Yes
Reflector	High-gloss
Length	290 mm
Type of wiring	Ending
Suitable for lamp power	300 W
Connection type	Screwed terminal
Connectable conductor cross section	0.75 – 2.5 mm²
Height/depth	125 mm
Suitable for surface mounting	Yes
Number of poles	3
Light sharing	Symmetric
Light output	1-seitig
Luminous flux	0 – 3000 lm
Mounting Type	Decke
Height	< 700 mm
Suitable for wall mounting	Yes
Protection class	I
Beam angle adjustable	Continuously variable
Unified Glare Ratio (UGR)	1
Dimming phase cut-off	Yes
Shape	Eckig
