Data sheet
Article number 692151
Wall floodlight
type ..2151
€287,30
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

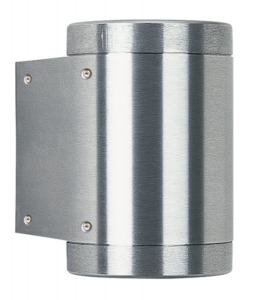

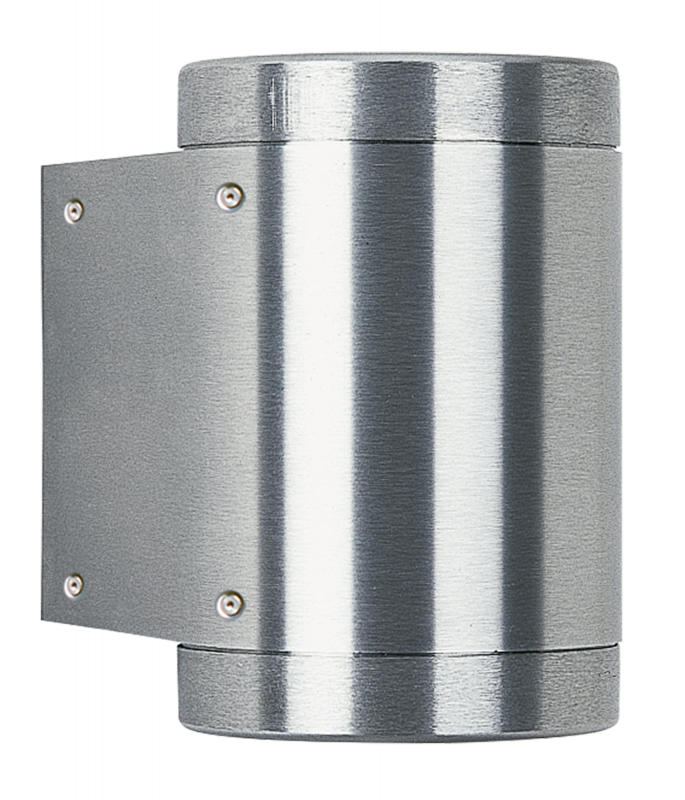

Albert wall floodlight 692151 – with 2-sided light emission –
made of stainless steel with borosilicate glass clear as well as with separate mounting plate made of corrosion-resistant cast aluminium. Equipped for 2 x QT 14 60 W, socket G9Protection class IP 44 – protection class : d 133 x 160 x 175 mm
Features
Luminaire has IP 44 protection.
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
HV halogen lamp
Lamp holder
G9
Suitable for lamp power
60 W
Material cover
Glass transparent
Documents and files
Assembly instruction

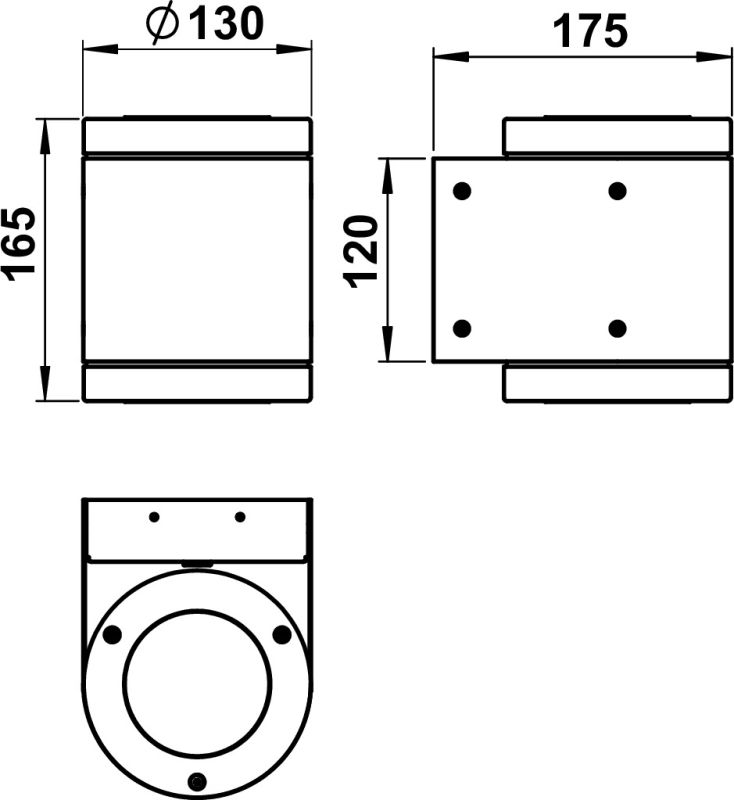

Dimensioned drawing
Full catalog 21 / 22
Additional information
| Weight | 3,10 kg |
|---|---|
| Type of control gear | Not required |
| Material cover | Glass transparent |
| Colour housing | Stainless steel |
| Material housing | Stainless steel |
| Adjustability | Not adjustable |
| Dimming phase cut-off | Yes |
| Light sharing | Symmetric |
| Suitable for number of lamps | 2 |
| Lamp type | HV halogen lamp |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Max. system power | 120 W |
| Number of poles | 3 |
| Lamp holder | G9 |
| Voltage type | AC |
| Nominal voltage | 230 V |
| Suitable for pedestal/floor mounting | Yes |
| Beam angle | Medium beam 21-40° |
| Dimming manufacturer's proprietary system | Yes |
| Light output | 2-seitig |
| Length | 175 mm |
| Degree of protection (IP) | IP44 |
| Suitable for lamp power | 60 W |
| Luminous flux | 0 – 3000 lm |
| Suitable for wall mounting | Yes |
| Protection class | I |
| No dim function | Yes |
| Outer diameter | 130 mm |
| Type of wiring | Ending |
| Height/depth | 165 mm |
| Beam angle adjustable | Continuously variable |
| Connectable conductor cross section | 0.75 – 2.5 mm² |
| Suitable for surface mounting | Yes |
| Unified Glare Ratio (UGR) | 1 |
| Light output | Direct/indirect |
| Conductor cross section | 2.5 mm² |
| Power factor | 1 |
| Height | < 700 mm |
| Connection type | Screwed terminal |
| Shape | Eckig |
