Data sheet

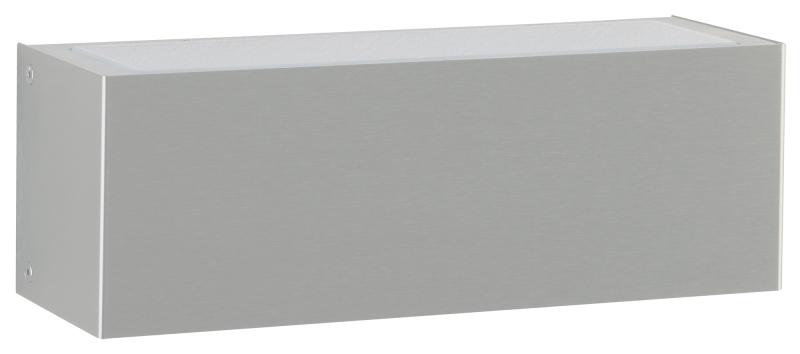

Wall lamp Stainless steel Product Image Article 696365
Wall lamp Stainless steel Product Image Article 696365

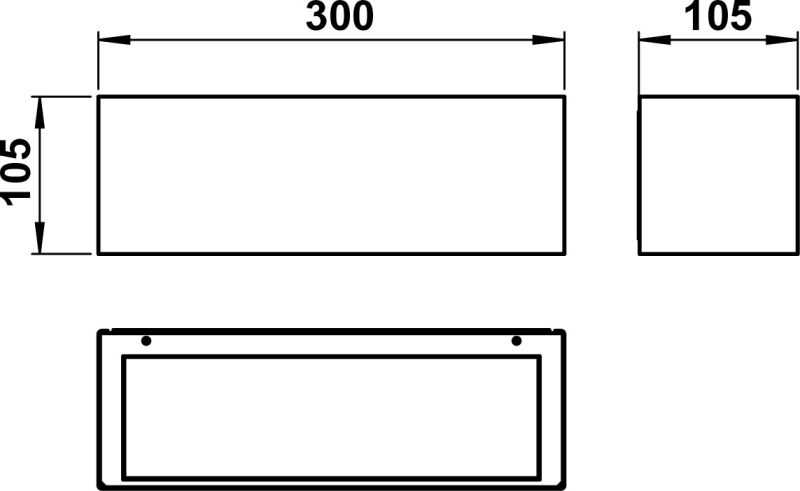

Wall lamp Stainless steel Dimensioned drawing Article 696365
Article number 696365

Wall lamp

type ..6365

€434,50

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

Albert wall lamp 696365
with 2-sided light emission, made of stainless steel with opal glass with mounting plate.2 x LED 7,8 W, warm white 3000 K, 580 each : stainless steel protection class IP 44 – protection class : 300 x 105 x 105 mm

Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
15.6 W
Rated luminous flux according to IEC 62722-2-1
1160 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction
download PDF 89.79 KB
Dimensioned drawing
download PDF 90.34 KB
Light distribution curve - Eulumdat/LDT
download LDT 20.68 KB
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
90220378 - G 378, frosted flashed glass ESG show

Additional information

Weight 2,70 kg
Width

300 mm
Nominal voltage

230 V
With control gear

Yes
Lamp type

LED exchangeable
Suitable for number of lamps

2
With light source

Yes
Material housing

Stainless steel
Colour housing

Stainless steel
Material cover

Glass opal
No dim function

Yes
Suitable for surface mounting

Yes
Light sharing

Symmetric
Height/depth

105 mm
Colour rendering index CRI

80-89
Length

105 mm
Type of wiring

Ending
Number of poles

3
Conductor cross section

2.5 mm²
Voltage type

AC/DC
Power factor

0.9
Dimming depending on control gear

Yes
Energy efficiency class of the provided exchangeable built-in lamp

E
Suitable for lamp power

15.6 W
Degree of protection (IP)

IP44
Protection class

I
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Exchangeable control gear

Yes
Type of control gear

LED operating device voltage-controlled
Light output

1-seitig
Connection type

Screwed terminal
Rated luminous flux according to IEC 62722-2-1

1160 lm
Colour of light

White
Colour temperature

3000 K
Style

Edelstahl, Modern, Stainless Steel
Mounting Type

Wand
Light type

Wandleuchte
Max. system power

15.6 W
Suitable for wall mounting

Yes
Height

< 700 mm
Unified Glare Ratio (UGR)

1
Surface protection housing

Untreated
Light output

Direct
Colour consistency (McAdam ellipse)

SDCM3
Highest energy efficiency class of the exchangeable lamp

A++
Lowest energy efficiency class of the exchangeable lamp

E
Max. number of luminaires per miniature circuit breaker B16

20
Max. number of luminaires per miniature circuit breaker C16

30
Stroboscope effect value SVM

0.4
Photobiological safety according to EN 62471

RG1
Beam angle

Open beam/diffuse
Flickering value Pst LM

1
Shape

Angular, Eckig
