Article number Select a color, please

Wall floodlight

type ..2155

139,70

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Rotatable lamp Product-Icon The luminaire body can be rotated.
The luminaire body can be rotated.
Reflector lamp replaceable Product-Icon The reflector lamp is replaceable.
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
75 W
Material cover
Glass transparent
Documents and files
Assembly instruction

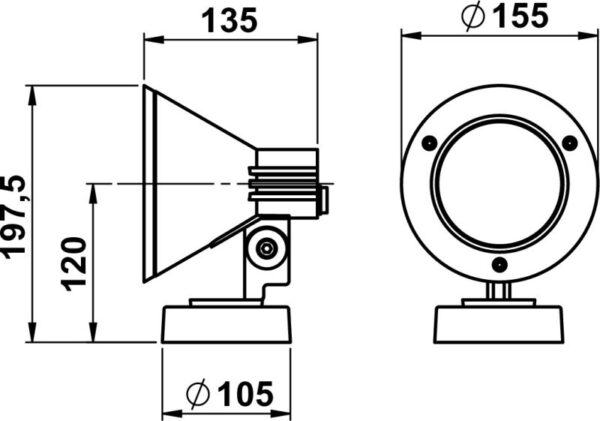

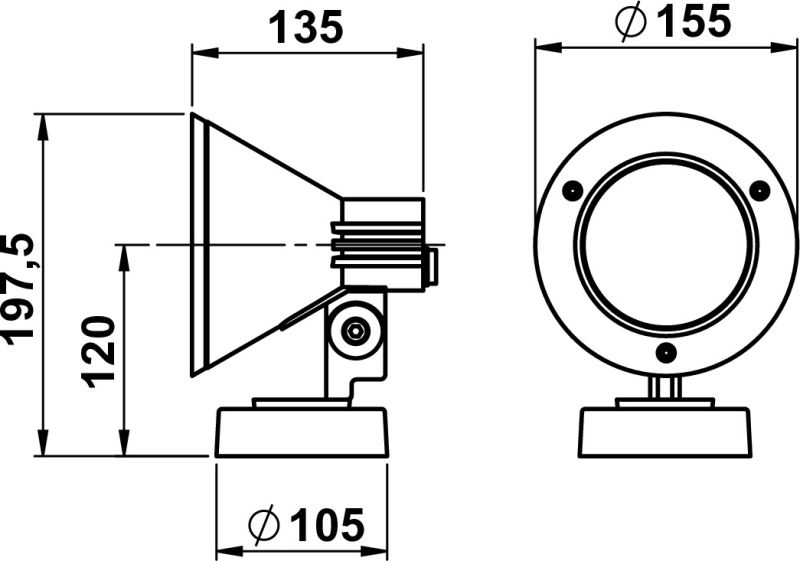

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 662155
Offertext
For: 682155
Full catalog 21 / 22
Spare parts
90220159 - G 159, borosilicate glass round disc show
Accessories
661005 - Corner bracket round type ..1005, Black
Für: 662155
show
681005 - Corner bracket round type ..1005, White
Für: 682155
show
90750309 - LED Retrofit Tube show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Material housing

Aluminium

Suitable for number of lamps

1

Height/depth

197.5 mm

Suitable for ceiling mounting

Yes

Beam angle

Medium beam 21-40°

Surface protection

Lacquered

Colour housing

Black, White

Conductor cross section

2.5 mm²

Voltage type

AC

Lamp holder

E27

Dimming phase cut-off

Yes

Length

135 mm

Nominal voltage

230 V

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Dimming depending on control gear

Yes

Material cover

Glass transparent

Adjustability

Rotating and swivelling

Type of control gear

Not required

Light sharing

Symmetric

Lamp type

HV halogen lamp

Suitable for lamp power

75 W

No dim function

Yes

Reflector

High-gloss

Protection class

I

Type of wiring

Ending

Light distributor

Reflector

Power factor

1

Light output

Direct

Max. system power

75 W

Number of poles

3

Connection type

Screwed terminal

Connectable conductor cross section

0.75 – 2.5 mm²

Suitable for pedestal/floor mounting

Yes

Outer diameter

155 mm

Luminous flux

0 – 3000 lm

Mounting Type

Decke

Light output

1-seitig

Height

< 700 mm

Suitable for wall mounting

Yes

Degree of protection (IP)

IP54

Beam angle adjustable

Continuously variable

Unified Glare Ratio (UGR)

1

Shape

Eckig
