Article number 692244

Bollard light

type ..2244

360,70

Specifications

Albert bollard light 692244 made of stainless steel, with borosilicate glass. Fitted for 1 mains voltage halogen lamp QT 14 40 Watt, socket G9. Ready for connection with mounting plate for screwing onto a foundation or . 690010.protection class IP 44 – protection class : d 120 x d 60 x 700 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
HV halogen lamp
Lamp holder
G9
Suitable for lamp power
0 - 40 W
Material cover
Glass structured
Weight 2,50 kg
Lowest energy efficiency class of the exchangeable lamp

E

Voltage type

AC

Suitable for number of lamps

1

Max. system power

40 W

Highest energy efficiency class of the exchangeable lamp

A++

Light sharing

Symmetric

Nominal voltage

230 V

With base plate

Yes

Diameter

60 mm

Degree of protection (IP)

IP44

Protection class

I

Power factor

1

Height/depth

700 mm

Type of luminaire

Bollard luminaire

Type of wiring

Suitable for through wiring

Light output

2-seitig

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Style

Edelstahl, Modern

Light type

Standleuchte

Height

< 700 mm, 700 – 1000 mm

Housing material quality

Stainless steel 304 (V2A)

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Type of control gear

Not required

Width

110 mm

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 27 KB

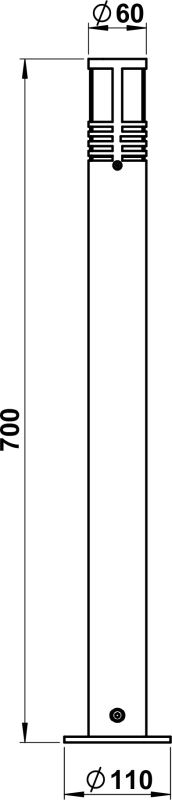

Dimensioned drawing
PDF | 19 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210294 - G 294, glass tube borosilicate show
Accessories
690010 - Earth mounting base type ..0010 show
90750103 - LED Pin show
