Article number 690206

Wall light

type ..0206

288,00

Specifications

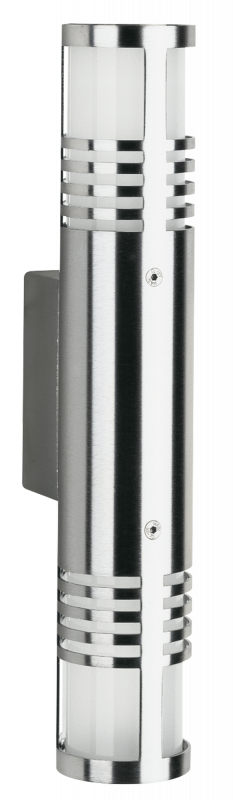

Albert wall lamp 690206
made of stainless steel, with borosilicate glass and mounting plate for 2 mains voltage halogen lamps QT 14 40 Watt, socket G9.protection class IP 44 – protection class : d 60 x 330 x 90 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
HV halogen lamp
Lamp holder
G9
Suitable for lamp power
80 W
Material cover
Glass structured
Weight 1,50 kg
Max. system power

80 W

Degree of protection (IP)

IP44

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Suitable for number of lamps

2

Voltage type

AC

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Type of control gear

Not required

Nominal voltage

230 V

Dimming depending on control gear

Yes

Power factor

1

Height/depth

330 mm

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct/indirect

Style

Edelstahl, Modern

No dim function

Yes

Light output

2-seitig

Height

< 700 mm

Mounting Type

Wand

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Type of wiring

Ending

Protection class

I

Light type

Wandleuchte

Conductor cross section

2.5 mm²

Suitable for wall mounting

Yes

Outer diameter

60 mm

Length

95 mm

Surface protection housing

Untreated

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Number of poles

3

Connection type

Screwed terminal

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 31 KB

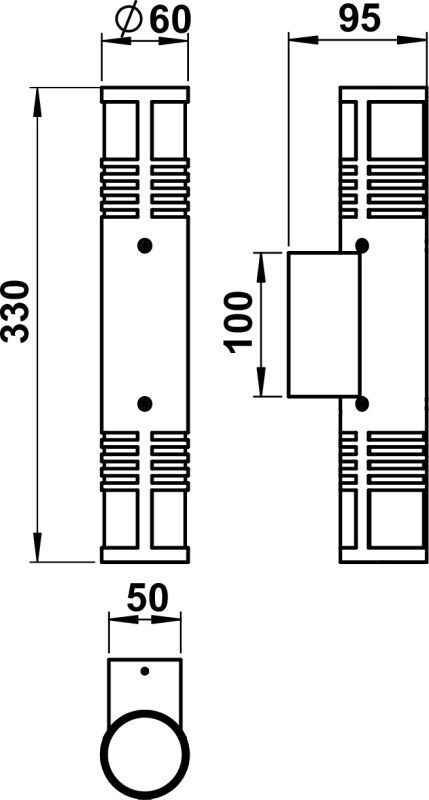

Dimensioned drawing
PDF | 24 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210294 - G 294, glass tube borosilicate show
Accessories
691000 - Corner bracket type ..1000 show
90750103 - LED Pin show
