Data sheet
Article number 692303

Wall floodlight

type ..2303

This product is no longer in our assortment.

Nicht lieferbar

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Specifications

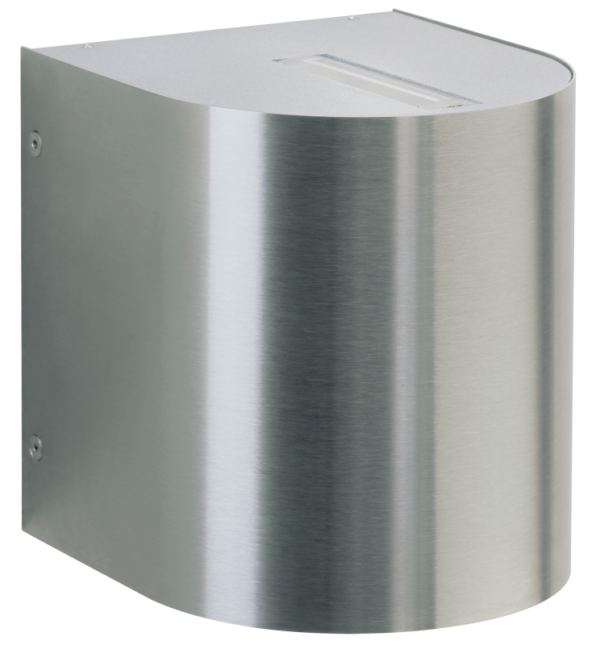

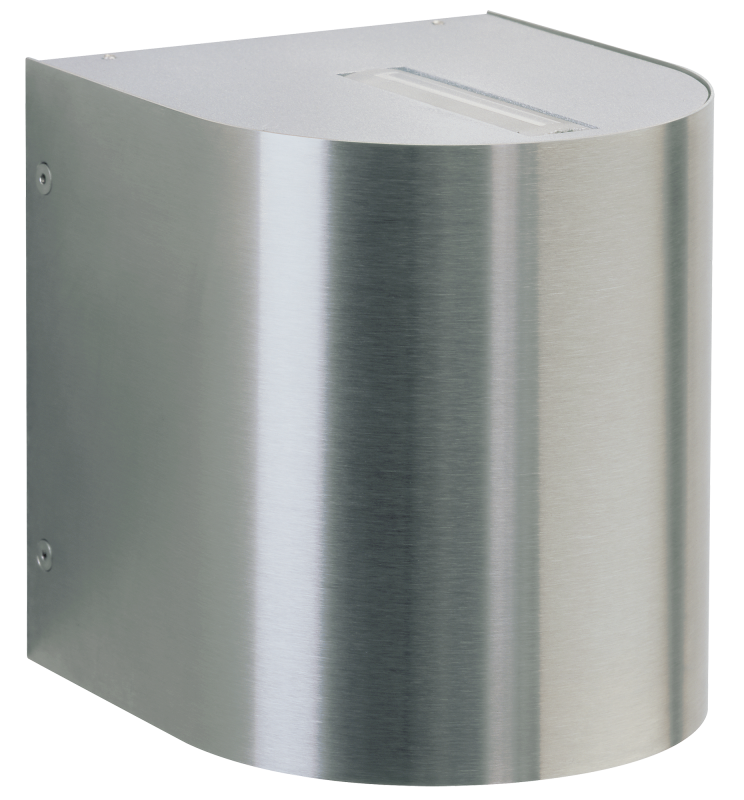

Albert wall spotlight 692303

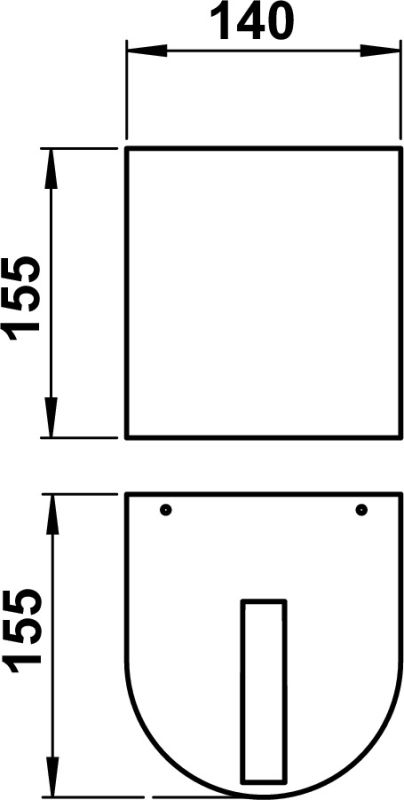

with 2-sided light emission, narrow at top and bottom, made of stainless steel with lens optics. Cast aluminium mounting plateInstalled for 1 x HIT-TC-CE 35W, socket G8.5Protection class IP 44 – protection class : 155 x 140 x 155 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Metal halide lamp
Lamp holder
G8.5
Suitable for lamp power
35 W
Material cover
Glass transparent
Weight 2,90 kg
Suitable for wall mounting

Yes
Voltage type

AC
Suitable for pedestal/floor mounting

Yes
Nominal voltage

230 V
With control gear

Yes
Suitable for number of lamps

1
Surface brushed

Yes
Type of control gear

Electronic ballast
Type of wiring

Ending
Light sharing

Symmetric
Width

140 mm
No dim function

Yes
Adjustability

Not adjustable
Light distributor

Focal lens
Beam angle adjustable

Continuously variable
Height

< 700 mm
Protection class

I
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Degree of protection (IP)

IP44
Light outlet

Direct/indirect
Light outlet

2-seitig
Number of poles

3
Unified Glare Ratio (UGR)

1
Conductor cross section

2.5 mm²
Luminous flux

3500 lm
Height/depth

155 mm
Suitable for surface mounting

Yes
Power factor

0.9
Beam angle

Medium beam 21-40°
Exchangeable control gear

Yes
Connectable conductor cross section

0.75 – 2.5 mm²
Length

155 mm
Max. system power

35 W
Connection type

Screwed terminal
Shape

Angular, Eckig
Spare parts
90220337 - G 337, prism glass, borosilicate show
