Article number 692305

Wall floodlight

type ..2305

This product is no longer in our assortment.

Nicht lieferbar

Description

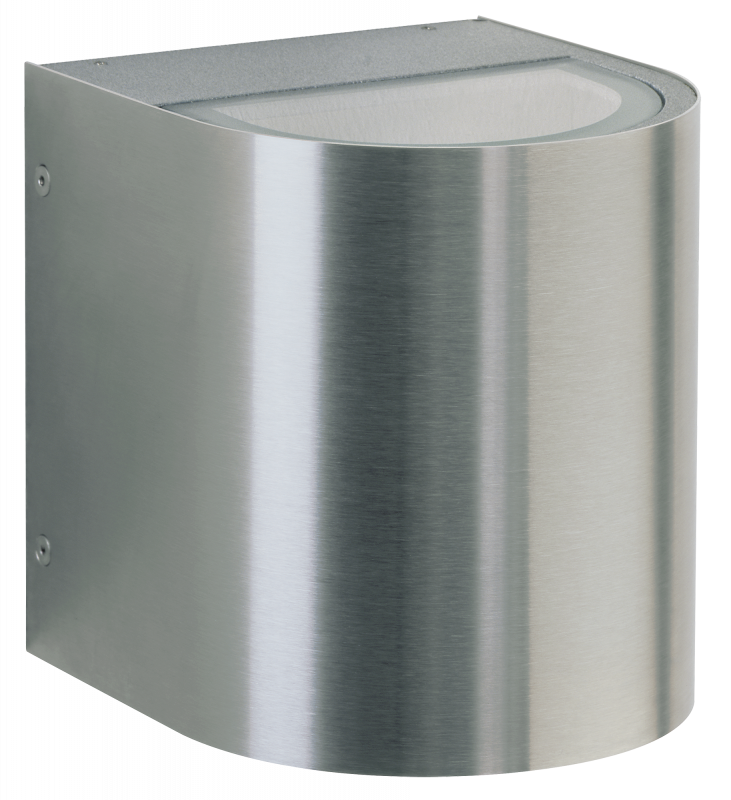

Albert wall spotlight 692305
with 2-sided light emission, wide at the top and bottom, made of stainless steel with borosilicate glass. Cast aluminium mounting plateInstalled for 1 x HIT-TC-CE 35W, socketG8.5Protection class IP 44 – protection class : 155 x 140 x 155 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Metal halide lamp
Lamp holder
G8.5
Suitable for lamp power
35 W
Material cover
Glass transparent
Documents and files
Assembly instruction
Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90220336 - G 336, half-oval pane ESG show

Additional information

Weight 2,70 kg
Suitable for wall mounting

Yes

Suitable for pedestal/floor mounting

Yes

Type of control gear

Electronic ballast

Nominal voltage

230 V

Lamp type

Metal halide lamp

Suitable for number of lamps

1

Lamp holder

G8.5

Material housing

Stainless steel

Surface brushed

Yes

Voltage type

AC

With control gear

Yes

Suitable for lamp power

35 W

Type of wiring

Ending

Light sharing

Symmetric

Width

140 mm

Material cover

Glass transparent

No dim function

Yes

Adjustability

Not adjustable

Colour housing

Stainless steel

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Degree of protection (IP)

IP44

Light output

Direct/indirect

Beam angle adjustable

Continuously variable

Light output

2-seitig

Number of poles

3

Height

< 700 mm

Connectable conductor cross section

0.75 – 2.5 mm²

Luminous flux

3500 lm

Height/depth

155 mm

Suitable for surface mounting

Yes

Power factor

0.9

Conductor cross section

2.5 mm²

Beam angle

Medium beam 21-40°

Length

155 mm

Max. system power

35 W

Connection type

Screwed terminal

Exchangeable control gear

Yes

Unified Glare Ratio (UGR)

1

Shape

Eckig
