Data sheet

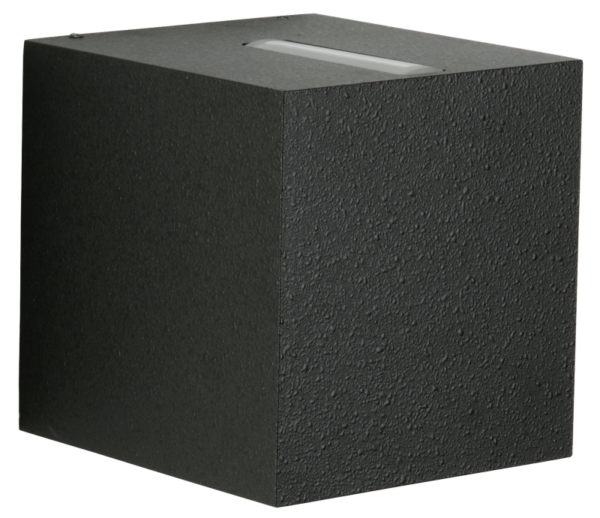

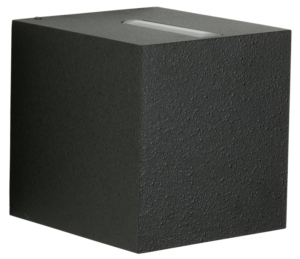

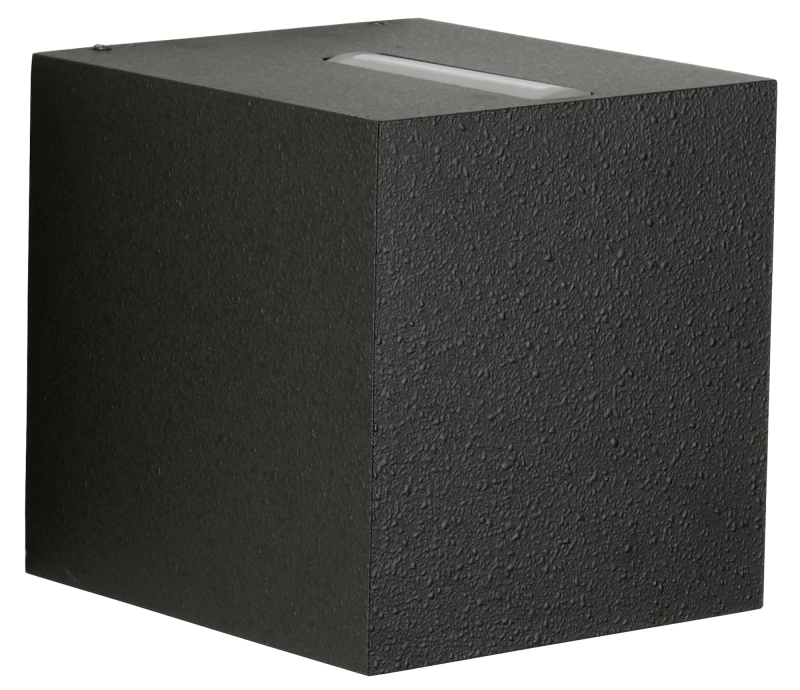

Wall floodlight Black Product Image Article 662309

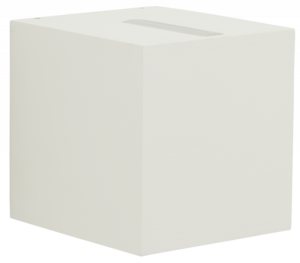

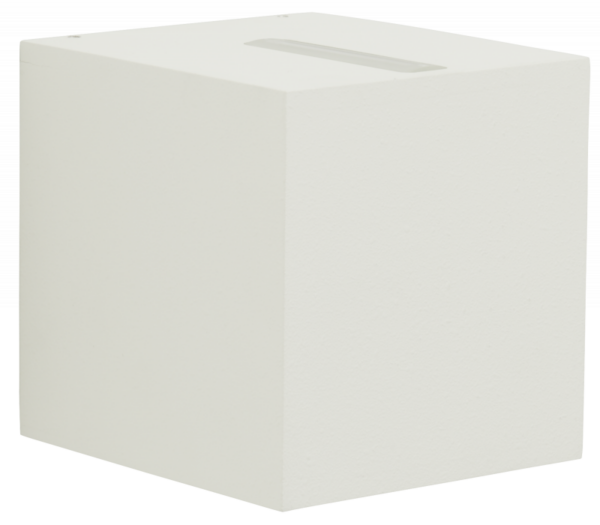

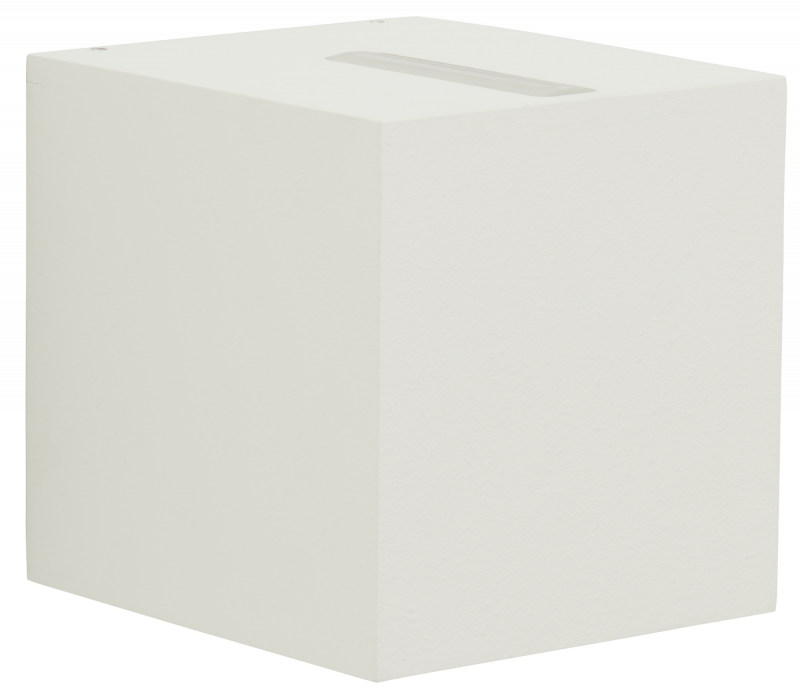

Wall floodlight White Product Image Article 682309

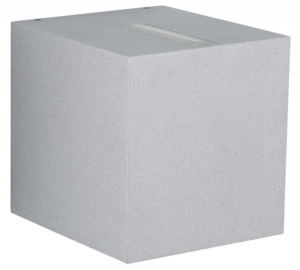

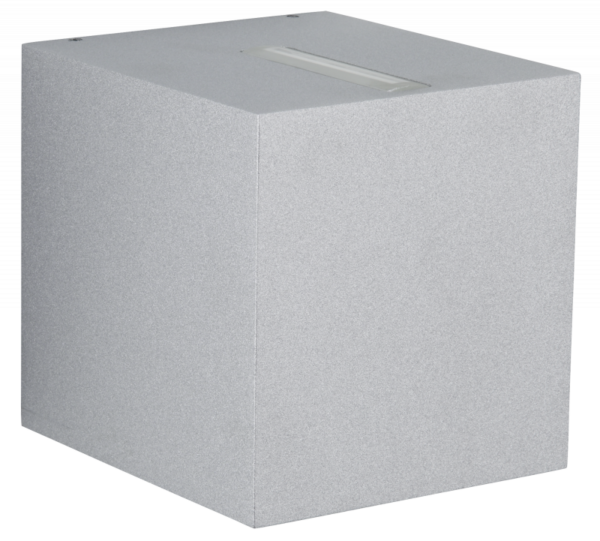

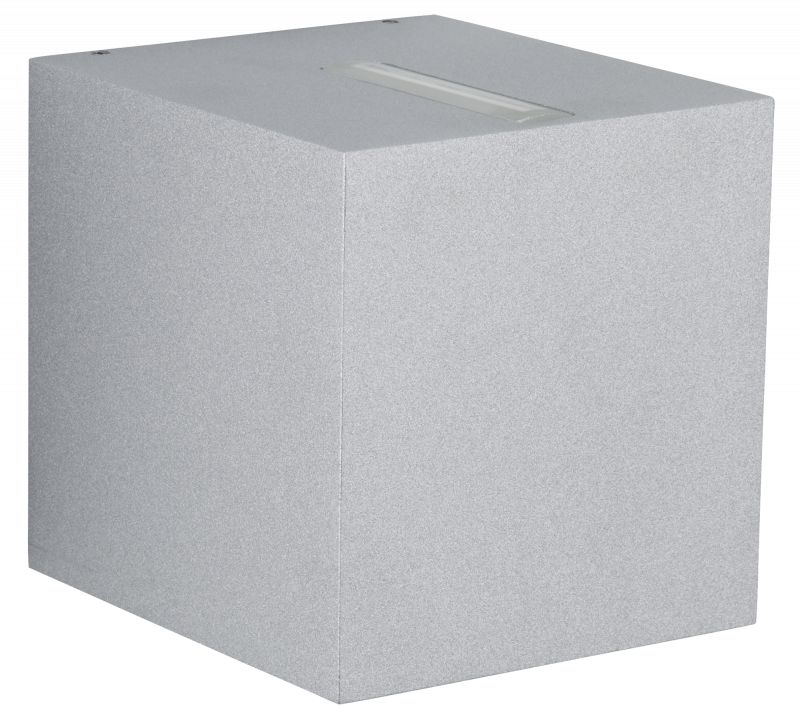

Wall floodlight Silver Product Image Article 692309
Article number Select a color, please

Wall floodlight

type ..2309

This product is no longer in our assortment.

Nicht lieferbar

Manufacturer's Suggested Retail Price excl. VAT

Find Retailer

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
Metal halide lamp
Lamp holder
G8.5
Suitable for lamp power
35 W
Material cover
Glass transparent
Spare parts
90220337 - G 337, prism glass, borosilicate show

Additional information

Weight N/A
Suitable for surface mounting

Yes
Suitable for pedestal/floor mounting

Yes
Colour housing

Black, Silver, White
Lamp type

Metal halide lamp
Suitable for number of lamps

1
Lamp holder

G8.5
Material housing

Aluminium
Connection type

Screwed terminal
Suitable for lamp power

35 W
Adjustability

Not adjustable
Material cover

Glass transparent
Light distributor

Focal lens

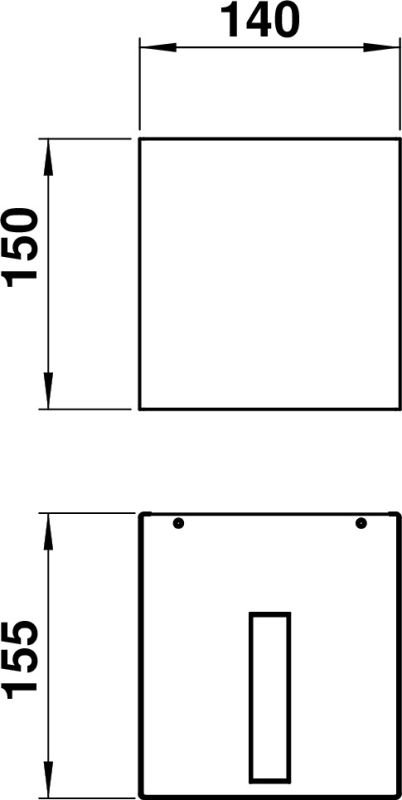

Width

140 mm
Surface protection

Lacquered
Voltage type

AC
Nominal voltage

230 V
Type of control gear

Electronic ballast
With control gear

Yes
Light sharing

Symmetric
Power factor

0.9
Light output

Direct/indirect
Type of wiring

Ending
Number of poles

3
Conductor cross section

2.5 mm²
Height/depth

150 mm
Protection class

I
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Max. system power

35 W
Beam angle

Medium beam 21-40°
Connectable conductor cross section

0.75 – 2.5 mm²
Light output

2-seitig
Length

155 mm
Luminous flux

3500 lm
Height

< 700 mm
Suitable for wall mounting

Yes
Exchangeable control gear

Yes
Degree of protection (IP)

IP44
Beam angle adjustable

Continuously variable
Unified Glare Ratio (UGR)

1
No dim function

Yes
Shape

Angular, Eckig
