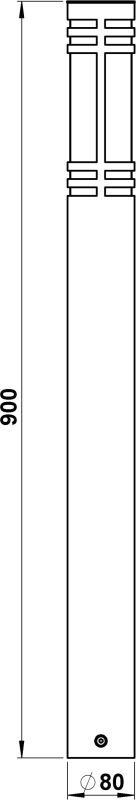

Bollard light Stainless steel Dimensioned drawing Article 692068
Bollard light Stainless steel Product Image Article 692068
Bollard light Stainless steel Dimensioned drawing Article 692068
Article number 692068

Bollard light

type ..2068

€443,00

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

Albert bollard light 692068 in stainless steel, with opal glass. Equipped for 1 x compact fluorescent lamp 18 W, socket E27. Ready for connection with mounting plate for screwing onto a foundation or . 690010.protection class IP 44 – protection class : d 80 x 900 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Glass opal
Documents and files
Assembly instruction
download PDF 30.93 KB
Dimensioned drawing
download PDF 13.15 KB
Light distribution curve - Eulumdat/LDT
download LDT 1.54 KB
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
Accessories
690010 - Earth mounting base type ..0010 show
90750309 - LED Retrofit Tube show

Additional information

Weight 3,20 kg
Connection type

Screwed terminal
Voltage type

AC
Colour housing

Stainless steel
Nominal voltage

230 V
Max. system power

20 W
Material cover

Glass opal
Type of control gear

Not required
With base plate

Yes
Material housing

Stainless steel
Diameter

80 mm
Type of wiring

Suitable for through wiring
Protection class

I
Suitable for lamp power

1 – 20 W
Lamp type

LED exchangeable
Suitable for number of lamps

1
Lamp holder

E27
Highest energy efficiency class of the exchangeable lamp

A++
Type of luminaire

Bollard luminaire
Housing material quality

Stainless steel 304 (V2A)
Height/depth

900 mm
Light sharing

Symmetric
Light output

Direct/indirect
Beam angle

Open beam/diffuse
Lowest energy efficiency class of the exchangeable lamp

E
Degree of protection (IP)

IP44
Number of poles

3
Conductor cross section

2.5 mm²
Light output

2-seitig
Style

Edelstahl, Modern
Light type

Standleuchte
Height

700 – 1000 mm
Power factor

1
Shape

Eckig
