Data sheet
Article number 690258

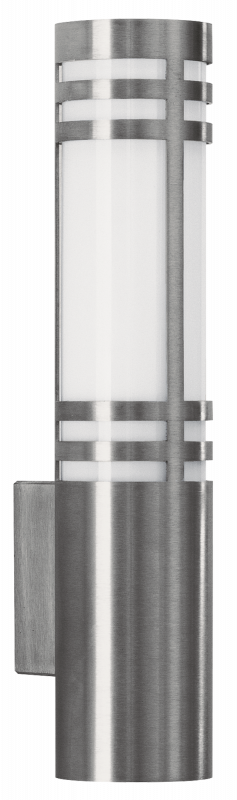

Wall light
type ..0258
€236,80
Manufacturer's Suggested Retail Price excl. 19% VAT
Description
Albert wall lamp 690258 in stainless steel with opal glass and cast aluminium mounting plate. Equipped for 1 x compact fluorescent lamp with integrated. EVG lamp 18 W, socket E27.protection class IP 44 – protection class : d 80 x 380 x 120 mm
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Glass opal
Documents and files
Assembly instruction

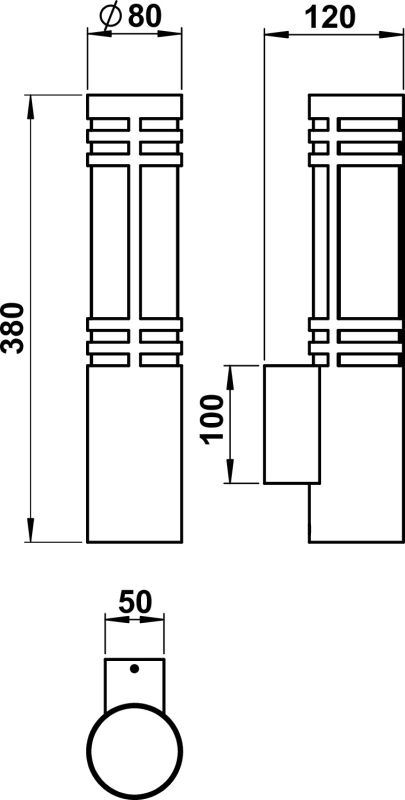

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Additional information
| Weight | 2,00 kg |
|---|---|
| Style | Edelstahl, Modern |
| Material housing | Stainless steel |
| Material cover | Glass opal |
| Voltage type | AC |
| Type of control gear | Not required |
| Protection class | I |
| Lamp type | LED exchangeable |
| Suitable for number of lamps | 1 |
| Light sharing | Symmetric |
| Colour housing | Stainless steel |
| Lamp holder | E27 |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Suitable for surface mounting | Yes |
| Dimming manufacturer's proprietary system | Yes |
| Light output | 1-seitig |
| Height/depth | 380 mm |
| Power factor | 1 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Degree of protection (IP) | IP44 |
| Nominal voltage | 230 V |
| No dim function | Yes |
| Dimming depending on control gear | Yes |
| Mounting Type | Wand |
| Beam angle | Open beam/diffuse |
| Light output | Direct |
| Suitable for lamp power | 1 – 20 W |
| Unified Glare Ratio (UGR) | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Max. system power | 20 W |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Type of wiring | Ending |
| Conductor cross section | 2.5 mm² |
| Suitable for wall mounting | Yes |
| Outer diameter | 80 mm |
| Light type | Wandleuchte |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Height | < 700 mm |
| Surface protection housing | Untreated |
| Length | 120 mm |
| Connection type | Screwed terminal |
| Number of poles | 3 |
| Shape | Eckig |
