Data sheet
Article number
Select a color, please

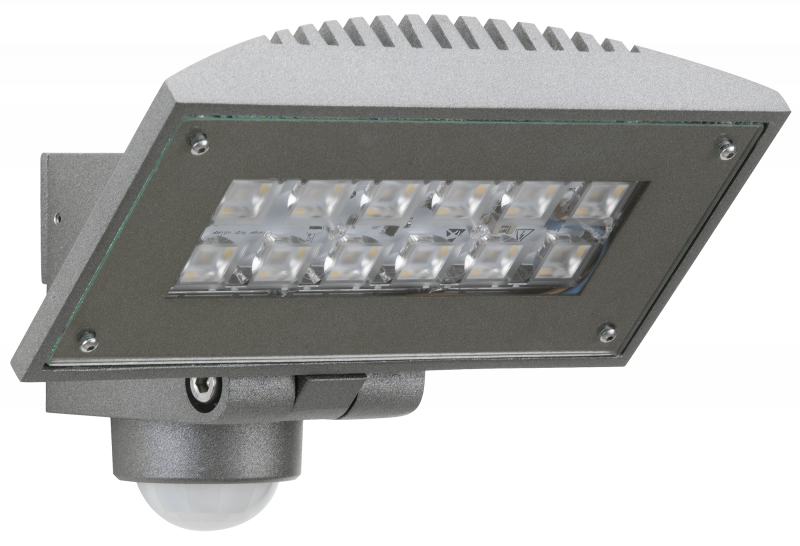

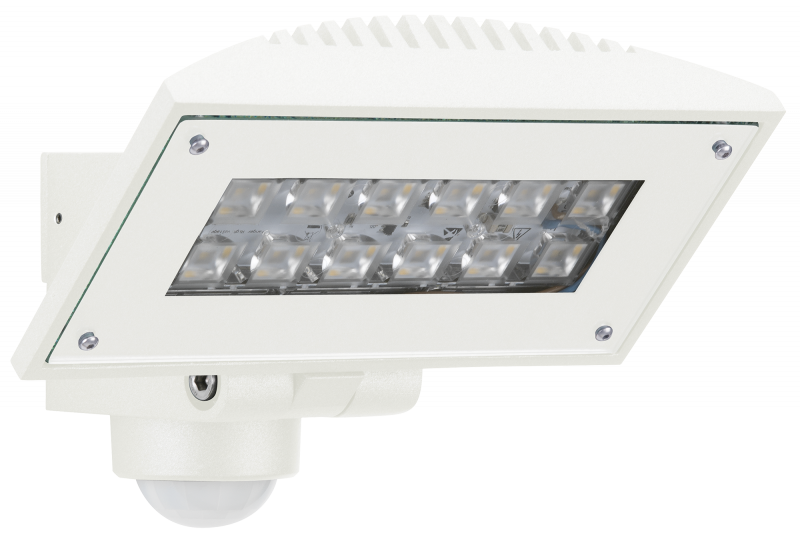

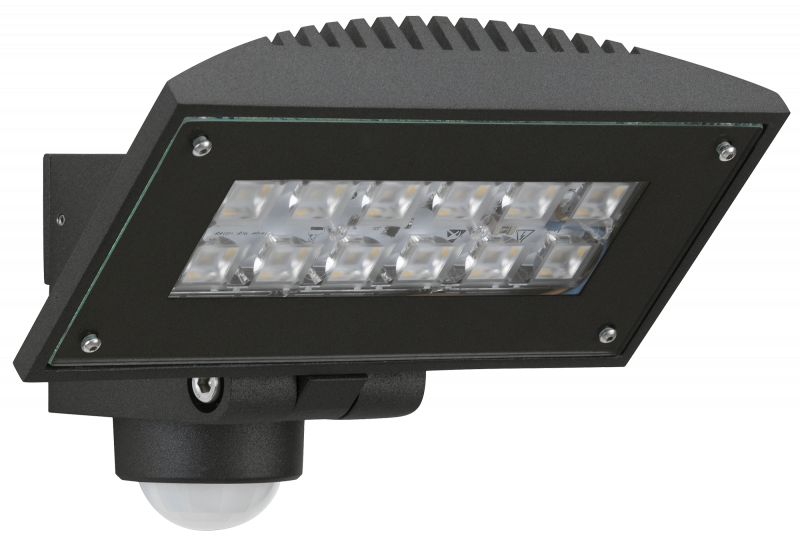

Wall floodlight
type ..2428
This product is no longer in our assortment.
Nicht lieferbar
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire with integrated motion detector.
Luminaire with integrated twilight switch.
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
The luminaire body can be rotated.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
With movement sensor
Yes
With light sensor
Yes
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
13 W
Rated luminous flux according to IEC 62722-2-1
1250 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

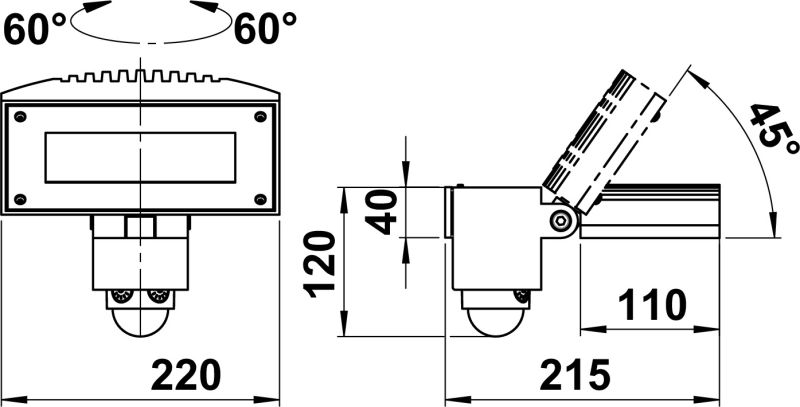

Dimensioned drawing
Instruction manual
Offertext
For: 622428
Offertext
For: 662428
Offertext
For: 682428
Offertext
For: 692428
Full catalog 21 / 22
Spare parts
| 90220484 - G 484, glass pane borosilicate | show |
Additional information
| Weight | N/A |
|---|---|
| Suitable for surface mounting | Yes |
| Number of poles | 3 |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| Material housing | Aluminium |
| Surface protection | Lacquered |
| Colour housing | Anthracite, Black, Silver, White |
| Material cover | Glass transparent |
| Rated luminous flux according to IEC 62722-2-1 | 1250 lm |
| Nominal voltage | 230 V |
| Lamp type | LED exchangeable |
| Adjustability | Rotating and swivelling |
| No dim function | Yes |
| Degree of protection (IP) | IP54 |
| With control gear | Yes |
| With light sensor | Yes |
| Type of control gear | LED operating device voltage-controlled |
| Voltage type | AC |
| Dimming phase cut-off | Yes |
| Suitable for pedestal/floor mounting | Yes |
| Power factor | 0.9 |
| Colour rendering index CRI | 80-89 |
| Height | < 700 mm |
| Length | 215 mm |
| Width | 220 mm |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Luminous flux | 1250 lm |
| Light sharing | Symmetric |
| Beam angle | Medium beam 21-40° |
| Height/depth | 120 mm |
| Connection type | Screwed terminal |
| With movement sensor | Yes |
| Colour of light | White |
| Suitable for lamp power | 13 W |
| Max. system power | 13 W |
| Colour temperature | 3000 K |
| Connectable conductor cross section | 0.75 – 2.5 mm² |
| Conductor cross section | 2.5 mm² |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Type of wiring | Ending |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Suitable for wall mounting | Yes |
| Exchangeable control gear | Yes |
| Flickering value Pst LM | 1 |
| Light output | 1-seitig |
| Stroboscope effect value SVM | 0.4 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Unified Glare Ratio (UGR) | 1 |
| Beam angle adjustable | Continuously variable |
| Light output | Direct |
| Protection class | I |
| Shape | Eckig |
