Article number Select a color, please

Wall floodlight

type ..2428

This product is no longer in our assortment.

Nicht lieferbar

Clear
Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Rotatable lamp Product-Icon The luminaire body can be rotated.
The luminaire body can be rotated.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
With movement sensor
Yes
With light sensor
Yes
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
13 W
Rated luminous flux according to IEC 62722-2-1
1250 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

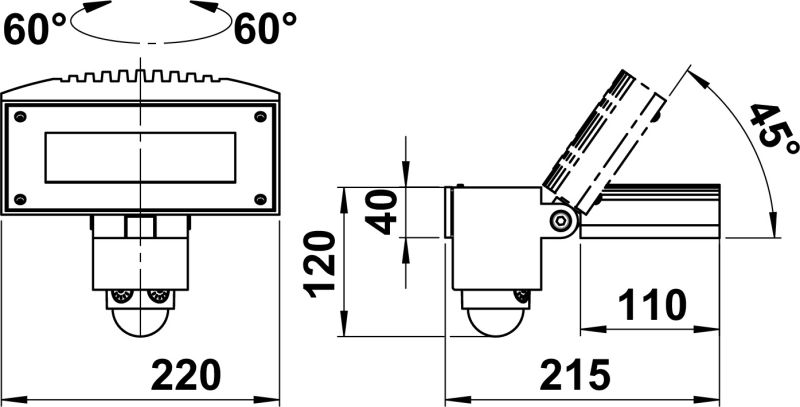

Dimensioned drawing
Instruction manual
Offertext
For: 622428
Offertext
For: 662428
Offertext
For: 682428
Offertext
For: 692428
Full catalog 21 / 22
Spare parts
90220484 - G 484, glass pane borosilicate show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Dimming phase cut-off

Yes

With light source

Yes

Suitable for number of lamps

1

Material housing

Aluminium

Surface protection

Lacquered

Colour housing

Anthracite, Black, Silver, White

Material cover

Glass transparent

Nominal voltage

230 V

Lamp type

LED exchangeable

Adjustability

Rotating and swivelling

Suitable for pedestal/floor mounting

Yes

Power factor

0.9

No dim function

Yes

Degree of protection (IP)

IP54

Colour rendering index CRI

80-89

Number of poles

3

Rated luminous flux according to IEC 62722-2-1

1250 lm

With control gear

Yes

With light sensor

Yes

Type of control gear

LED operating device voltage-controlled

Voltage type

AC

Stroboscope effect value SVM

0.4

Length

215 mm

Width

220 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Luminous flux

1250 lm

Light sharing

Symmetric

Beam angle

Medium beam 21-40°

Flickering value Pst LM

1

Light output

1-seitig

Colour of light

White

Suitable for lamp power

13 W

Max. system power

13 W

Colour temperature

3000 K

Connectable conductor cross section

0.75 – 2.5 mm²

Conductor cross section

2.5 mm²

Max. number of luminaires per miniature circuit breaker C16

30

Max. number of luminaires per miniature circuit breaker B16

20

Energy efficiency class of the provided exchangeable built-in lamp

E

Unified Glare Ratio (UGR)

1

Beam angle adjustable

Continuously variable

Light output

Direct

Protection class

I

Type of wiring

Ending

Exchangeable control gear

Yes

Height/depth

120 mm

Connection type

Screwed terminal

With movement sensor

Yes

Colour consistency (McAdam ellipse)

SDCM3

Height

< 700 mm

Suitable for wall mounting

Yes

Shape

Eckig
