Data sheet
Article number
Select a color, please

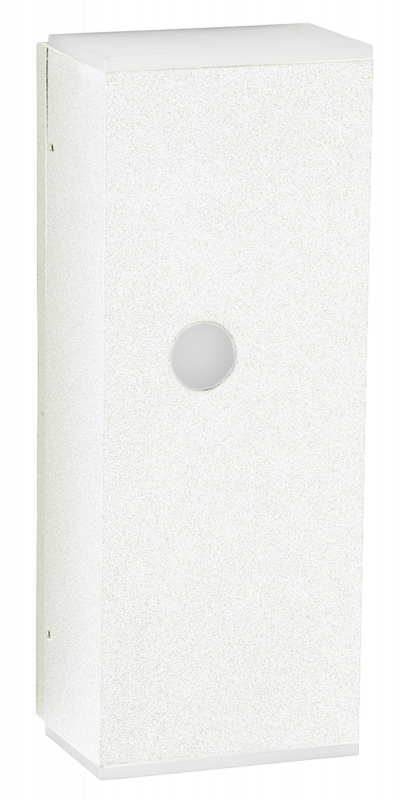

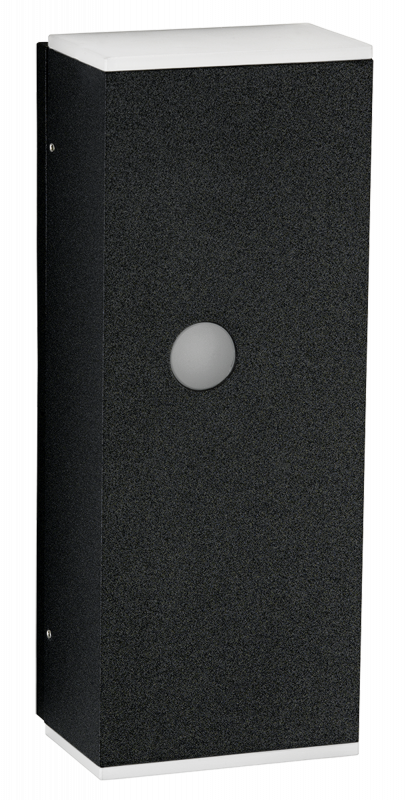

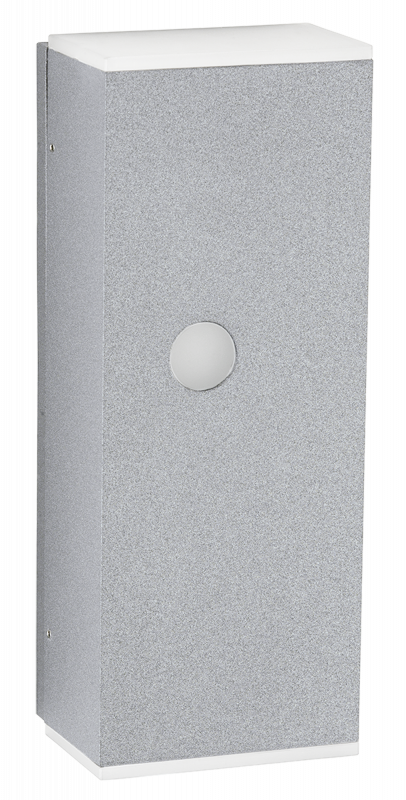

Wall floodlight
type ..2490
€389,10 – €447,50
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire with integrated motion detector.
Luminaire with integrated twilight switch.
Luminaire has IP 44 protection.
Luminaire has a 2-sided light emission (top/bottom).
The reflector lamp is replaceable.
Luminaire with integrated HF presence detector.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
With movement sensor
Yes
With HF presence detector
Yes
With light sensor
Yes
Lamp type
HV halogen lamp
Lamp holder
GU10
Suitable for lamp power
50 W
Colour temperature
3000 K
Material cover
Glass transparent
| Weight | N/A |
|---|---|
| Suitable for surface mounting | Yes |
| Degree of protection (IP) | IP44 |
| Luminous flux | 0 – 3000 lm |
| Max. system power | 100 W |
| No dim function | Yes |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Protection class | I |
| Type of wiring | Ending |
| Power factor | 0.9, 1 |
| Width | 100 mm |
| Height/depth | 240 mm |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Unified Glare Ratio (UGR) | 1 |
| Beam angle adjustable | Continuously variable |
| Colour of light | White |
| Suitable for wall mounting | Yes |
| Height | < 700 mm |
| Light outlet | 2-seitig |
| Shape | Eckig |
| Coverage | 360 ° |
| Number of poles | 3 |
| Light outlet | Direct/indirect |
| Dimming manufacturer's proprietary system | Yes |
| Dimming phase cut-off | Yes |
| Light sharing | Symmetric |
| Beam angle | Medium beam 21-40° |
| Connectable conductor cross section | 0.75 – 2.5 mm² |
| Voltage type | AC |
| Suitable for number of lamps | 2 |
| Length | 75 mm |
| Surface protection | Lacquered |
| Adjustability | Not adjustable |
| Nominal voltage | 230 V |
| Suitable for pedestal/floor mounting | Yes |
| Type of control gear | Not required |
| Style | Landhaus |
