Article number Select a color, please

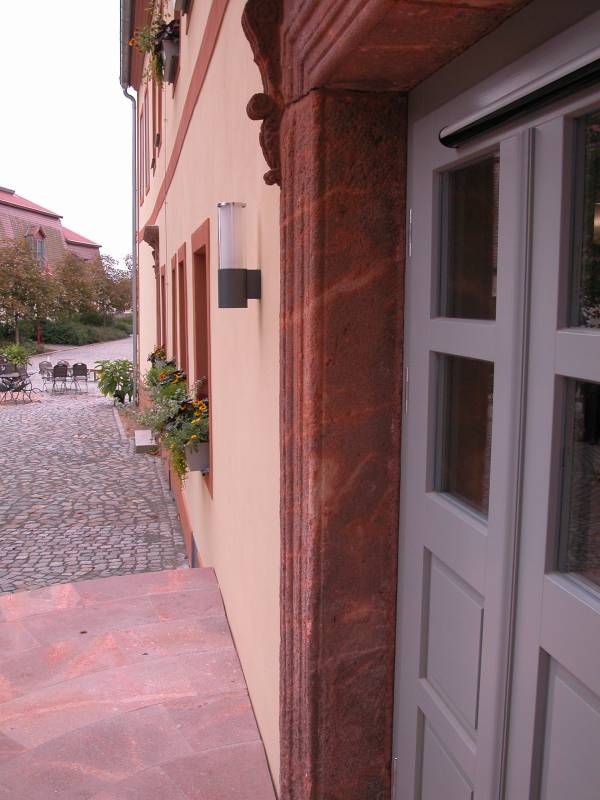

Wall lamp

type ..0311

215,70247,90

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Aluminium, Stainless steel
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Plastic, opal
Weight N/A
Suitable for wall mounting

Yes

Suitable for surface mounting

Yes

Outer diameter

100 mm

Type of control gear

Not required

Height/depth

355 mm

Suitable for number of lamps

1

Dimming manufacturer's proprietary system

Yes

Lowest energy efficiency class of the exchangeable lamp

E

Dimming phase cut-on

Yes

Power factor

1

Nominal voltage

230 V

Dimming phase cut-off

Yes

Max. system power

20 W

Voltage type

AC

Length

145 mm

Style

Bicolor, Edelstahl, Modern

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Dimming depending on control gear

Yes

Degree of protection (IP)

IP44

Connection type

Screwed terminal

Beam angle

Open beam/diffuse

Light output

Direct

Protection class

I

Highest energy efficiency class of the exchangeable lamp

A++

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Type of wiring

Ending

Number of poles

3

Light sharing

Symmetric

No dim function

Yes

Height

< 700 mm

Surface protection housing

Lacquered, Untreated

Conductor cross section

2.5 mm²

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 31 KB

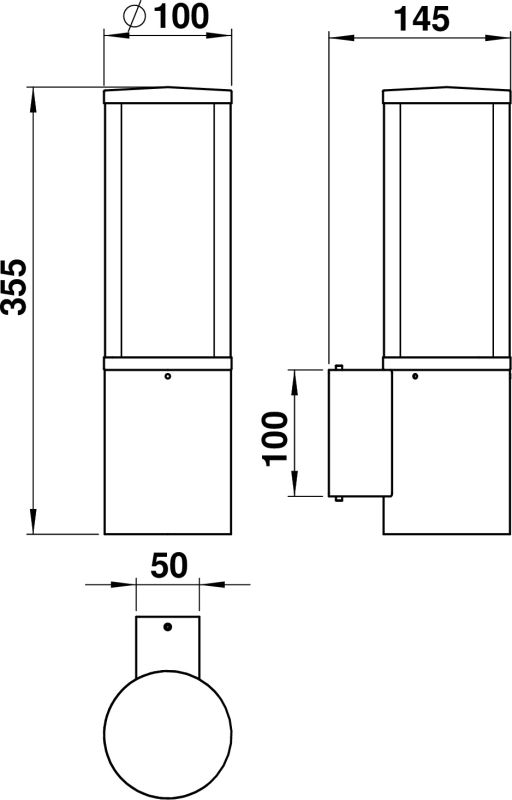

Dimensioned drawing
PDF | 14 KB
Light distribution curve - Eulumdat/LDT
For: 620311
LDT | 2 KB
Light distribution curve - Eulumdat/LDT
For: 660311, 680311, 690311
LDT | 2 KB
Offertext
For: 660311
TXT | 249 B
Offertext
For: 680311
TXT | 249 B
Offertext
For: 690311
TXT | 264 B
Offertext
For: 620311
TXT | 272 B
Full catalog 21 / 22
For: 620311
PDF | 39 MB
Full catalog 21 / 22
For: 660311, 680311, 690311
PDF | 39 MB
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
90260370 - G 370, Acrylic tube show
Accessories
621002 - Corner bracket type ..1002, Anthracite
Für: 620311
show
661002 - Corner bracket type ..1002, Black
Für: 660311
show
681002 - Corner bracket type ..1002, White
Für: 680311
show
691002 - Corner bracket type ..1002, Stainless steel
Für: 690311
show
90750309 - LED Retrofit Tube show
