Article number Select a color, please

Base luminaire

type ..0545

229,60264,10

Clear
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W, 1 - 75 W
Material cover
Plastic, opal
Documents and files
Assembly instruction

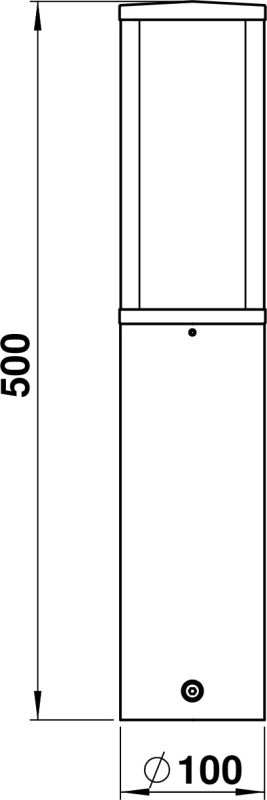

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
For: 620545
Light distribution curve - Eulumdat/LDT
For: 660545, 680545, 690545
Offertext
For: 660545
Offertext
For: 680545
Offertext
For: 690545
Offertext
For: 620545
Full catalog 21 / 22
For: 620545
Full catalog 21 / 22
For: 660545, 680545, 690545
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
Accessories
690010 - Earth mounting base type ..0010 show
90750309 - LED Retrofit Tube show

Additional information

Weight N/A
Type of luminaire

Pedestal luminaire

Type of control gear

Not required

Nominal voltage

230 V

Voltage type

AC

Material cover

Plastic, opal

Colour housing

Anthracite, Black, Silver, White

With base plate

Yes

Material housing

Aluminium

Lamp holder

E27

Type of wiring

Suitable for through wiring

Surface protection

Lacquered

Lamp type

LED exchangeable

Lowest energy efficiency class of the exchangeable lamp

E

Highest energy efficiency class of the exchangeable lamp

A++

Power factor

1

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Number of poles

3

Suitable for number of lamps

1

Diameter

100 mm

Shape

Eckig

Max. system power

20 W, 75 W

Suitable for lamp power

1 – 20 W, 1 – 75 W

Protection class

I

Degree of protection (IP)

IP44

Style

Bicolor, Modern

Height

< 700 mm

Width

100 mm

Height/depth

500 mm

Light sharing

Symmetric

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Light output

2-seitig
