Article number Select a color, please

Wall light

type ..0233

196,50225,90

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium

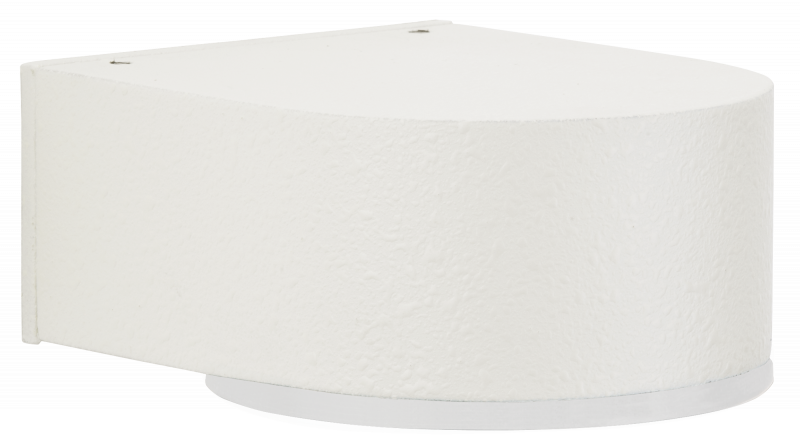

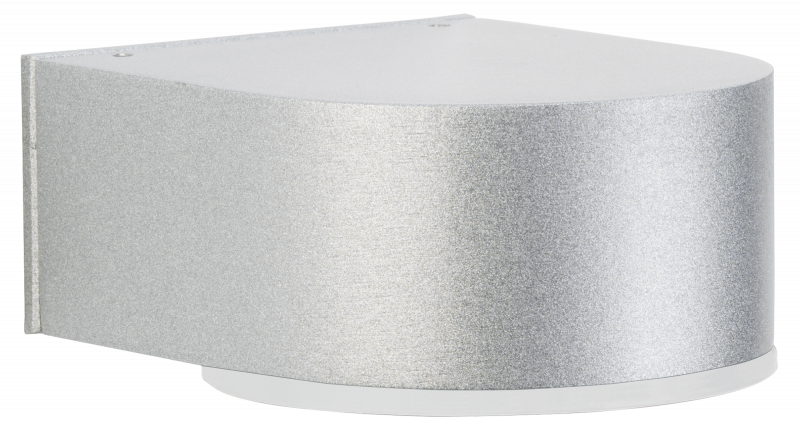

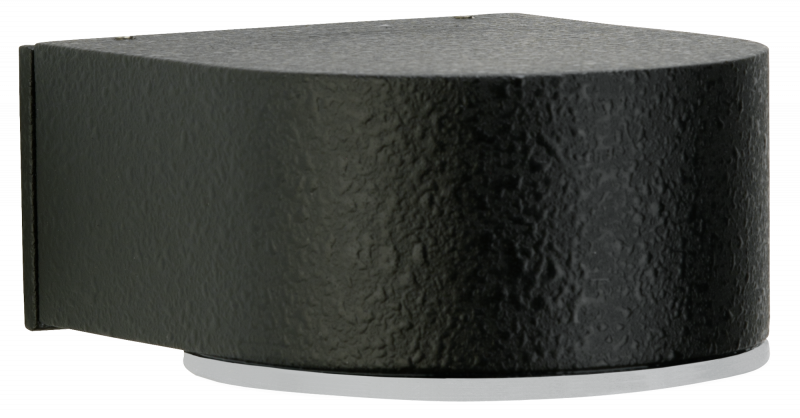

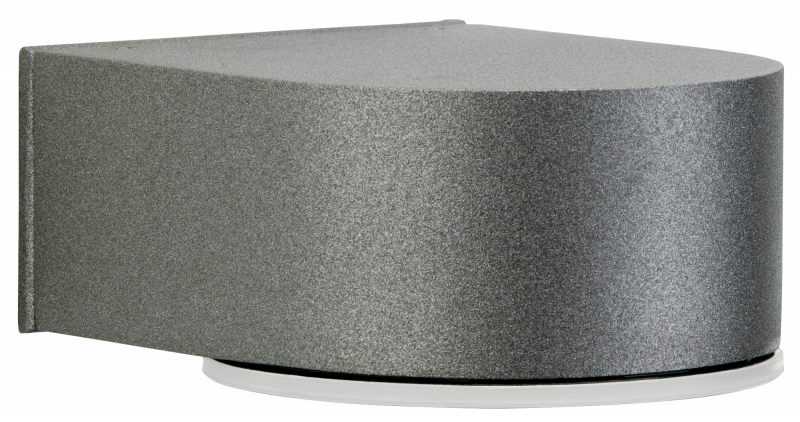

Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
3 W
Rated luminous flux according to IEC 62722-2-1
330 lm
Colour temperature
3000 K
Material cover
Glass structured
Weight N/A
Suitable for wall mounting

Yes

Type of control gear

LED operating device voltage-controlled

Nominal voltage

230 V

Degree of protection (IP)

IP44

Light output

Direct

Suitable for surface mounting

Yes

Suitable for number of lamps

1

Light type

Wandleuchte

Voltage type

AC/DC

With control gear

No, Yes

Colour rendering index CRI

80-89

Conductor cross section

2.5 mm²

Max. system power

3 W

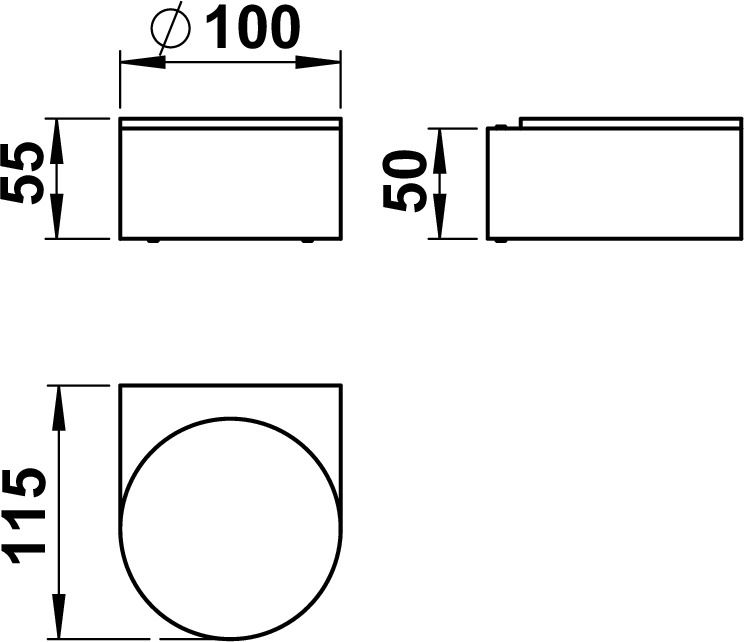

Outer diameter

100 mm

Height/depth

55 mm

Length

115 mm

Dimming phase cut-off

No, Yes

Light sharing

Symmetric

No dim function

Yes

Energy efficiency class of the provided exchangeable built-in lamp

E

Beam angle

Open beam/diffuse

Number of poles

3

Light output

1-seitig

Flickering value Pst LM

1

Type of wiring

Ending

Max. number of luminaires per miniature circuit breaker B16

20

Style

Bicolor, Modern

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Protection class

I

Power factor

0.9

Connection type

Screwed terminal

Colour of light

White

Mounting Type

Wand

Height

< 700 mm

Exchangeable control gear

No, Yes

Surface protection housing

Lacquered

Photobiological safety according to EN 62471

RG1

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Stroboscope effect value SVM

0.4

Dimming depending on control gear

Yes

Max. number of luminaires per miniature circuit breaker C16

30

Unified Glare Ratio (UGR)

1

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 89 KB
Dimensioned drawing
PDF | 99 KB
Light distribution curve - Eulumdat/LDT
LDT | 20 KB
Offertext
For: 620233
TXT | 253 B
Offertext
For: 660233
TXT | 253 B
Offertext
For: 680233
TXT | 253 B
Offertext
For: 690233
TXT | 237 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90220483 - G 483, single-pane safety glass show
