Data sheet
Article number 690636
Wall lamp
type ..0636
€316,40
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

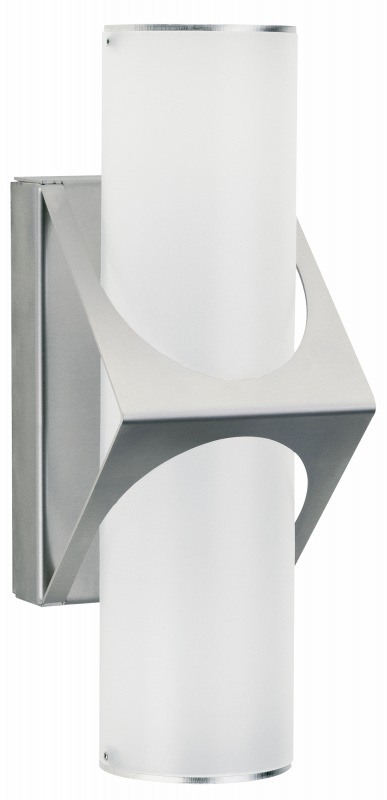

Albert wall lamp 690636
made of stainless steel with separate mounting plate and satin borosilicate glass. Equipped with 1 x LED 16 W, 3000K. Protection class I IP 44 – Protection class : 100 x 300 x 130 mm.
Features
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Plastic, structured
Documents and files
Assembly instruction

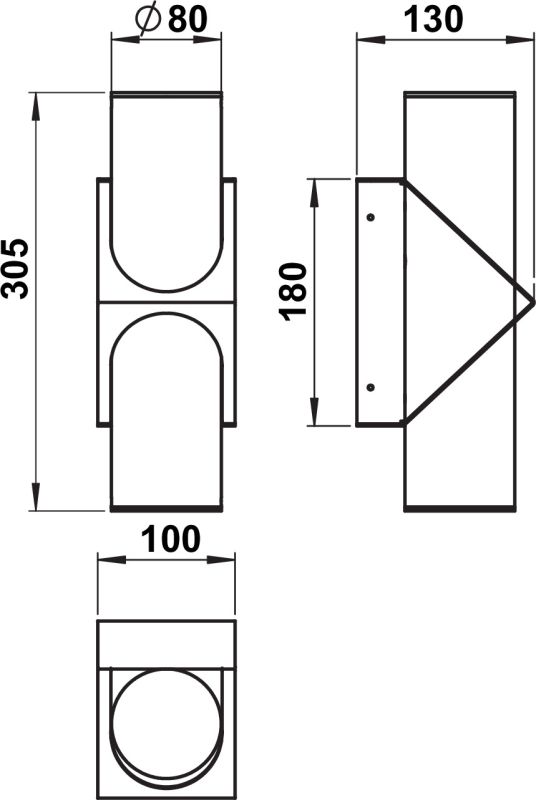

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
| 10260270 - G-270, acrylic satin finish, 300 mm | show |
Additional information
| Weight | 1,80 kg |
|---|---|
| Photobiological safety according to EN 62471 | RG1 |
| Type of control gear | LED operating device voltage-controlled |
| Dimming phase cut-off | Yes |
| Dimming depending on control gear | Yes |
| Colour rendering index CRI | 80-89 |
| With control gear | Yes |
| Lamp type | LED exchangeable |
| Suitable for number of lamps | 1 |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| No dim function | Yes |
| Colour housing | Stainless steel |
| Material cover | Plastic, structured |
| Protection class | I |
| Length | 130 mm |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Number of poles | 3 |
| Outer diameter | 80 mm |
| Suitable for surface mounting | Yes |
| Light sharing | Symmetric |
| Conductor cross section | 2.5 mm² |
| Type of wiring | Ending |
| Voltage type | AC |
| Nominal voltage | 230 V |
| Material housing | Stainless steel |
| Beam angle | Open beam/diffuse |
| With light source | Yes |
| Surface protection housing | Untreated |
| Degree of protection (IP) | IP44 |
| Power factor | 0.9 |
| Height/depth | 305 mm |
| Height | < 700 mm |
| Exchangeable control gear | Yes |
| Flickering value Pst LM | 1 |
| Rated luminous flux according to IEC 62722-2-1 | 1600 lm |
| Colour of light | White |
| Colour temperature | 3000 K |
| Style | Edelstahl, Modern |
| Mounting Type | Wand |
| Light type | Wandleuchte |
| Suitable for lamp power | 16 W |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Unified Glare Ratio (UGR) | 1 |
| Connection type | Screwed terminal |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Suitable for wall mounting | Yes |
| Max. system power | 16 W |
| Light output | 1-seitig |
| Light output | Direct |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Stroboscope effect value SVM | 0.4 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Shape | Eckig |
