Article number Select a color, please

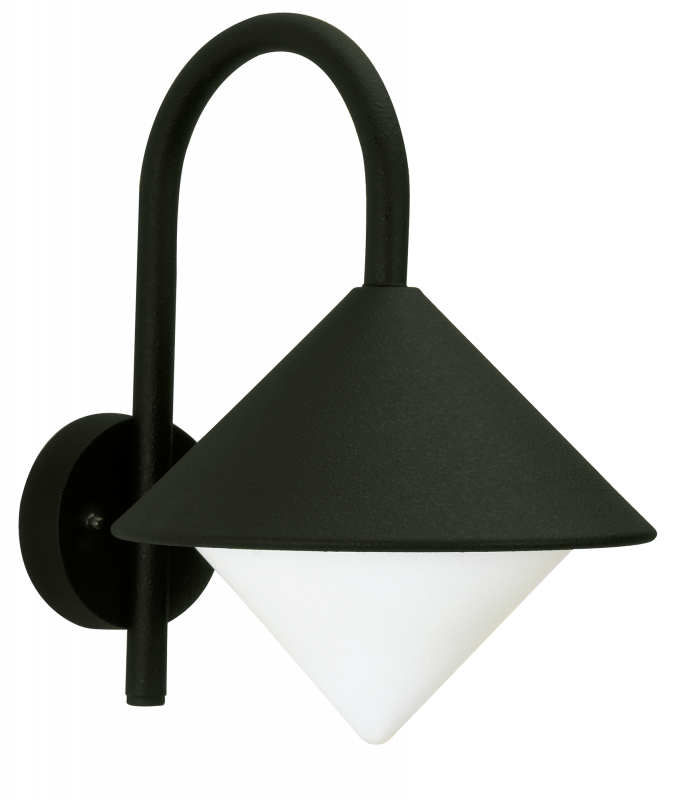

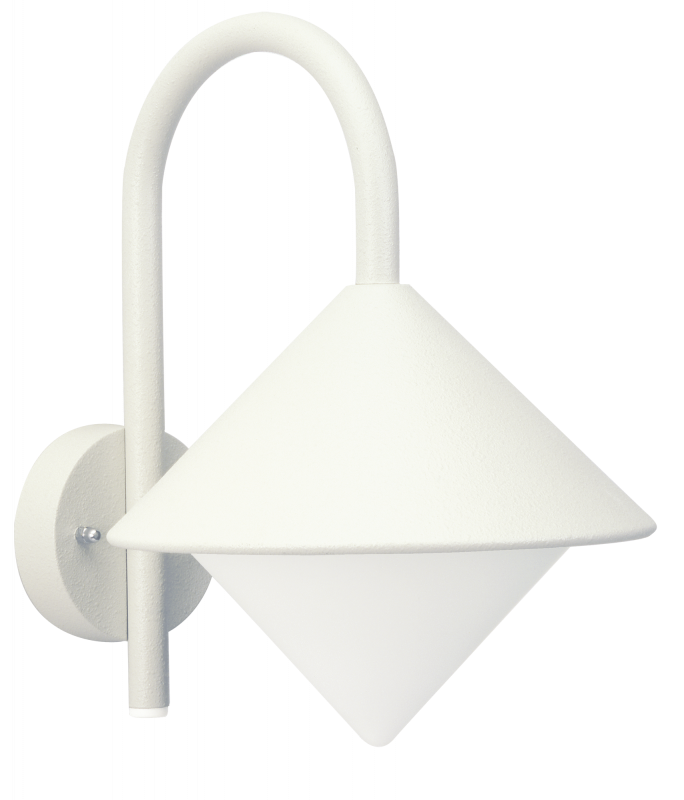

Wall lamp

type ..0645

153,50176,40

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

No dim function

Yes

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Voltage type

AC

Light sharing

Symmetric

Power factor

1

Type of control gear

Not required

Nominal voltage

230 V

Suitable for number of lamps

1

Protection class

I

Dimming manufacturer's proprietary system

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Lowest energy efficiency class of the exchangeable lamp

E

Dimming depending on control gear

Yes

Outer diameter

260 mm

Light output

Direct

Height/depth

345 mm

Degree of protection (IP)

IP44

Highest energy efficiency class of the exchangeable lamp

A++

Length

335 mm

Beam angle

Open beam/diffuse

Max. system power

75 W

Connection type

Screwed terminal

Shape

Eckig

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Height

< 700 mm

Number of poles

3

Conductor cross section

2.5 mm²

Style

Edelstahl, Modern

Surface protection housing

Lacquered

Type of wiring

Ending

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1

Documents and files
Data sheet
Assembly instruction
PDF | 27 KB

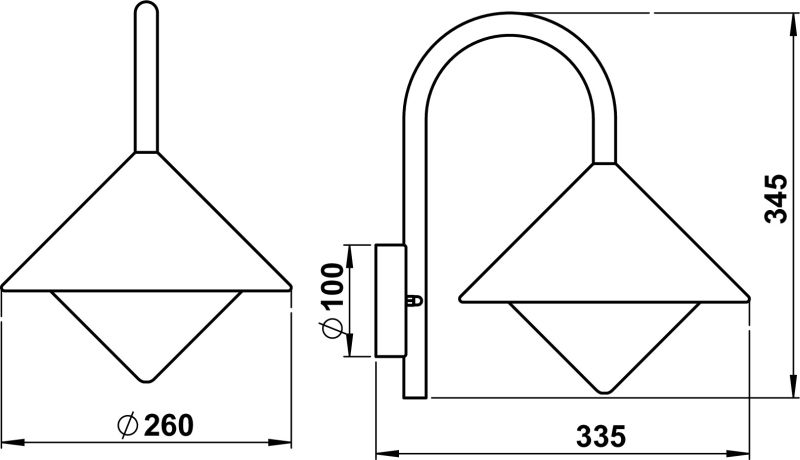

Dimensioned drawing
PDF | 39 KB
Light distribution curve - Eulumdat/LDT
LDT | 1 KB
Offertext
For: 660645
TXT | 181 B
Offertext
For: 680645
TXT | 181 B
Offertext
For: 690645
TXT | 158 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210307 - G 307, glass opal, pointed, with thread 85 mm show
Accessories
661005 - Corner bracket round type ..1005, Black
Für: 660645
show
681005 - Corner bracket round type ..1005, White
Für: 680645
show
691005 - Corner bracket round type ..1005, Stainless steel
Für: 690645
show
90750100 - LED Retrofit Classic show
