Article number Select a color, please

Bollard light

type ..2249

264,50304,00

Clear
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

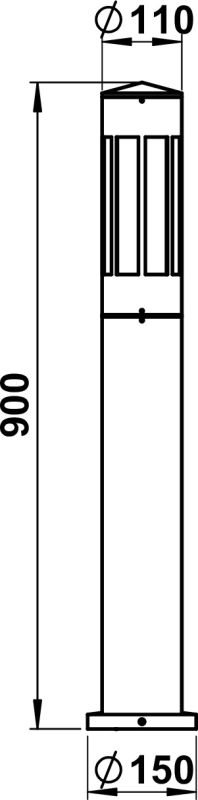

Dimensioned drawing
Light distribution curve
Offertext
For: 662249
Offertext
For: 682249
Offertext
For: 692249
Full catalog 21 / 22
Spare parts
90210252 - G 252, glass opal matt, round show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show
90750309 - LED Retrofit Tube show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Highest energy efficiency class of the exchangeable lamp

A++

Type of control gear

Not required

Nominal voltage

230 V

Voltage type

AC

Colour housing

Black, Silver, White

Material cover

Glass opal

Surface protection

Lacquered

Material housing

Aluminium

Lamp holder

E27

Suitable for number of lamps

1

Lamp type

HV halogen lamp, Incandescent lamp

With base plate

Yes

Power factor

1

Width

150 mm

Shape

Eckig

Light type

Standleuchte

Conductor cross section

2.5 mm²

Number of poles

3

Type of wiring

Suitable for through wiring

Diameter

110 mm

Length

120 mm

Lowest energy efficiency class of the exchangeable lamp

A

Height/depth

900 mm

Connection type

Screwed terminal

Max. system power

75 W

Suitable for lamp power

1 – 75 W

Protection class

I

Degree of protection (IP)

IP44

Height

700 – 1000 mm

Style

Modern
