Article number 690560

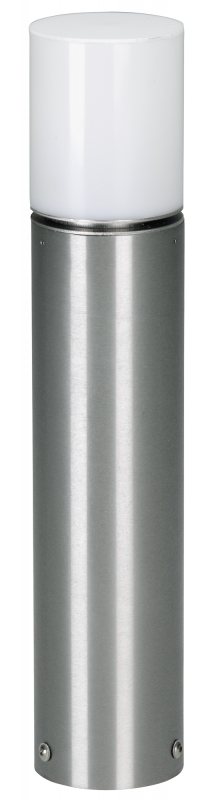

Base luminaire

type ..0560

332,60

Description

Albert base luminaire 690560 made of stainless steel with acrylic glass for 1 x ESL or LED Retrofit max. 15 Watt socket E27ready for connection with mounting plate for screwing onto a foundation or onto the ground mounting base type no. 690010.protection class IP 44 – protection class : d 100 x H 500 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
HV halogen lamp
With light source
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Colour temperature
3000 K
Material cover
Plastic, opal
Documents and files
Assembly instruction

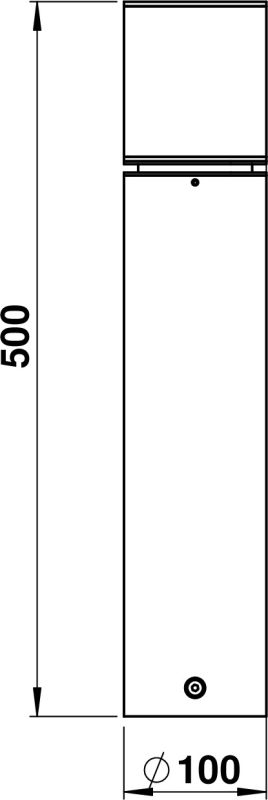

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts

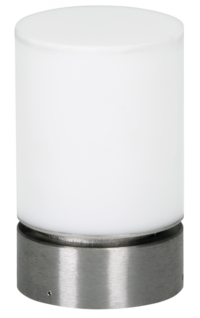

90260084 - G 84, tubular cylinder Opal L = 112 mm PMMA show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show

Additional information

Weight 2,40 kg
Beam angle

Open beam/diffuse

Colour rendering index CRI

80-89

Light output

Direct/indirect

Lamp type

HV halogen lamp

Suitable for number of lamps

1

With light source

Yes

Degree of protection (IP)

IP44

Lowest energy efficiency class of the exchangeable lamp

E

Colour housing

Stainless steel

Material cover

Plastic, opal

Type of control gear

Not required

Voltage type

AC

Nominal voltage

230 V

With base plate

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Lamp holder

E27

Height/depth

500 mm

Protection class

I

Suitable for lamp power

1 – 75 W

Max. system power

75 W

Colour of light

White

Colour temperature

3000 K

Material housing

Stainless steel

Type of wiring

Suitable for through wiring

Light sharing

Symmetric

Style

Edelstahl, Modern

Type of luminaire

Pedestal luminaire

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Height

< 700 mm

Housing material quality

Stainless steel 304 (V2A)

Energy efficiency class of the provided exchangeable built-in lamp

E

Number of poles

3

Diameter

100 mm

Power factor

1

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Light output

2-seitig

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Shape

Eckig
