Article number Select a color, please

Path light

type ..2026

288,20331,80

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

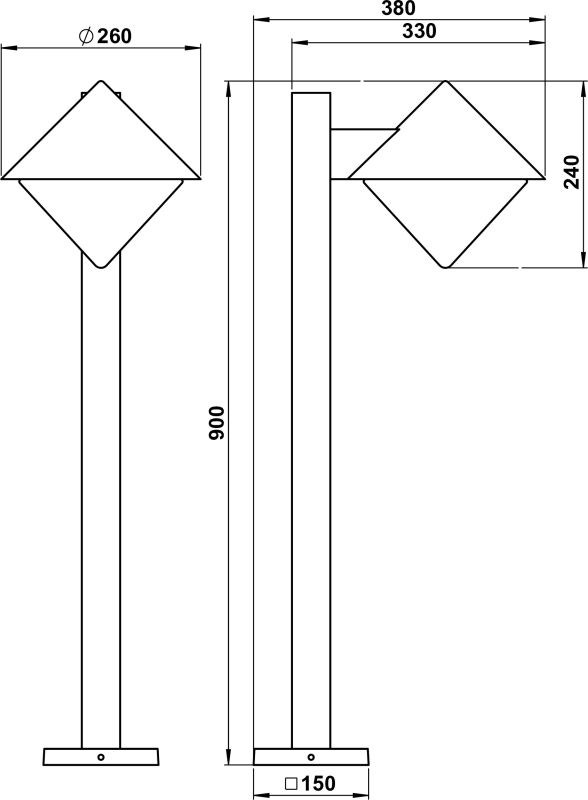

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 662026
Offertext
For: 682026
Offertext
For: 692026
Full catalog 21 / 22
Spare parts
90210100 - G 100 Opal glass frosted, cone shape pointed show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Highest energy efficiency class of the exchangeable lamp

A++

Suitable for number of lamps

1

Lamp type

HV halogen lamp, Incandescent lamp

Material housing

Aluminium

Surface protection

Lacquered

Lowest energy efficiency class of the exchangeable lamp

E

Type of control gear

Not required

Nominal voltage

230 V

Height/depth

900 mm

Length

380 mm

Width

150 mm

Power factor

1

Material cover

Glass opal

Colour housing

Black, Silver, White

With base plate

Yes

Lamp holder

E27

Voltage type

AC

Type of wiring

Suitable for through wiring

Diameter

260 mm

Style

Modern

Max. system power

75 W

Suitable for lamp power

1 – 75 W

Protection class

I

Light sharing

Symmetric

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Light output

2-seitig

Connection type

Screwed terminal

Degree of protection (IP)

IP44

Height

700 – 1000 mm

Conductor cross section

2.5 mm²

Number of poles

3

Shape

Eckig
