Article number Select a color, please

Wall and ceiling light

type ..6180

198,90223,30

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium, Stainless steel
Colour housing
Anthracite, Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

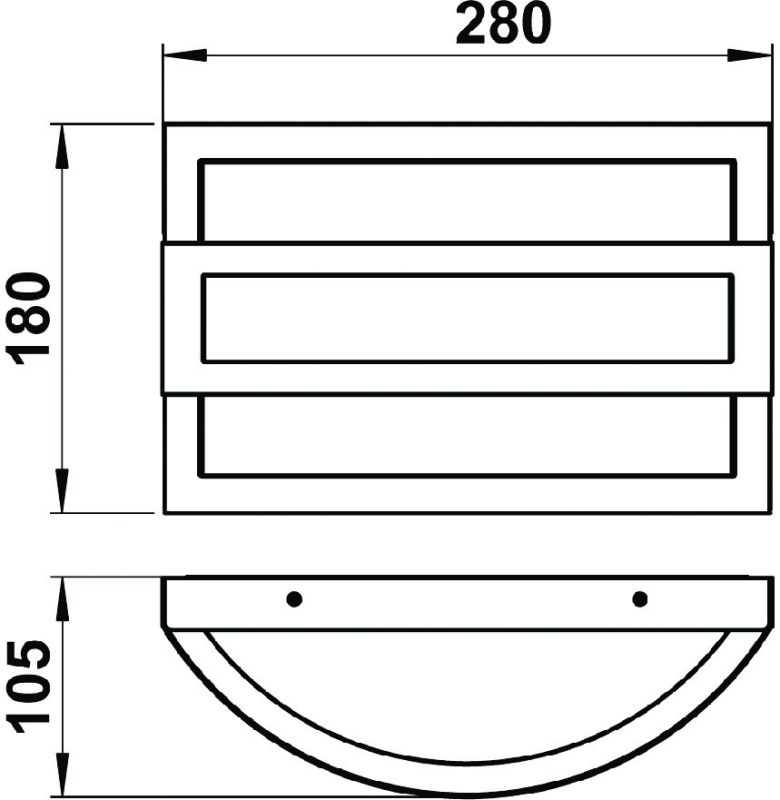

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 626180
Offertext
For: 696180
Full catalog 21 / 22
For: 626180
Full catalog 21 / 22
For: 696180
Spare parts
90210154 - G 154, glass opal matt show
Accessories
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Dimming phase cut-on

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Material cover

Glass opal

Dimming depending on control gear

Yes

Dimming manufacturer's proprietary system

Yes

Protection class

I

Height/depth

180 mm

Colour housing

Anthracite, Stainless steel

Voltage type

AC

Lamp holder

E27

Dimming phase cut-off

Yes

Suitable for number of lamps

1

Material housing

Aluminium, Stainless steel

Highest energy efficiency class of the exchangeable lamp

A++

Conductor cross section

2.5 mm²

Nominal voltage

230 V

Type of control gear

Not required

Shape

Eckig

Width

280 mm

Style

Bicolor, Edelstahl, Modern

Mounting Type

Decke, Wand

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Length

105 mm

No dim function

Yes

Suitable for lamp power

1 – 75 W

Max. system power

75 W

Power factor

1

Connection type

Screwed terminal

Type of wiring

Ending

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Light output

1-seitig

Height

< 700 mm

Surface protection housing

Untreated

Number of poles

3

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1
