Article number Select a color, please

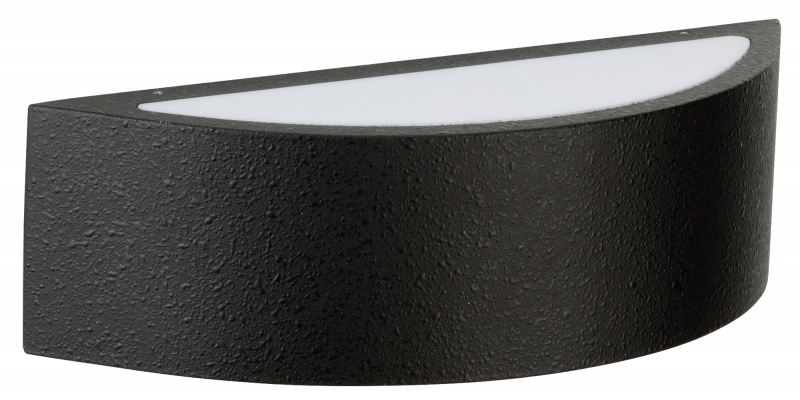

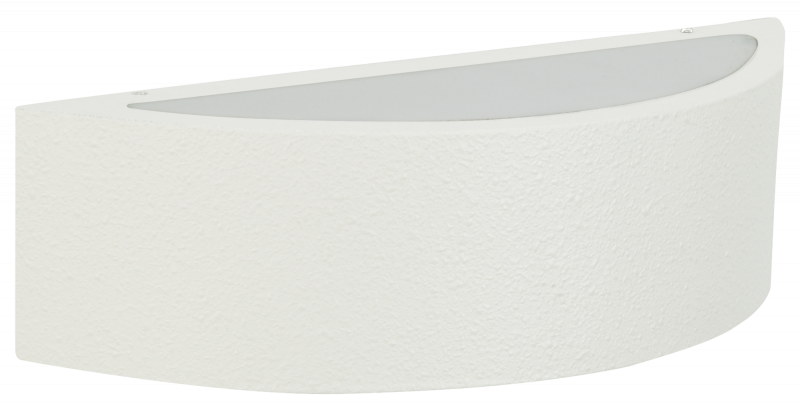

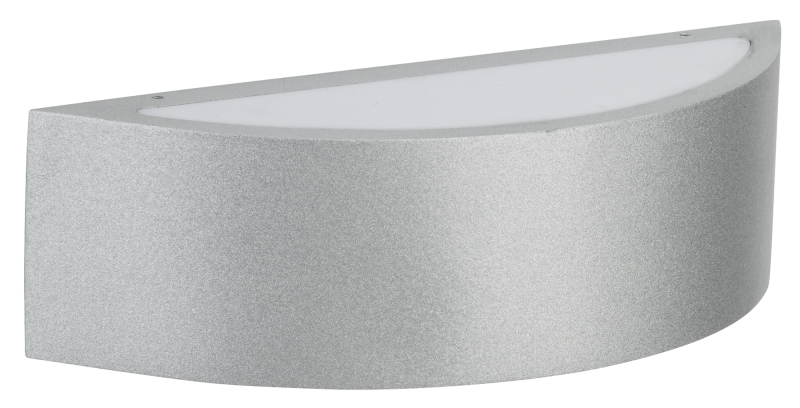

Wall lamp

type ..6222

193,50222,70

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
Compact fluorescent lamp
Lamp holder
G24d-2
Suitable for lamp power
18 W
Material cover
Glass opal
Documents and files
Assembly instruction

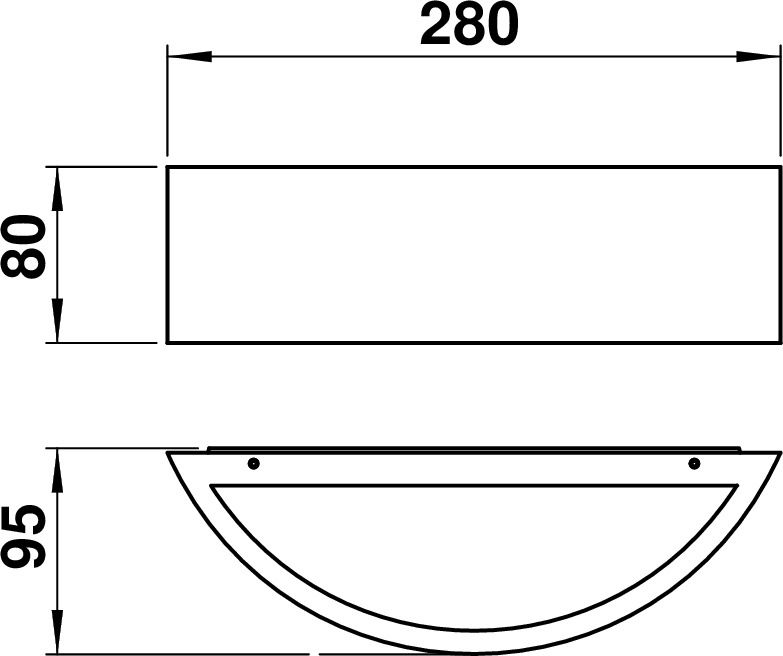

Dimensioned drawing
Offertext
For: 666222
Offertext
For: 686222
Offertext
For: 696222
Full catalog 21 / 22
Spare parts
90220438 - G 438, frosted flashed glass ESG show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Lamp holder

G24d-2

Suitable for surface mounting

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Suitable for number of lamps

1

Colour housing

Black, Silver, White

Connection type

Screwed terminal

Material cover

Glass opal

Voltage type

AC/DC

Type of control gear

Low-loss ballast inductive

Nominal voltage

230 V

With control gear

Yes

Lamp type

Compact fluorescent lamp

Dimming depending on control gear

Yes

Power factor

1

Beam angle

Open beam/diffuse

Height/depth

80 mm

Length

95 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Material housing

Aluminium

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Light sharing

Symmetric

Light output

Direct

Degree of protection (IP)

IP44

Protection class

I

Suitable for lamp power

18 W

Max. system power

18 W

No dim function

Yes

Width

280 mm

Height

< 700 mm

Surface protection housing

Lacquered

Exchangeable control gear

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Shape

Eckig
