Data sheet

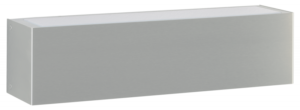

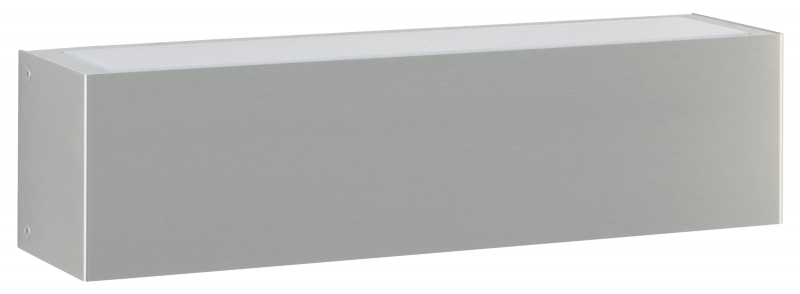

Wall lamp Stainless steel Product Image Article 696366

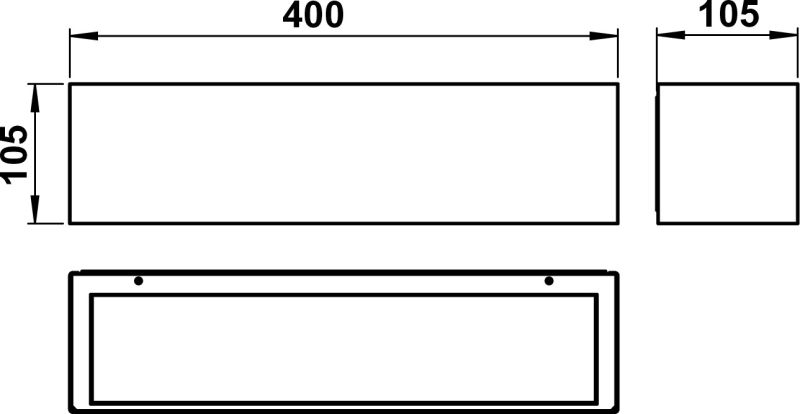

Wall lamp Stainless steel Dimensioned drawing Article 696366
Wall lamp Stainless steel Product Image Article 696366
Wall lamp Stainless steel Dimensioned drawing Article 696366
Article number 696366

Wall lamp

type ..6366

€627,00

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

Albert wall lamp 696366
with 2-sided light emission, made of stainless steel with opal glass with mounting plate.2 x LED 9,6 W, warm white 3000 K, each 720 : stainless steel protection class IP 44 – protection class : 400 x 105 x 105 mm

Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
19.2 W
Rated luminous flux according to IEC 62722-2-1
1440 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction
download PDF 29.54 KB
Dimensioned drawing
download PDF 90.23 KB
Light distribution curve - Eulumdat/LDT
download LDT 20.68 KB
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
90220379 - G 379, milk flashed glass show

Additional information

Weight 3,50 kg
Conductor cross section

2.5 mm²
Power factor

0.9
Voltage type

AC/DC
With control gear

Yes
Lamp type

LED exchangeable
Suitable for number of lamps

2
With light source

Yes
Material housing

Stainless steel
Colour housing

Stainless steel
Material cover

Glass opal
Colour rendering index CRI

80-89
Type of wiring

Ending
Dimming depending on control gear

Yes
Suitable for surface mounting

Yes
Light sharing

Symmetric
Height/depth

105 mm
Length

105 mm
Energy efficiency class of the provided exchangeable built-in lamp

E
Width

400 mm
No dim function

Yes
Nominal voltage

230 V
Number of poles

3
Max. number of luminaires per miniature circuit breaker B16

20
Colour consistency (McAdam ellipse)

SDCM3
Photobiological safety according to EN 62471

RG1
Degree of protection (IP)

IP44
Protection class

I
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Exchangeable control gear

Yes
Highest energy efficiency class of the exchangeable lamp

A++
Lowest energy efficiency class of the exchangeable lamp

E
Rated luminous flux according to IEC 62722-2-1

1440 lm
Colour of light

White
Colour temperature

3000 K
Style

Edelstahl, Modern
Mounting Type

Wand
Light type

Wandleuchte
Max. system power

19.2 W
Light output

Direct
Max. number of luminaires per miniature circuit breaker C16

30
Height

< 700 mm
Type of control gear

LED operating device voltage-controlled
Suitable for lamp power

19.2 W
Light output

1-seitig
Connection type

Screwed terminal
Unified Glare Ratio (UGR)

1
Suitable for wall mounting

Yes
Stroboscope effect value SVM

0.4
Surface protection housing

Untreated
Flickering value Pst LM

1
Beam angle

Open beam/diffuse
Shape

Eckig
