Article number 696164

Wall light

type ..6164

204,20

Description

Albert wall lamp 696164
with 2-sided light emission, made of stainless steel with opal glass, mounting plate made of cast aluminium. Equipped for 1 x QT 14 60W, socket G9.protection IP 44 – protection class : 105 x 150 x 105 mm

Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
HV halogen lamp
Lamp holder
G9
Suitable for lamp power
1 - 60 W
Material cover
Glass opal
Documents and files
Assembly instruction

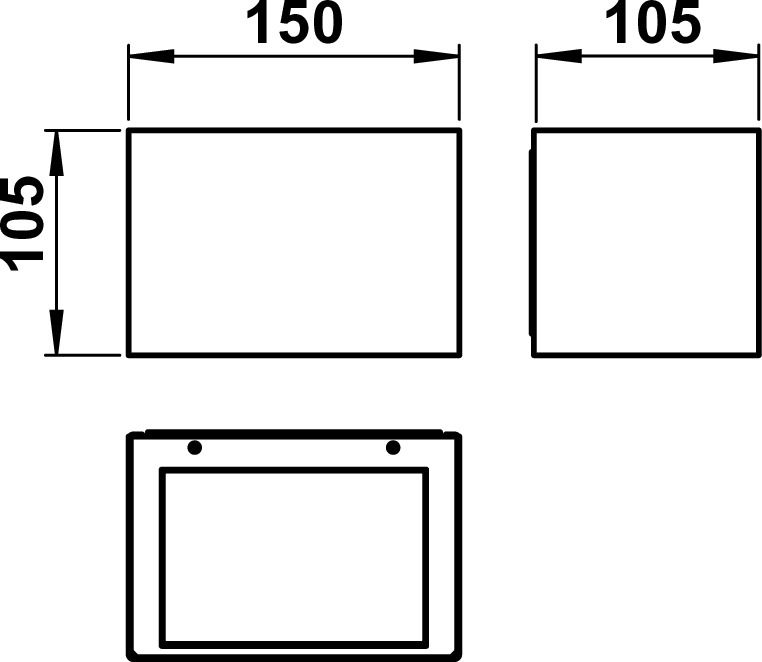

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90220377 - G 377, milk flashed glass show
Accessories
90750103 - LED Pin show

Additional information

Weight 1,40 kg
Colour housing

Stainless steel

Lamp holder

G9

Degree of protection (IP)

IP44

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Material cover

Glass opal

Type of control gear

Not required

Material housing

Stainless steel

Lamp type

HV halogen lamp

Voltage type

AC/DC

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Dimming depending on control gear

Yes

Power factor

1

Width

150 mm

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct

Nominal voltage

230 V

Suitable for number of lamps

1

Height/depth

105 mm

Length

105 mm

Light output

1-seitig

Height

< 700 mm

Mounting Type

Wand

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Suitable for lamp power

1 – 60 W

Style

Edelstahl, Modern

Type of wiring

Ending

Light type

Wandleuchte

Suitable for wall mounting

Yes

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

No dim function

Yes

Surface protection housing

Untreated

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. system power

60 W

Protection class

I

Number of poles

3

Shape

Eckig
