Article number 696364

Wall lamp

type ..6364

344,90

Description

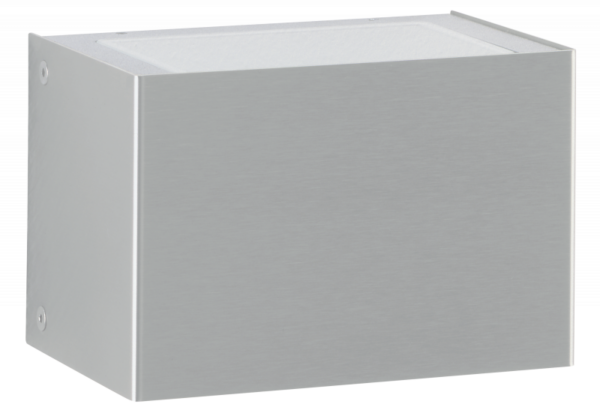

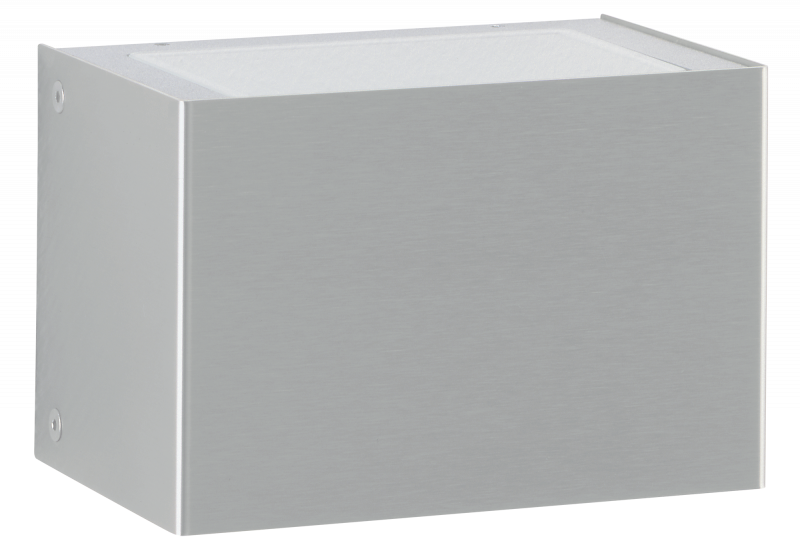

Albert wall lamp 696364
with 2-sided light emission, made of stainless steel with opal glass with mounting plate.2 x LED 5,8 W, warm white 3000 K, 430 each : stainless steel protection class IP 44 – protection class : 150 x 105 x 105 mm

Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
11.6 W
Rated luminous flux according to IEC 62722-2-1
860 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

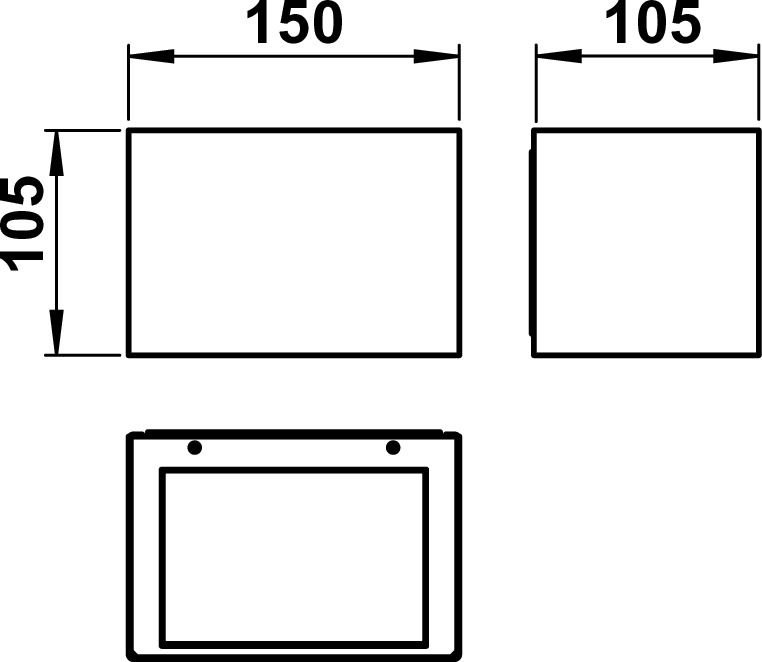

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90220377 - G 377, milk flashed glass show

Additional information

Weight 1,80 kg
Power factor

0.9

Dimming depending on control gear

Yes

With control gear

Yes

Lamp type

LED exchangeable

Suitable for number of lamps

2

With light source

Yes

Material housing

Stainless steel

Colour housing

Stainless steel

Material cover

Glass opal

Energy efficiency class of the provided exchangeable built-in lamp

E

Suitable for surface mounting

Yes

Light sharing

Symmetric

Height/depth

105 mm

Width

150 mm

Length

105 mm

No dim function

Yes

Nominal voltage

230 V

Colour rendering index CRI

80-89

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Voltage type

AC/DC

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Exchangeable control gear

Yes

Suitable for wall mounting

Yes

Surface protection housing

Untreated

Light output

Direct

Rated luminous flux according to IEC 62722-2-1

860 lm

Colour of light

White

Colour temperature

3000 K

Style

Edelstahl, Modern

Mounting Type

Wand

Light type

Wandleuchte

Max. system power

11.6 W

Highest energy efficiency class of the exchangeable lamp

A++

Unified Glare Ratio (UGR)

1

Colour consistency (McAdam ellipse)

SDCM3

Connection type

Screwed terminal

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Photobiological safety according to EN 62471

RG1

Height

< 700 mm

Type of control gear

LED operating device voltage-controlled

Suitable for lamp power

11.6 W

Light output

1-seitig

Stroboscope effect value SVM

0.4

Beam angle

Open beam/diffuse

Flickering value Pst LM

1

Shape

Eckig
